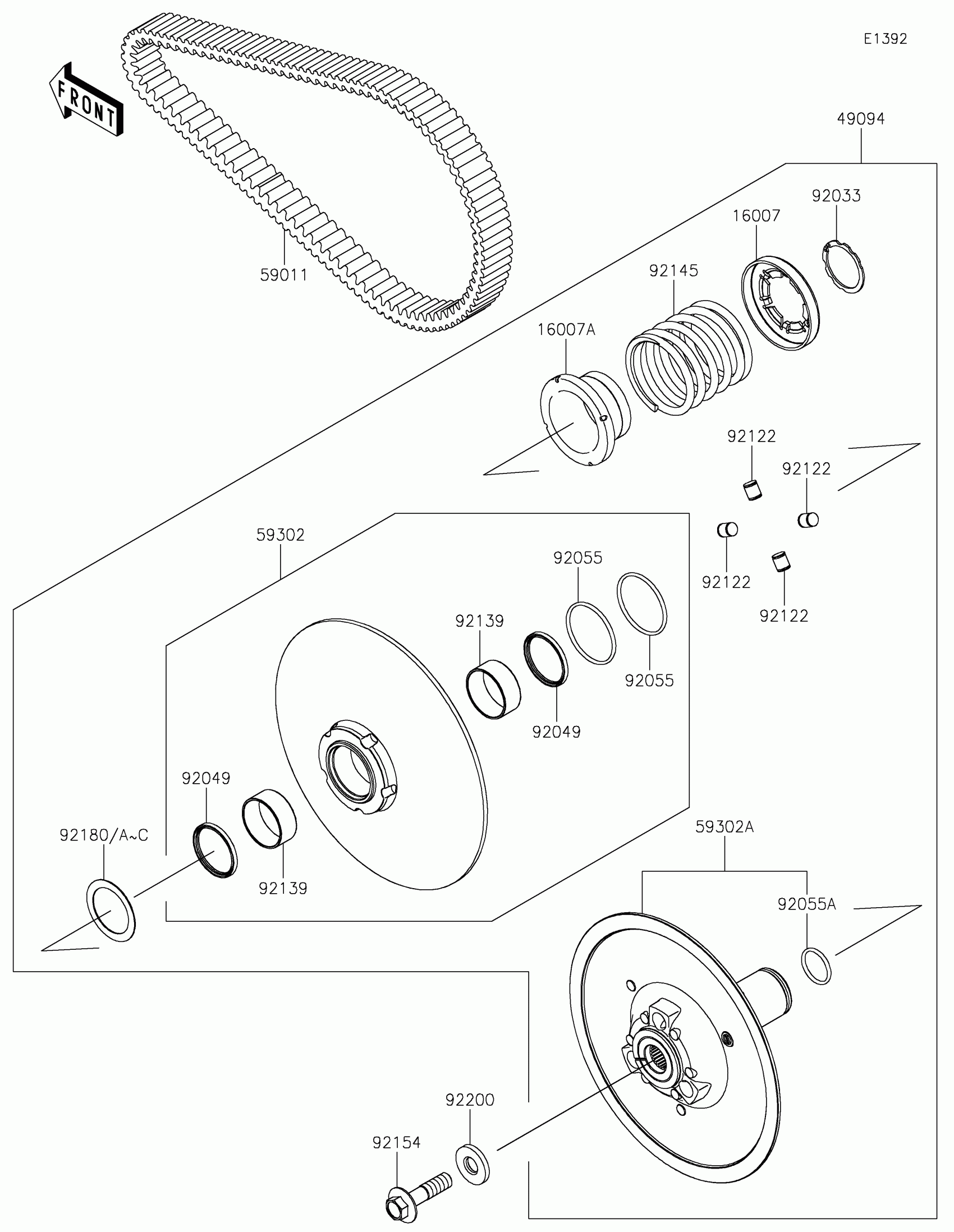

Kawasaki RIDGE® XR DELUXE HVAC Driven Converter/Drive Belt Diagram

Description

Price

16007

SEAT-SPRING,FIXED

16007-0755

$14.56

16007A

SEAT-SPRING,MOVABLE

16007-0786

$35.90

49094

CONVERTER-ASSY-DRIVEN

49094-0116

$798.54

59011

BELT,CVT

59011-0065

$233.82

59302

SHEAVE-COMP,DRIVEN MOVABLE

59302-0116

$327.99

59302A

SHEAVE-COMP,DRIVEN FIXED

59302-0121

$523.80

92033

RING-SNAP,41.5MM

92033-0801

$2.10

92049

SEAL-OIL,GD45X52X4 V1

92049-0821

$10.11

92055

RING-O,54.4X3.1

92055-0924

$3.35

92055A

RING-O,29X3.1

92055-0926

$3.12

92122

ROLLER

92122-0571

$21.97

92139

BUSHING

92139-0936

$25.38

92145

SPRING

92145-1856

$81.65

92154

BOLT,14X55

92154-3920

$16.89

92180

SHIM,T=1.0

92180-1661

Unavailable

92180A

SHIM,T=1.2

92180-1662

Unavailable

92180B

SHIM,T=1.6

92180-1663

Unavailable

92180C

SHIM,T=0.3

92180-1667

Unavailable

92200

WASHER

92200-2389

$9.19
