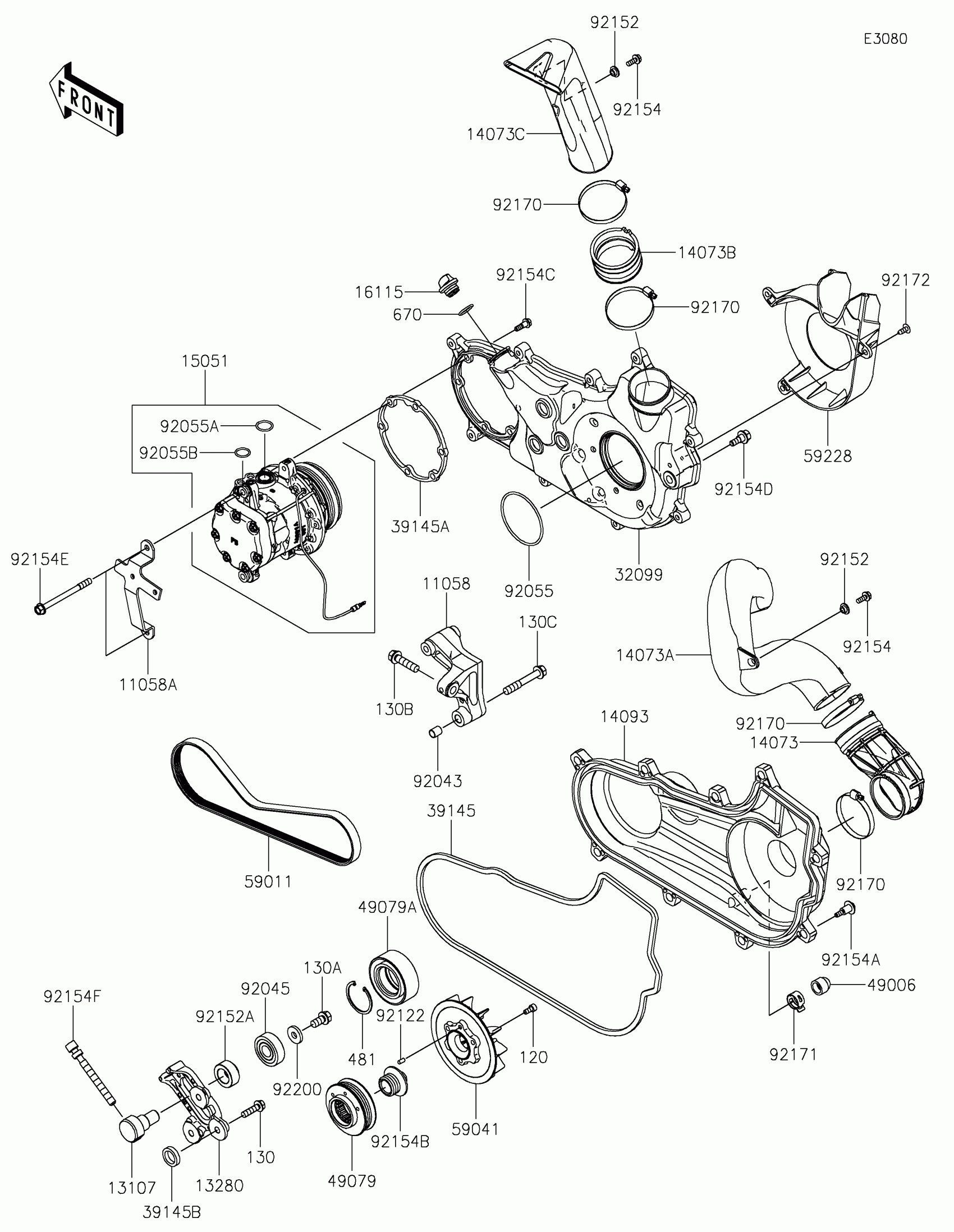

Kawasaki RIDGE® XR DELUXE HVAC Compressor Diagram

#

Description
Price

11058

BRACKET,COMPRESSOR MOUNT

11058-0314

$118.03

11058A

BRACKET,HOSE

11058-0315

$20.89

13107

SHAFT

13107-0976

$74.14

13280

HOLDER

13280-1349

$85.37

14073

DUCT,JOINT INTAKE

14073-1896

$11.40

14073A

DUCT,INTAKE

14073-1897

$36.38

14073B

DUCT,JOINT EXHAUST

14073-1898

$4.35

14073C

DUCT,EXHAUST

14073-1899

$58.70

14093

COVER,FAN

14093-1388

$126.90

15051

COMPRESSOR-AIR

15051-0003

$1,816.02

16115

CAP-OIL FILLER

16115-1053

$12.20

32099

CASE,FAN

32099-0826

$251.12

39145

TRIM-SEAL

39145-0751

$48.46

39145A

TRIM-SEAL

39145-0752

$17.87

39145B

TRIM-SEAL

39145-0789

$2.27

49006

BOOT,DRAIN

49006-0560

$6.57

49079

PULLEY-BELT

49079-0030

$153.66

49079A

PULLEY-BELT

49079-0032

$140.88

59011

BELT,COMPRESSOR

59011-0058

$14.62

59041

FAN

59041-0036

$105.82

59228

LOUVER

59228-0004

$52.56

92043

PIN,10.1X12X14

92043-4009

$6.22

92045

BEARING-BALL,17X47X14

92045-3742

$21.84

92055

RING-O,77.1X3.1

92055-1740

$6.21

92055A

RING-O

92055-1780

$4.29

92055B

RING-O

92055-1781

$4.29

92122

ROLLER

92122-0569

$0.74

92152

COLLAR,6.5X10X5.6

92152-0445

$4.92

92152A

COLLAR

92152-2927

$32.87

92154

BOLT,FLANGED,6X16

92154-0887

$1.63

92154A

BOLT,CVT COVER

92154-1522

$3.26

92154B

BOLT,PULLEY

92154-7011

$95.72

92154C

BOLT,FAN CASE

92154-7012

$2.71

92154D

BOLT,FAN CASE

92154-7013

$3.76

92154E

BOLT,8X97

92154-7014

$2.92

92154F

BOLT,TENSION ADJUST

92154-7114

$37.28

92170

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-0329

$8.89

92172

SCREW,6X16

92172-0284

$1.34

92200

WASHER,10.5X26X4

92200-3798

$4.65

120

BOLT-SOCKET,6X14

120CA0614

$4.10

130

BOLT-FLANGED,8X30

130BA0830

$1.98

130A

BOLT-FLANGED,10X20

130BA1020

$3.35

130B

BOLT-FLANGED,10X40

130CA1040

$2.83

130C

BOLT-FLANGED,10X65

130CA1065

$2.39

481

CIRCLIP-TYPE-C,47MM

481J4700

$4.22

670

O RING,20MM

670B2020

$1.22
