Description

Price

11061

GASKET,INTAKE MANIFOLD

11061-1470

$11.60

13272

PLATE,INTAKE MANIFOLD

13272-4239

$24.17

14073

DUCT,INTAKE MANIFOLD

14073-1914

$22.24

16073

INSULATOR

16073-0129

$6.00

16163

THROTTLE-ASSY

16163-1306

$578.27

21176

SENSOR,PRESSURE

21176-0906

$222.28

49033

NOZZLE-INJECTION

49033-0586

$83.76

49056

PIPE-INJECTION

49056-0568

$21.15

59076

MANIFOLD-INTAKE

59076-0044

$552.52

92005

FITTING

92005-0125

$11.34

92037

CLAMP,7.8MM

92037-2116

$1.39

92055

RING-O,INJECTION NOZZLE

92055-0937

$9.93

92153

BOLT,FLANGED,5MM

92153-0361

$4.18

92161

DAMPER

92161-0673

$5.54

92161A

DAMPER

92161-2517

$90.94

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92173

CLAMP,74MM

92173-2219

$6.28

92192

TUBE,INTAKE MANIFOLD

92192-2652

$5.78

120

BOLT-SOCKET,6X35

120CA0635

$2.06

130

BOLT-FLANGED,8X25

130BA0825

$2.95

670

O RING,8MM

670E1508

$1.82

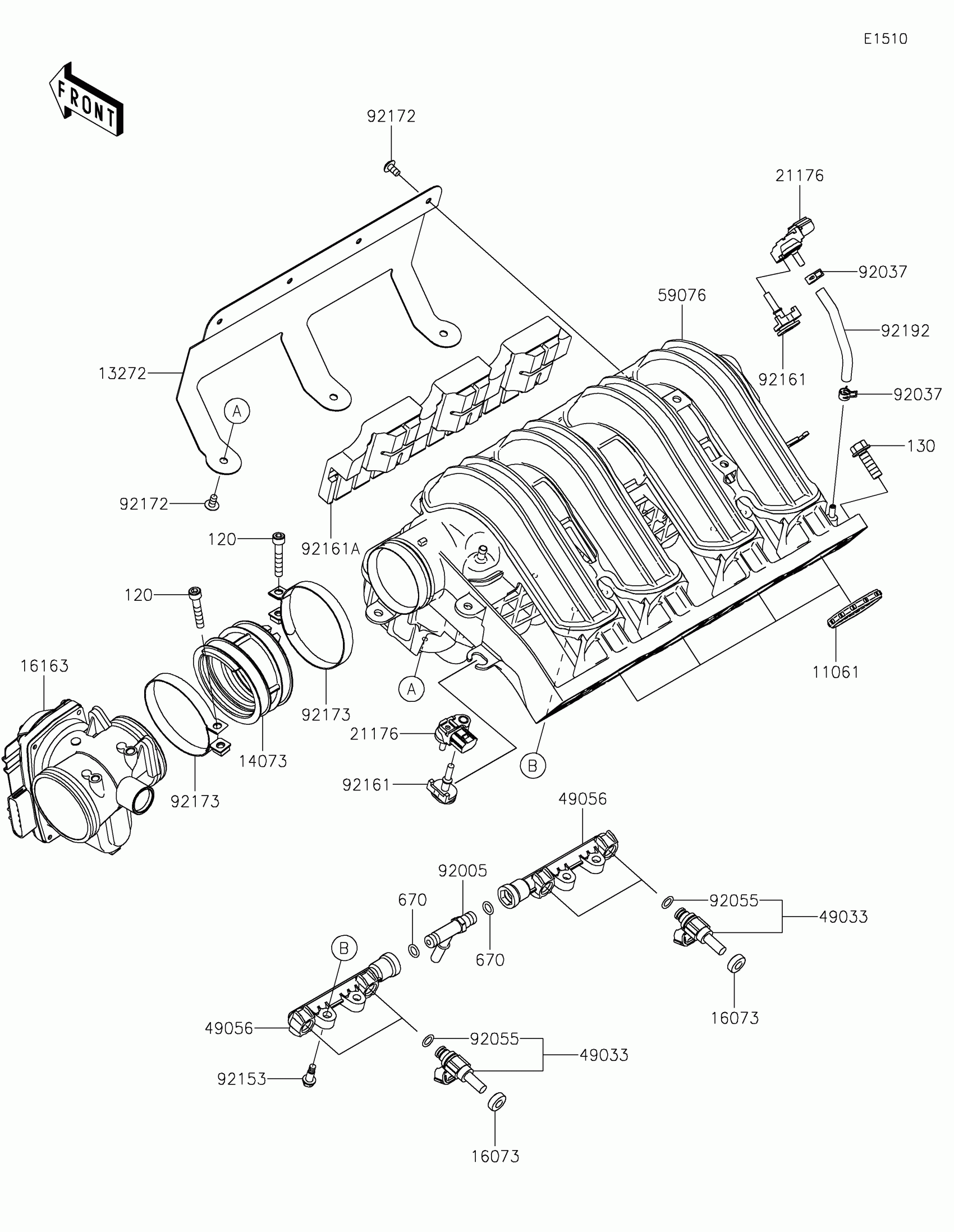

Kawasaki RIDGE XR CREW Throttle Diagram

GASKET,INTAKE MANIFOLD

PLATE,INTAKE MANIFOLD

DUCT,INTAKE MANIFOLD

INSULATOR

THROTTLE-ASSY

SENSOR,PRESSURE

NOZZLE-INJECTION

PIPE-INJECTION

MANIFOLD-INTAKE

FITTING

CLAMP,7.8MM

RING-O,INJECTION NOZZLE

BOLT,FLANGED,5MM

DAMPER

DAMPER

SCREW,TAPPING,5X10

CLAMP,74MM

TUBE,INTAKE MANIFOLD

BOLT-SOCKET,6X35

BOLT-FLANGED,8X25

O RING,8MM
