2025 Kawasaki Ridge XR Crew Steering Shaft Diagram

← All diagrams

Find the part on the Steering Shaft diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

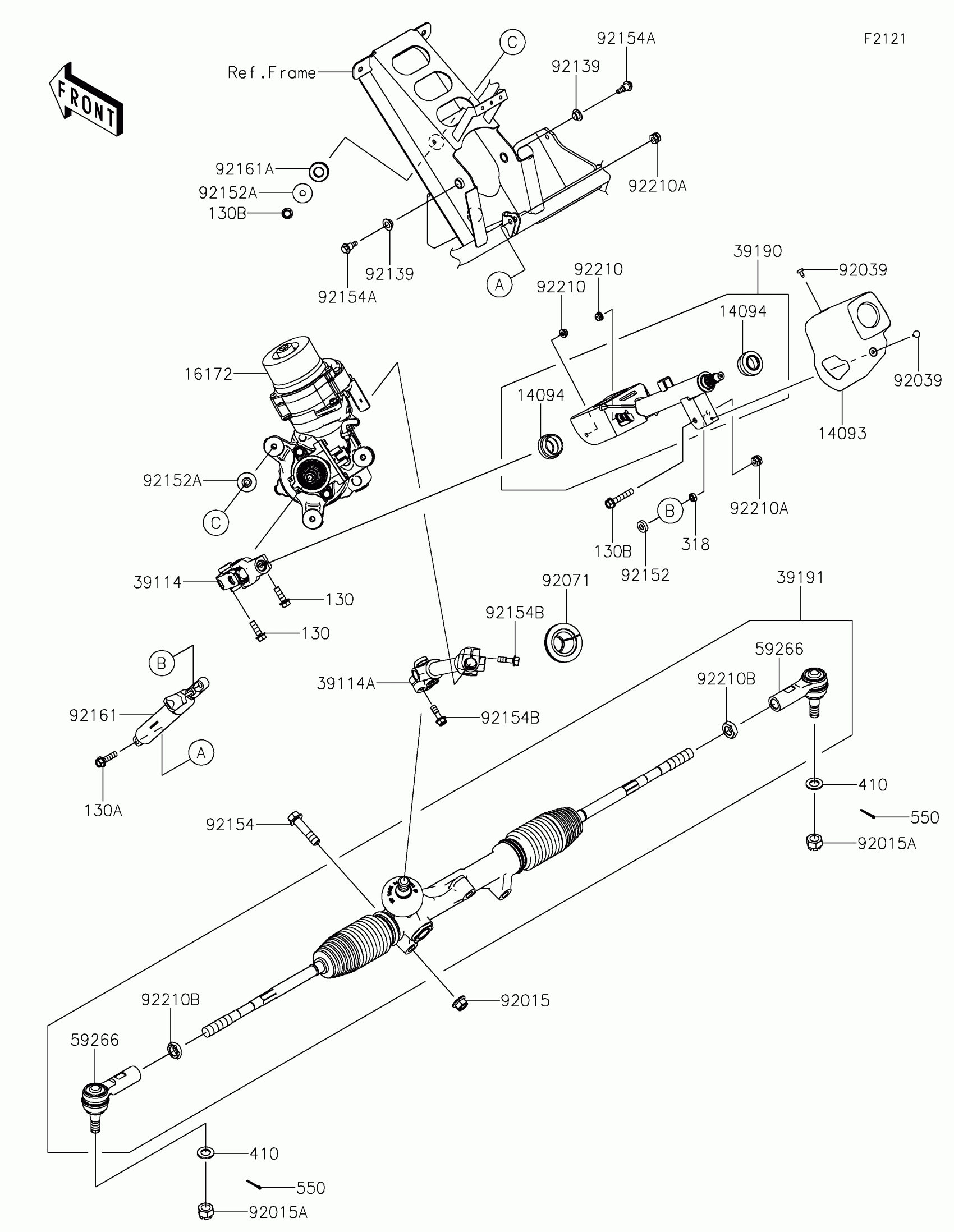

2025 Kawasaki Ridge XR Crew Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,STEERING COLUMN

14093-1437

1
Out of stock

14094

COVER,STEERING SHAFT

14094-0322

1
Out of stock

16172

ACTUATOR,EPS

16172-0562

1
Out of stock

39114

SHAFT-COMP-STRG,UPP

39114-0048

1
Out of stock

39114A

SHAFT-COMP-STRG,LWR

39114-0050

1
Out of stock

39190

SHAFT-ASSY-STEERING

39190-0021

1
Out of stock

39191

GEAR-ASSY-STEERING

39191-0047

1
Out of stock

59266

JOINT-BALL

59266-0774

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92015A

NUT,CASTLE,14MM

92015-1841

1
Out of stock

92039

RIVET

92039-0046

1
Out of stock

92071

GROMMET

92071-0825

1
Out of stock

92139

BUSHING

92139-0230

1
Out of stock

92152

COLLAR,8.2X18X5

92152-1848

1
Out of stock

92152A

COLLAR,8.5X30X10.6

92152-2149

1
Out of stock

92154

BOLT,FLANGED,12X50

92154-1008

1
Out of stock

92154A

BOLT,6X21.5

92154-1320

1
Out of stock

92154B

BOLT

92154-4224

1
Out of stock

92161

DAMPER,GAS SPRING

92161-1825

1

$46.43

In stock

92161A

DAMPER,ACTUATOR

92161-7517

1

$2.66

In stock

92210

NUT,LOCK,FLANGED,6MM

92210-0303

1
Out of stock

92210A

NUT,HARD LOCK,8MM

92210-0934

1
Out of stock

92210B

NUT

92210-1960

1
Out of stock

130

BOLT-FLANGED,8X25

130CA0825

1

$1.31

In stock

130A

BOLT-FLANGED,8X30

130CA0830

1

$1.00

In stock

130B

BOLT-FLANGED,8X45

130CA0845

1

$1.10

In stock

318

NUT-HEX-SMALL,8MM

318BA0800

1
Out of stock

410

WASHER-PLAIN-SMALL,14MM

410AA1400

1
Out of stock

550

PIN-COTTER,3.0X25

550AA3025

1
Out of stock
