2025 Kawasaki Ridge XR Crew Front Suspension Diagram

← All diagrams

Find the part on the Front Suspension diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

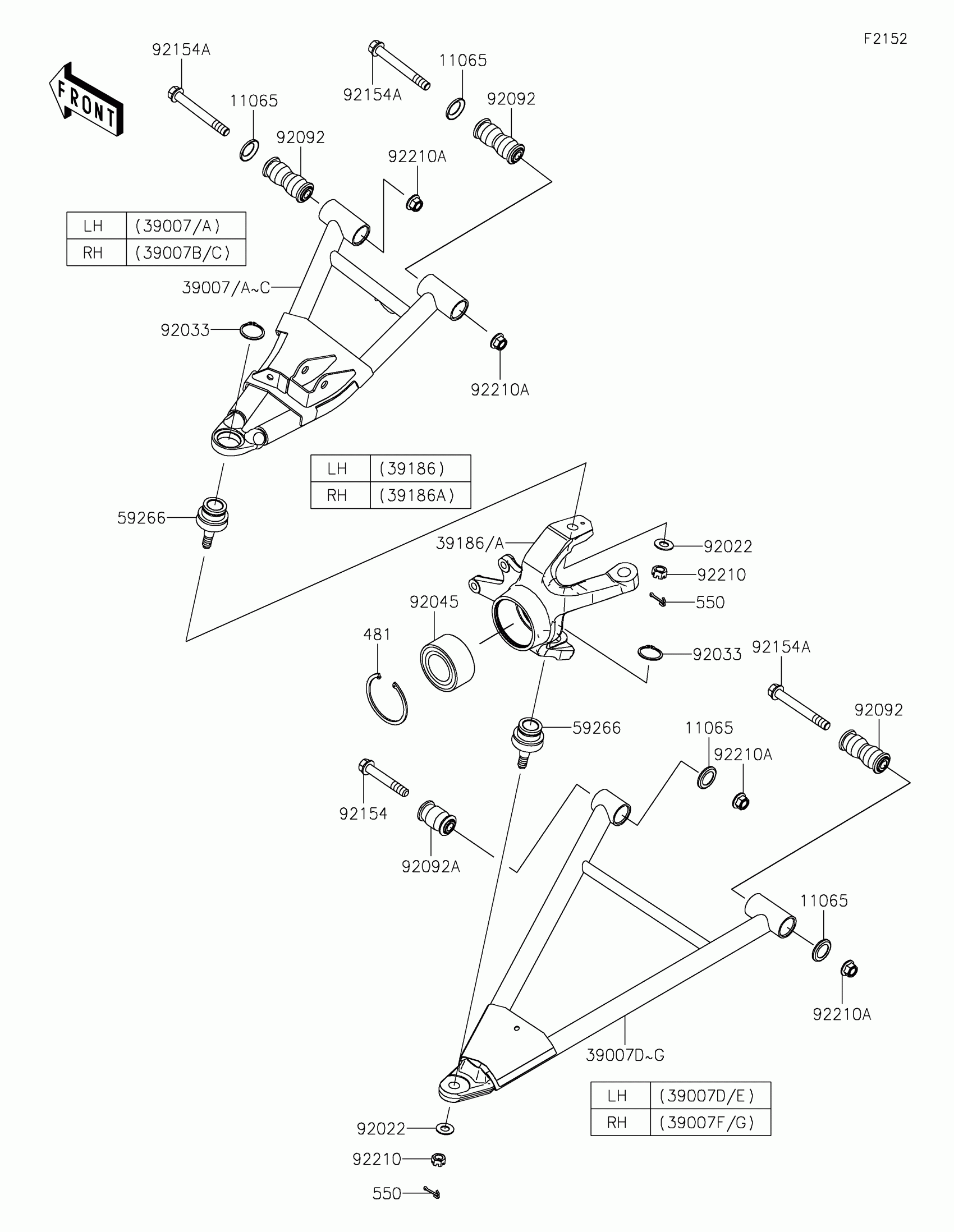

2025 Kawasaki Ridge XR Crew Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,ARM

11065-0838

1
Out of stock

39007

ARM-SUSP,FR,UPP,LH,P.C.P.RED

39007-0487-57C

1
Out of stock

39007A

ARM-SUSP,FR,UPP,LH,P.L.GREEN

39007-0487-66C

1
Out of stock

39007B

ARM-SUSP,FR,UPP,RH,P.C.P.RED

39007-0488-57C

1
Out of stock

39007C

ARM-SUSP,FR,UPP,RH,P.L.GREEN

39007-0488-66C

1
Out of stock

39007D

ARM-SUSP,FR,LWR,LH,P.C.P.RED

39007-0489-57C

1
Out of stock

39007E

ARM-SUSP,FR,LWR,LH,P.L.GREEN

39007-0489-66C

1
Out of stock

39007F

ARM-SUSP,FR,LWR,RH,P.C.P.RED

39007-0490-57C

1
Out of stock

39007G

ARM-SUSP,FR,LWR,RH,P.L.GREEN

39007-0490-66C

1
Out of stock

39186

KNUCKLE,FR,LH

39186-0335

1
Out of stock

39186A

KNUCKLE,FR,RH

39186-0336

1
Out of stock

59266

JOINT-BALL

59266-0711

1
Out of stock

92022

WASHER

92022-1831

1
Out of stock

92033

RING-SNAP,C-TYPE,32MM

92033-1262

1
Out of stock

92045

BEARING-BALL,40X74X36

92045-0919

1
Out of stock

92092

BUSHING-RUBBER,12X20X78

92092-0028

1
Out of stock

92092A

BUSHING-RUBBER

92092-0555

1
Out of stock

92154

BOLT,FLANGED,12X76.5

92154-7079

1
Out of stock

92154A

BOLT,FLANGED,12X100

92154-7081

1
Out of stock

92210

NUT,CASTLE,12MM

92210-0395

1
Out of stock

92210A

NUT,LOCK,FLANGED,12MM

92210-1931

1
Out of stock

481

CIRCLIP-TYPE-C

481J7500

1
Out of stock

550

PIN-COTTER,3.0X25

550AA3025

1
Out of stock
