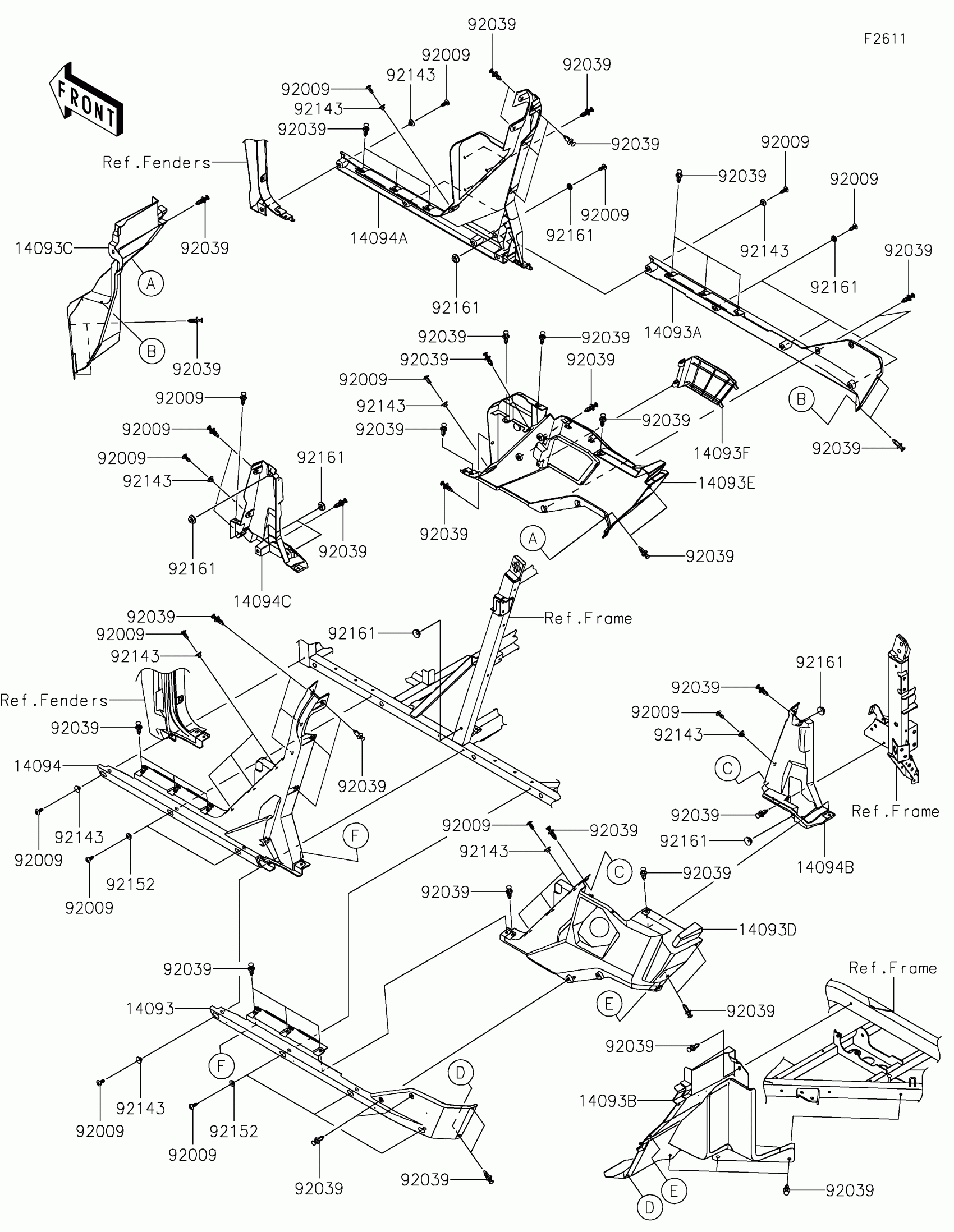

Kawasaki RIDGE XR CREW Side Covers Diagram

Description

Price

14093

COVER,SIDE GUARD,LH,LWR,BLACK

14093-1331-6Z

$22.41

14093A

COVER,SIDE GUARD,RH,LWR,BLACK

14093-1332-6Z

$22.41

14093B

COVER,RR MUDGUARD,LH

14093-1335

$22.14

14093C

COVER,RR MUDGUARD,RH

14093-1336

$21.64

14093D

COVER,SIDE,LH,LWR

14093-1343

$35.67

14093E

COVER,SIDE,RH,LWR

14093-1344

$35.67

14093F

COVER,BATTERY

14093-1345

$9.53

14094

COVER,B-PILLAR,LH

14094-0166

$43.56

14094A

COVER,B-PILLAR,RH

14094-0167

$43.56

14094B

COVER,C-PILLAR,LH

14094-0225

$53.79

14094C

COVER,C-PILLAR,RH

14094-0226

$54.73

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92039

RIVET

92039-0776

$0.80

92143

COLLAR

92143-1057

$3.81

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92161

DAMPER

92161-1531

$2.11
