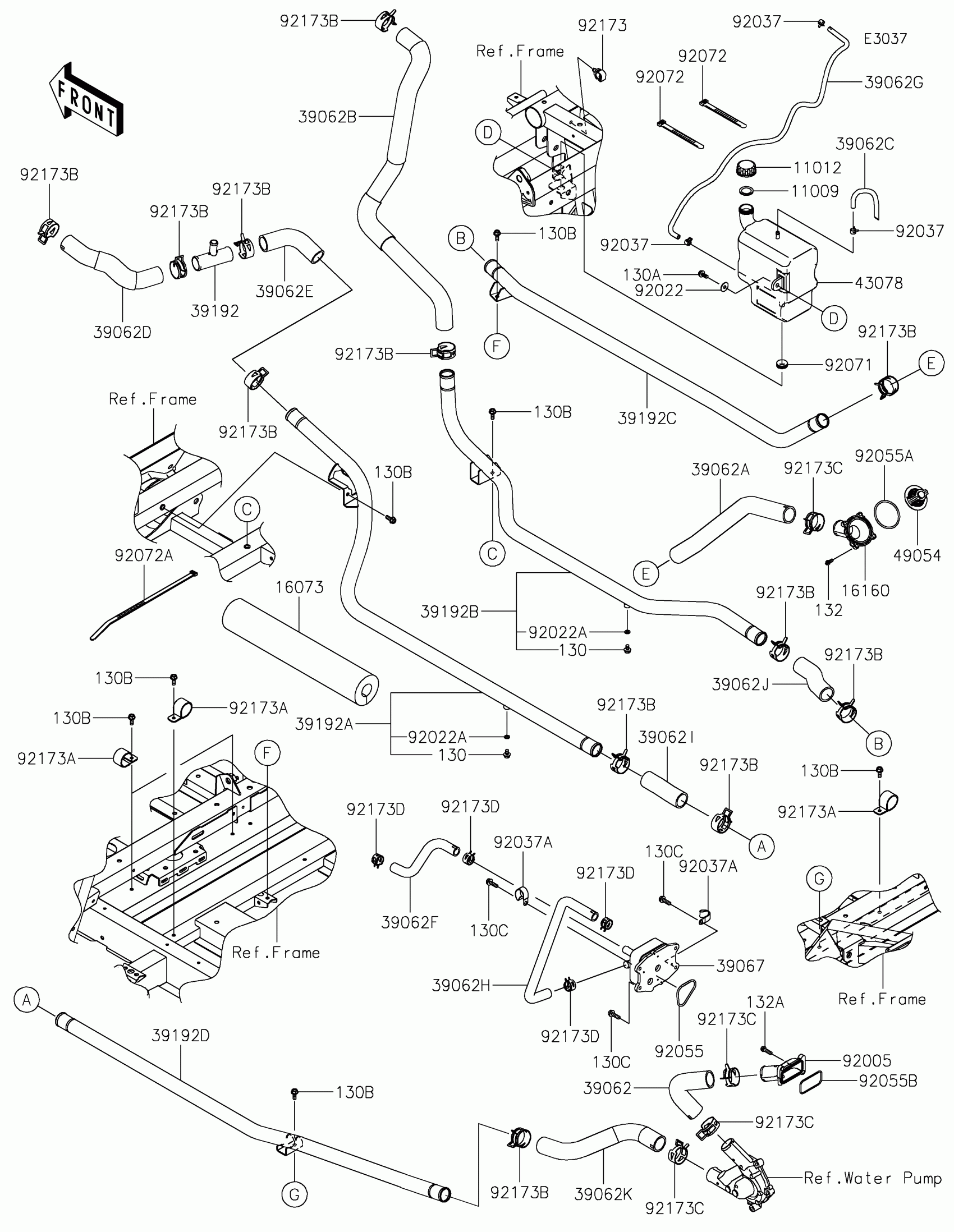

Kawasaki RIDGE® XR CREW LIMITED HVAC Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

16073

INSULATOR

16073-0974

$203.11

16160

BODY,THERMOSTAT

16160-0835

$40.40

39062

HOSE-COOLING,W/PUMP-FITTING

39062-0953

$45.36

39062A

HOSE-COOLING,ENGINE-PIPE RH

39062-0954

$45.36

39062B

HOSE-COOLING,PIPE RH-RADIATOR

39062-0958

$79.88

39062C

HOSE-COOLING,OVER FLOW

39062-0959

$90.71

39062D

HOSE-COOLING,RADIATOR-FITTING

39062-0964

$33.93

39062E

HOSE-COOLING,FITTING-PIPE LH

39062-0965

$16.26

39062F

HOSE-COOLING,O/C-PIPE

39062-0966

$15.43

39062G

HOSE-COOLING,RAD-RESERVOIR

39062-0969

$11.52

39062H

HOSE-COOLING,HEAD-OIL COOLER

39062-0972

$22.48

39062I

HOSE-COOLING,PIPE JOINT(L/H)

39062-1968

$13.50

39062J

HOSE-COOLING,PIPE JOINT(R/H)

39062-1969

$18.73

39062K

HOSE-COOLING,PIPE(L/H WATER)

39062-1996

$35.52

39067

COOLER-OIL

39067-0023

$351.78

39192

PIPE-WATER

39192-0707

$9.30

39192A

PIPE-WATER,L/H FRONT

39192-0737

$162.40

39192B

PIPE-WATER,R/H FRONT

39192-0739

$165.78

39192C

PIPE-WATER,R/H REAR

39192-0740

$132.75

39192D

PIPE-WATER,L/H REAR

39192-0751

$48.53

43078

RESERVOIR

43078-0617

$102.70

49054

THERMOSTAT

49054-0014

$37.06

92005

FITTING

92005-1443

$46.64

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP

92037-1993

$5.52

92055

RING-O,46.4X3.1

92055-0752

$4.41

92055A

RING-O,53.5X2.6

92055-0831

$7.85

92055B

RING-O,FITTING

92055-0923

$6.45

92071

GROMMET

92071-1115

$5.46

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=292.1

92072-3509

Unavailable

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-1204

$3.86

92173B

CLAMP,28.6MM

92173-1205

$4.92

92173C

CLAMP,33.4MM

92173-1981

$5.31

92173D

CLAMP

92173-2285

$4.60

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

130B

BOLT-FLANGED,6X16

130BA0616

$1.20

130C

BOLT-FLANGED,6X20

130CA0620

$1.70

132

BOLT-FLANGED-SMALL,5X16

132BA0516

$1.90

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49
