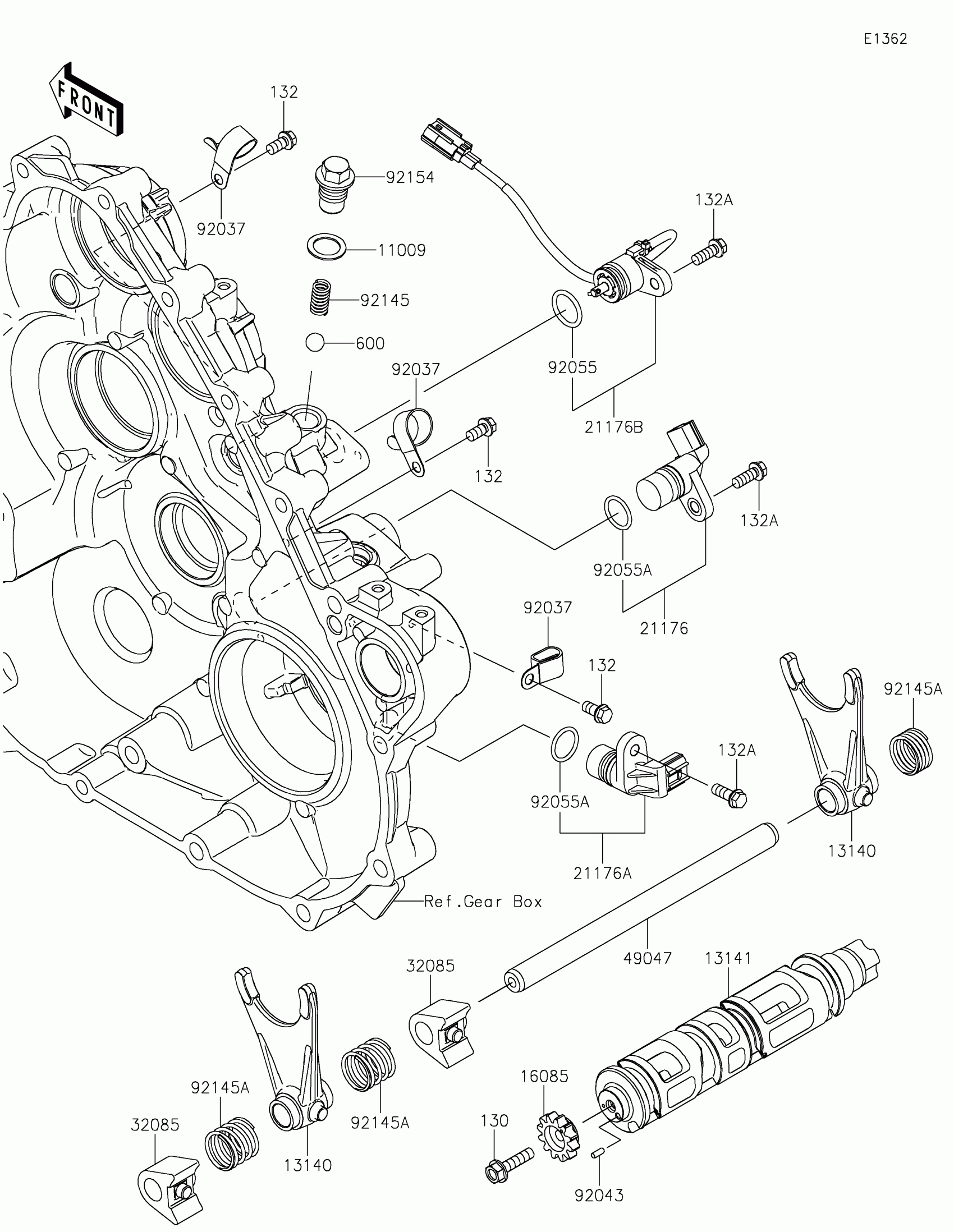

Kawasaki RIDGE® XR CREW LIMITED HVAC Gear Change Drum/Shift Fork(s) Diagram

Description

Price

11009

GASKET,15.5X22X1

11009-1008

$2.75

13140

FORK-SHIFT

13140-0693

$58.07

13141

DRUM-CHANGE

13141-0618

$265.88

16085

GEAR,12T

16085-0738

$95.93

21176

SENSOR,ROTATION

21176-0767

$66.76

21176A

SENSOR,SPEED

21176-0891

$82.37

21176B

SENSOR,GEAR POSITION

21176-1183

$171.47

32085

STOPPER

32085-0901

$84.40

49047

ROD-SHIFT

49047-0641

$74.55

92037

CLAMP

92037-1993

$4.18

92043

PIN,3X8

92043-1716

$0.60

92055

RING-O

92055-0917

$3.27

92055A

RING-O

92055-1639

$2.15

92145

SPRING

92145-1590

$2.74

92145A

SPRING

92145-2315

$2.75

92154

BOLT,CHANGE POSITION

92154-1366

$15.36

130

BOLT-FLANGED,6X25

130CA0625

$3.39

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

600

BALL-STEEL,13/32"

600A1300

$0.78
