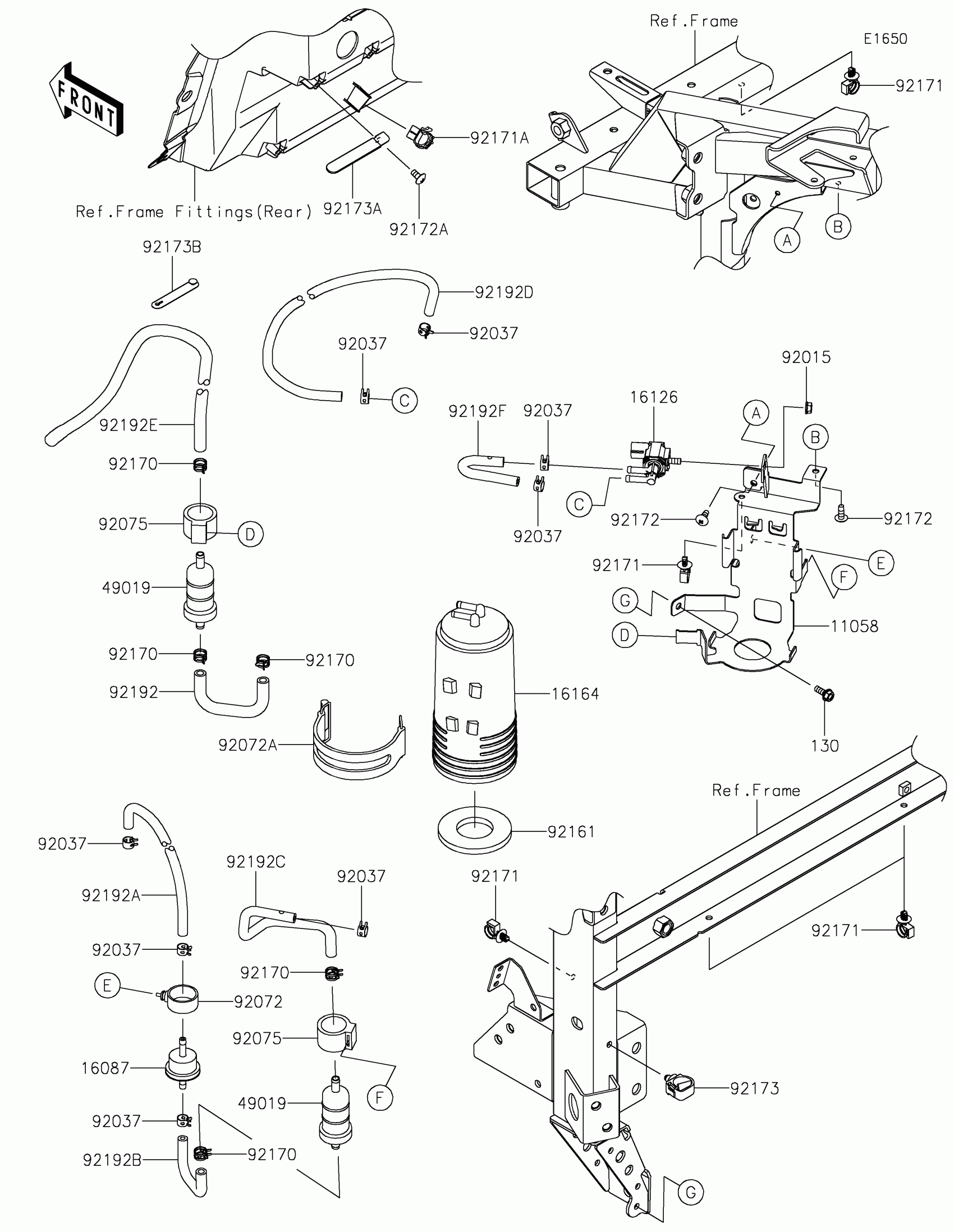

Kawasaki RIDGE® XR CREW LIMITED HVAC Fuel Evaporative System(CA) Diagram

Description

Price

11058

BRACKET

11058-2123

$41.34

16087

VALVE-CHECK

16087-0011

$38.71

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0016

$209.81

49019

FILTER-FUEL

49019-0032

$18.12

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP

92037-2113

$0.97

92072

BAND

92072-0852

$4.42

92072A

BAND,L=168

92072-1306

$10.44

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92161

DAMPER

92161-1843

$4.51

92170

CLAMP

92170-2082

$0.71

92171

CLAMP

92171-0453

$3.12

92171A

CLAMP,EDGE CLIP

92171-1722

$7.90

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92172A

SCREW,6X12

92172-0884

$3.49

92173

CLAMP

92173-0861

$2.11

92173A

CLAMP

92173-1056

$3.49

92173B

CLAMP

92173-2199

$1.32

92192

TUBE,FILTER-CANISTER

92192-1665

$3.37

92192A

TUBE,TANK-VALVE CHECK

92192-2653

$71.12

92192B

TUBE,VALVE CHECK-FILTER AIR

92192-2654

$26.00

92192C

TUBE,FILTER AIR-CANISTER

92192-2655

$38.65

92192D

TUBE,PURGE VALVE-IN MANIFOLD

92192-2657

$72.85

92192E

TUBE,FILTER AIR-OUTSIDE

92192-2658

$14.86

92192F

TUBE,CANISTER-PURGE VALVE

92192-2798

$20.49

130

BOLT-FLANGED,6X16

130BA0616

$0.97
