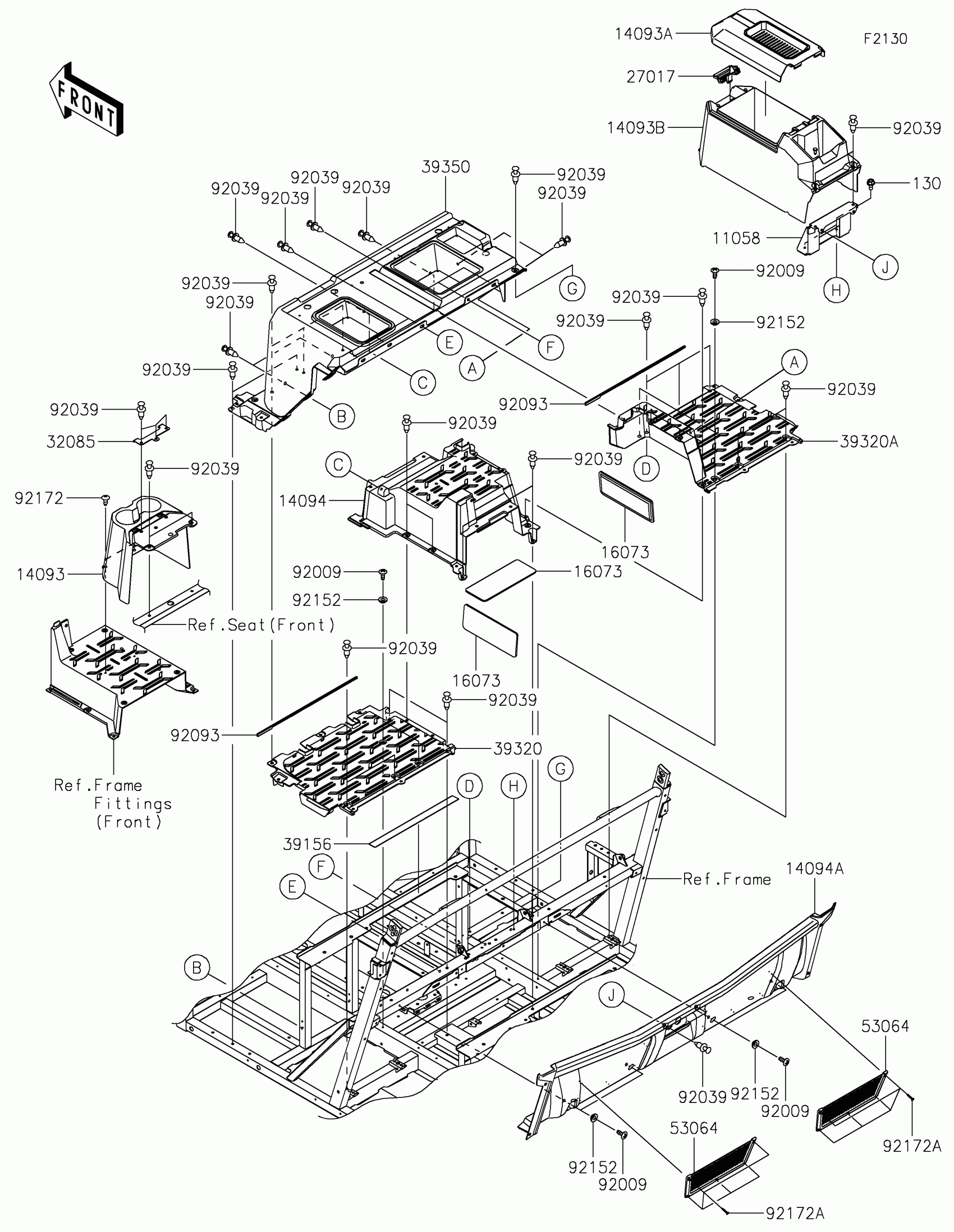

Kawasaki RIDGE® XR CREW LIMITED HVAC Frame Fittings(Middle) Diagram

Description

Price

11058

BRACKET

11058-1819

$31.51

14093

COVER,CNT CONSOLE,BOTTOM

14093-1419

$26.79

14093A

COVER,CNT CONSOLE,TOP

14093-1420

$17.64

14093B

COVER,CENTER CONSOLE,FR

14093-1534

$63.47

14094

COVER,MID CENTER TUNNEL

14094-0165

$161.88

14094A

COVER,FR SEAT BACK

14094-0233

$73.59

16073

INSULATOR,FR TUNNEL&BACK PANEL

16073-0947

$21.59

27017

LOCK,CENTER CONSOLE

27017-0571

$5.91

32085

STOPPER,CNT CONSOLE

32085-0933

$30.78

39156

PAD,420X30X1

39156-2930

$7.67

39320

FLOOR,MID,LH

39320-0010

$51.52

39320A

FLOOR,MID,RH

39320-0011

$68.58

39350

PANEL,UNDER SEAT

39350-0044

$88.29

53064

NET-CARGO

53064-0022

$23.23

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92039

RIVET

92039-0776

$1.19

92093

SEAL,3X5X500

92093-0819

$11.62

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,3X14

92172-1544

$0.47

130

BOLT-FLANGED,6X12

130BA0612

$1.72
