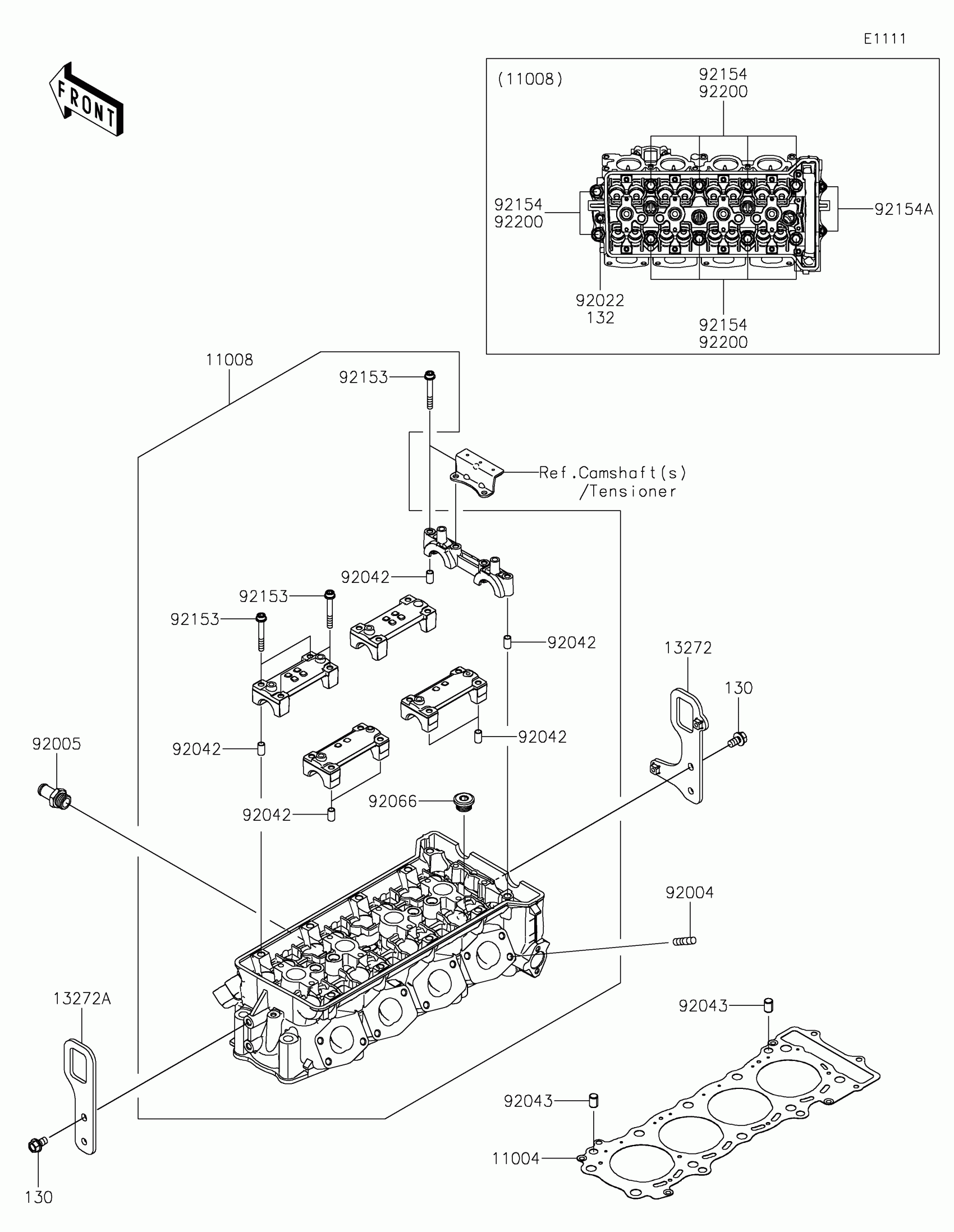

Kawasaki RIDGE® XR CREW LIMITED HVAC Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0814

$121.36

11008

HEAD-COMP-CYLINDER

11008-1556

$2,338.41

13272

PLATE,ENG HANGING RH

13272-7198

$15.26

13272A

PLATE,ENG HANGING LH

13272-7199

$7.91

92004

STUD,8X22

92004-0025

$3.87

92005

FITTING

92005-1446

$52.58

92022

WASHER,6.2X11X1

92022-304

$3.65

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8.2X10X14

92043-1264

$0.64

92066

PLUG,18X10

92066-0832

$12.90

92153

BOLT,SOCKET,6X45

92153-0656

$2.55

92154

BOLT,11X157

92154-3931

$15.78

92154A

BOLT,6X87

92154-7025

$4.77

92200

WASHER,11.2X18.2X1.8

92200-0940

$3.26

130

BOLT-FLANGED,8X14

130CA0814

$1.48

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71
