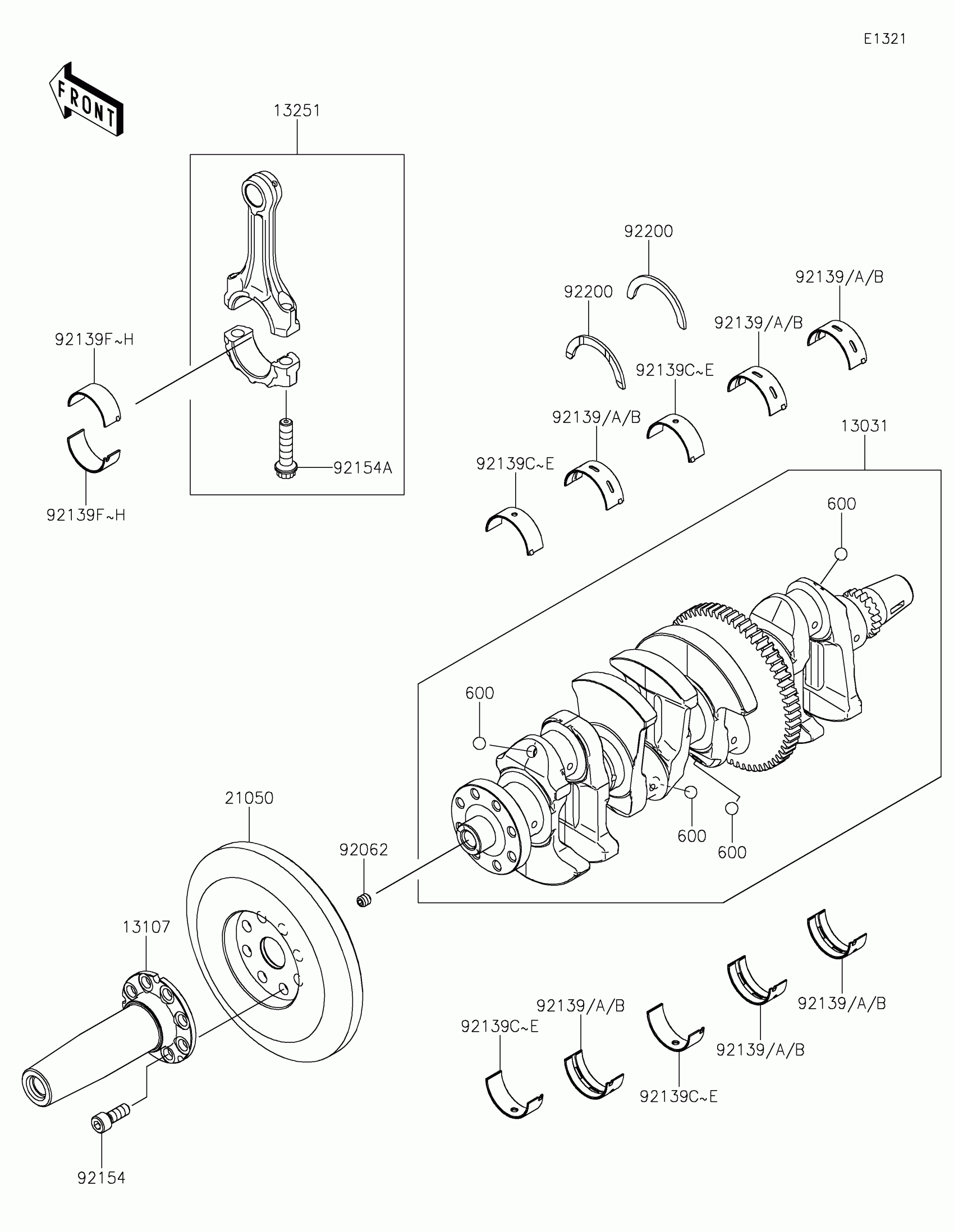

Kawasaki RIDGE® XR CREW LIMITED HVAC Crankshaft Diagram

Description

Price

13031

CRANKSHAFT-COMP

13031-1530

$1,595.86

13107

SHAFT,CONVERTER

13107-0997

$501.23

13251

ROD-ASSY-CONNECTING,H

13251-0751-HH

$173.36

21050

FLYWHEEL

21050-0035

$225.49

92062

NOZZLE

92062-1053

$6.61

92139

BUSHING,#2,BLUE

92139-1265

$16.78

92139A

BUSHING,#2,BLACK

92139-1266

Unavailable

92139B

BUSHING,#2,BROWN

92139-1267

Unavailable

92139C

BUSHING,#1,BLUE

92139-1268

$16.34

92139D

BUSHING,#1,BLACK

92139-1269

Unavailable

92139E

BUSHING,#1,BROWN

92139-1270

Unavailable

92139F

BUSHING,CONNECTING ROD,BLUE

92139-1271

$15.32

92139G

BUSHING,CONNECTING ROD,BLACK

92139-1272

Unavailable

92139H

BUSHING,CONNECTING ROD,BROWN

92139-1273

Unavailable

92154

BOLT,8X22

92154-4492

$1.85

92154A

BOLT,CONNECTING ROD

92154-4493

$6.48

92200

WASHER,T=2.5

92200-0744

$11.16

600

BALL-STEEL,11/32"

600A1100

$0.64

Kawasaki RIDGE® XR CREW LIMITED HVAC Crankshaft Diagram

CRANKSHAFT-COMP

SHAFT,CONVERTER

ROD-ASSY-CONNECTING,H

FLYWHEEL

NOZZLE

BUSHING,#2,BLUE

BUSHING,#2,BLACK

BUSHING,#2,BROWN

BUSHING,#1,BLUE

BUSHING,#1,BLACK

BUSHING,#1,BROWN

BUSHING,CONNECTING ROD,BLUE

BUSHING,CONNECTING ROD,BLACK

BUSHING,CONNECTING ROD,BROWN

BOLT,8X22

BOLT,CONNECTING ROD

WASHER,T=2.5

BALL-STEEL,11/32"
