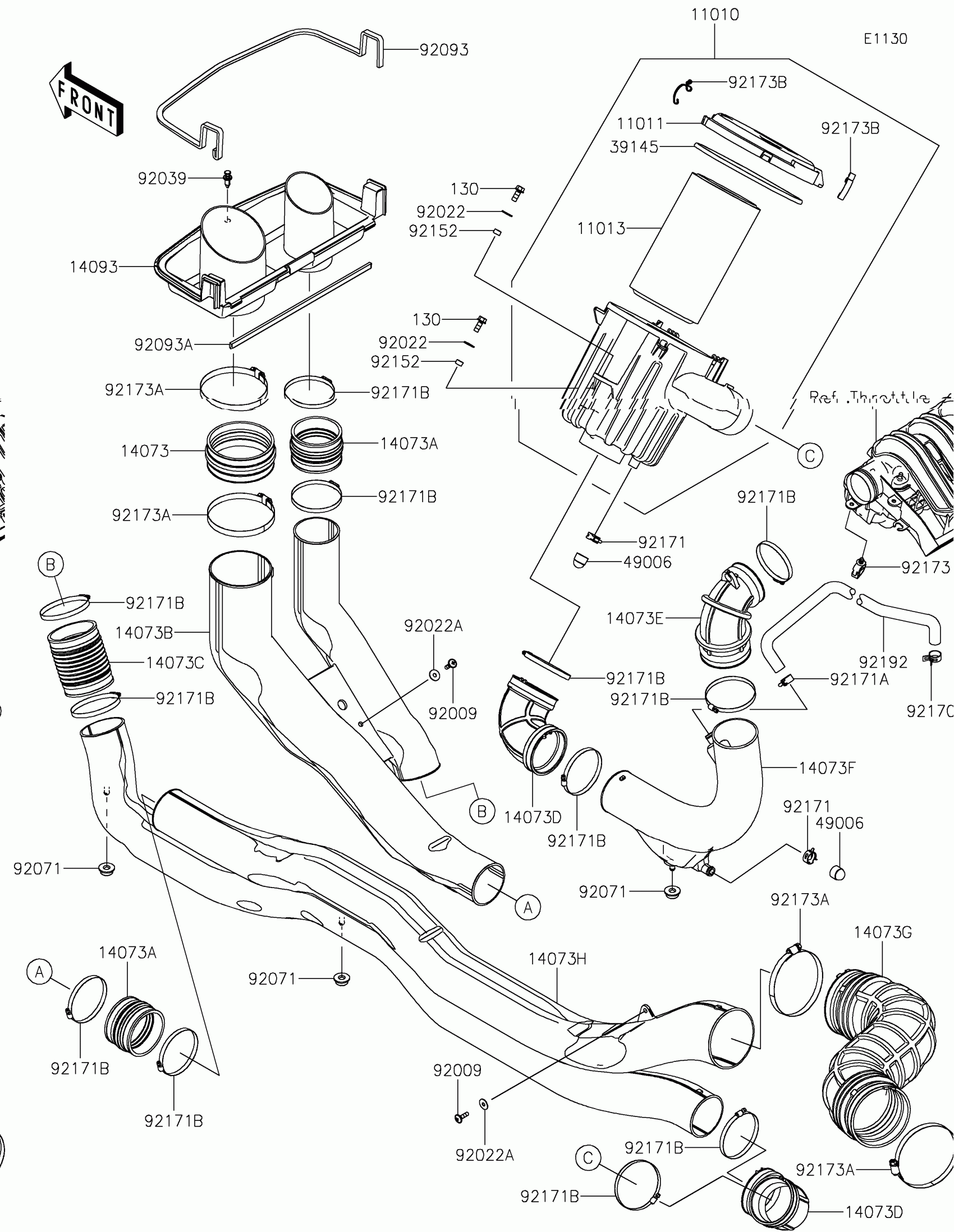

Kawasaki RIDGE® XR CREW LIMITED HVAC Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-1850

$165.48

11011

CASE-AIR FILTER,UPP

11011-0977

$15.10

11013

ELEMENT-AIR FILTER

11013-0782

$68.85

14073

DUCT

14073-0909

$6.65

14073A

DUCT,A/F CASE

14073-0923

$5.38

14073B

DUCT,CVT FR

14073-1906

$77.35

14073C

DUCT,CVT CNT

14073-1908

$11.40

14073D

DUCT,A/C BOX

14073-1912

$20.09

14073E

DUCT,THROTTLE

14073-1913

$26.00

14073F

DUCT,CHAMBER

14073-1922

$46.01

14073G

DUCT,CVT INTAKE

14073-1951

$84.02

14073H

DUCT,CVT RR

14073-1969

$150.70

14093

COVER,INTAKE

14093-1446

$26.83

39145

TRIM-SEAL

39145-0762

$14.26

49006

BOOT,DRAIN

49006-3718

$6.62

92009

SCREW,6X22

92009-1441

$4.31

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92022A

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92039

RIVET

92039-0776

$1.19

92071

GROMMET

92071-0829

$4.11

92093

SEAL

92093-0792

$18.21

92093A

SEAL

92093-0793

$9.71

92152

COLLAR,8.8X12.3X6.9

92152-1853

$3.63

92170

CLAMP

92170-1060

$8.10

92171

CLAMP

92171-0329

$8.89

92171A

CLAMP

92171-1277

$2.75

92171B

CLAMP

92171-1383

$4.40

92173

CLAMP

92173-0861

$3.02

92173A

CLAMP,130MM

92173-1938

$4.30

92173B

CLAMP,AIR FILTER CASE

92173-2023

$3.76

92192

TUBE,BREATHER

92192-2651

$26.39

130

BOLT-FLANGED,8X20

130BA0820

$4.14
