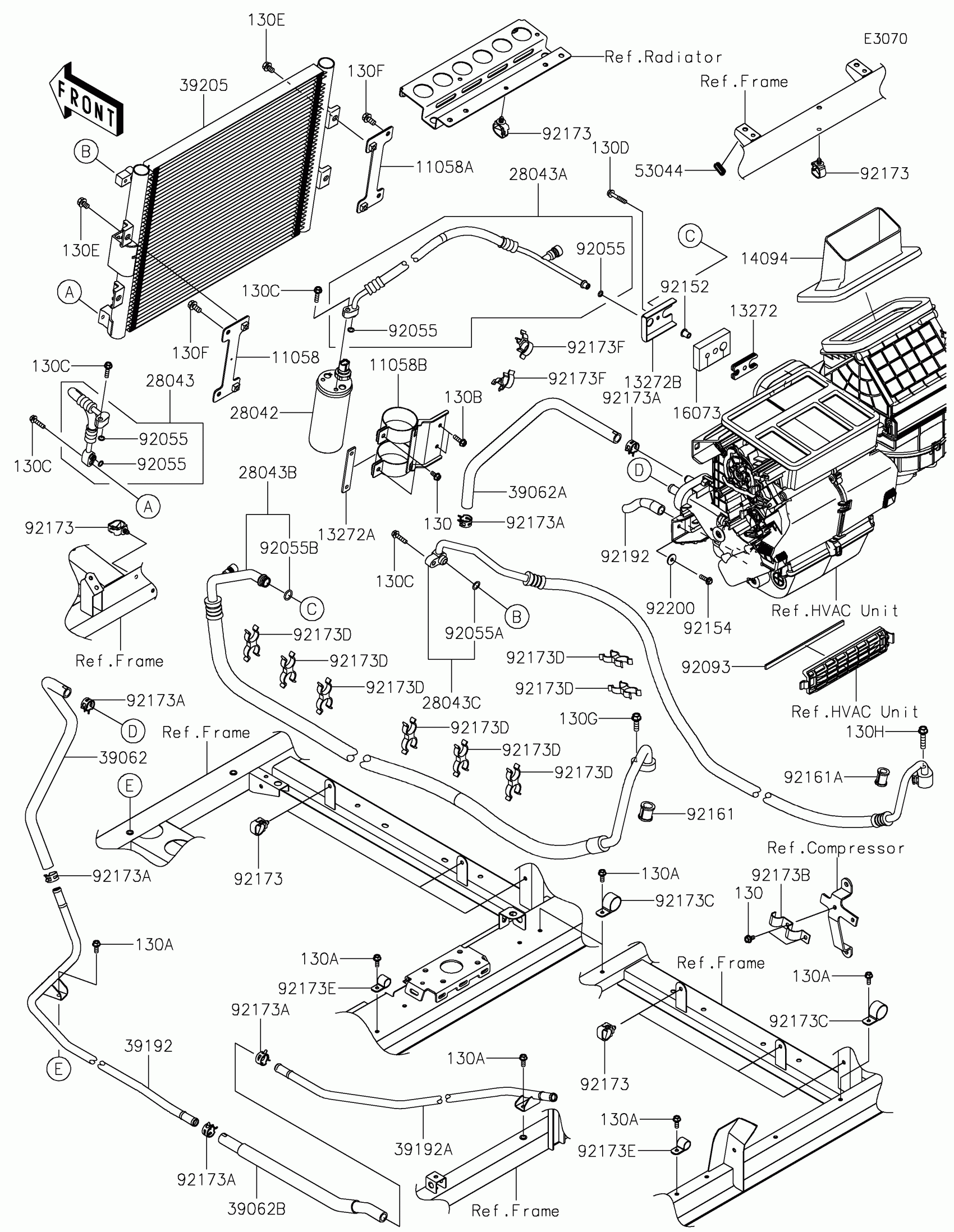

Kawasaki RIDGE XR CREW Heat Exchanger Equipment Diagram

#

Description
Price

11058

BRACKET,CONDENSER LH

11058-0293

$10.52

11058A

BRACKET,CONDENSER RH

11058-0294

$10.62

11058B

BRACKET,RECEIVER

11058-1341

$28.10

13272

PLATE,A/C UNIT

13272-4098

$20.45

13272A

PLATE,RECEIVER DRIER

13272-4099

$2.99

13272B

PLATE,INSULATOR

13272-4205

$10.62

14094

COVER

14094-0255

$25.26

16073

INSULATOR

16073-0944

$6.82

28042

RECEIVER-DRIER

28042-0001

$128.62

28043

HOSE-REFRIGERANT

28043-0002

$221.09

28043A

HOSE-REFRIGERANT

28043-0005

$333.20

28043B

HOSE-REFRIGERANT,A/C UNIT

28043-0014

$454.66

28043C

HOSE-REFRIGERANT,COMPRESSOR

28043-0015

$515.00

39062

HOSE-COOLING,PIPE-A/C UNIT

39062-0967

$31.87

39062A

HOSE-COOLING,A/C UNIT-FITTING

39062-0968

$25.23

39062B

HOSE-COOLING,HEATER PIPE JOINT

39062-1971

$36.39

39192

PIPE-WATER,HEATER,FR

39192-0745

$277.57

39192A

PIPE-WATER,HEATER,RR

39192-0746

$260.12

39205

HEAT EXCHANGER

39205-0001

$638.90

53044

TRIM,L=22

53044-0681

$5.82

92055

RING-O

92055-1751

$4.29

92055A

RING-O

92055-1773

$4.29

92055B

RING-O

92055-1774

$5.80

92093

SEAL

92093-0835

$4.46

92152

COLLAR

92152-0413

$8.68

92154

BOLT,FLANGED,6X20

92154-0107

$2.55

92161

DAMPER

92161-2474

$5.84

92161A

DAMPER

92161-2475

$5.66

92173

CLAMP

92173-0861

$3.02

92173A

CLAMP

92173-2285

$4.60

92173B

CLAMP

92173-2547

$3.24

92173C

CLAMP

92173-2548

$6.17

92173D

CLAMP

92173-2549

$7.34

92173E

CLAMP

92173-2551

$3.20

92173F

CLAMP

92173-3722

$5.47

92192

TUBE,DRAIN

92192-2674

$6.02

92200

WASHER,6.5X20X1.6

92200-0283

$1.40

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X20

130BA0620

$1.74

130C

BOLT-FLANGED,6X25

130BA0625

$1.20

130D

BOLT-FLANGED,6X35

130BA0635

$0.94

130E

BOLT-FLANGED,8X12

130BA0812

$0.95

130F

BOLT-FLANGED,8X16

130BA0816

$1.12

130G

BOLT-FLANGED,8X25

130BA0825

$2.95

130H

BOLT-FLANGED,8X35

130BA0835

$1.46
