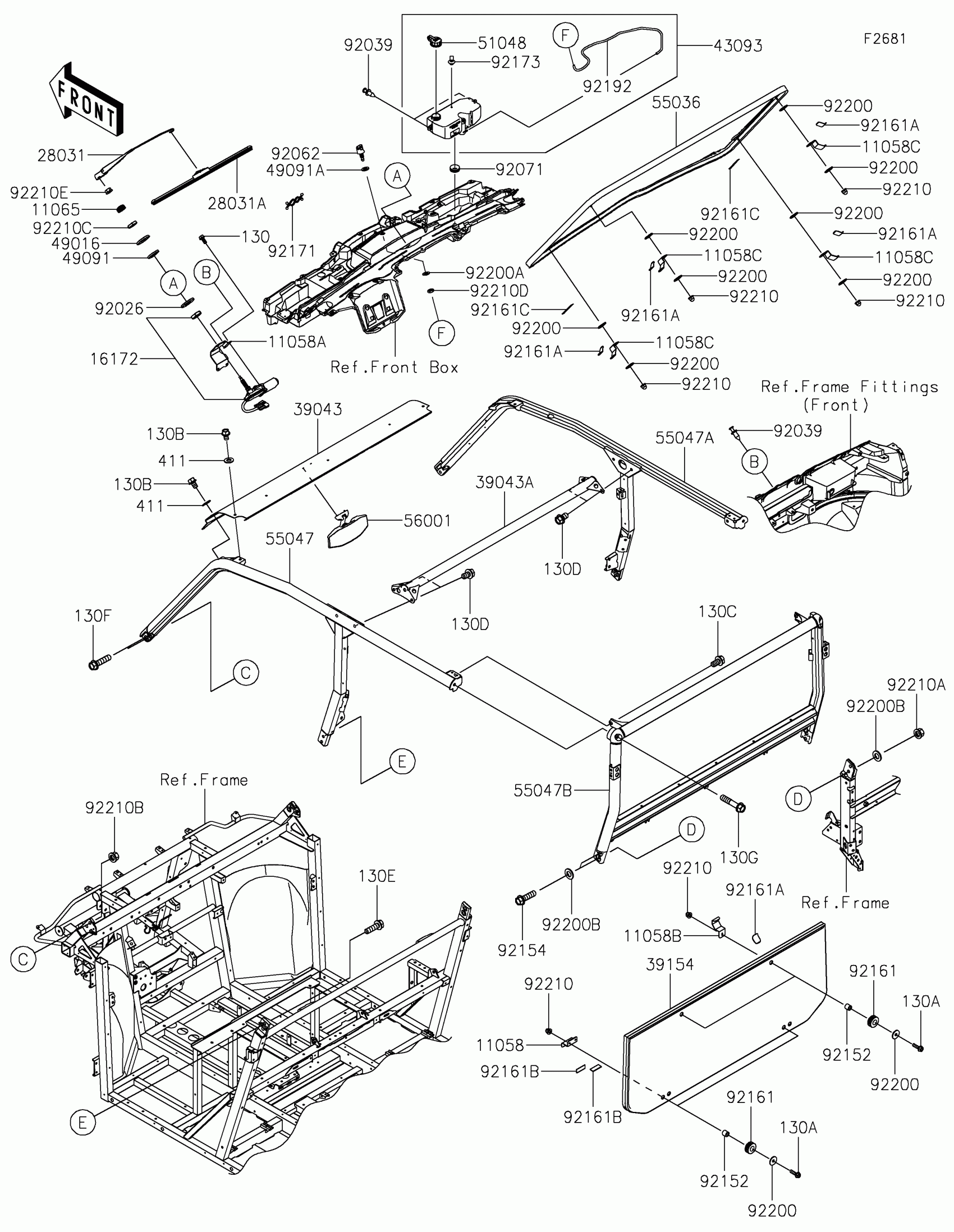

Kawasaki RIDGE XR CREW Guards/Cab Frame Diagram

#

Description
Price

11058

BRACKET,WINDSHIELD MOUNT,LWR

11058-0288

$5.57

11058A

BRACKET,WIPER ACTUATOR

11058-2306

$26.23

11058B

BRACKET,WINDSHIELD MOUNT

11058-2330

$8.91

11058C

BRACKET,WINDSHIELD MOUNT

11058-2798

$8.91

11065

CAP,ACTUATOR

11065-1495

$0.76

16172

ACTUATOR,WIPER

16172-0575

$288.87

28031

WIPER,ARM

28031-0006

$30.17

28031A

WIPER,BLADE

28031-0007

$35.60

39043

CROSSMEMBER-COMP,UPP,FR,T.BLK

39043-0043-388

$101.49

39043A

CROSSMEMBER-COMP,B-P,UPP,T.BLK

39043-0044-388

$112.27

39154

WINDSHIELD,RR

39154-0419

$364.63

43093

RESERVOIR-ASSY-TANK,WASHER

43093-0013

$82.80

49016

COVER-SEAL

49016-0722

$0.76

49091

WASHER-SEAL

49091-0014

$0.76

49091A

WASHER-SEAL

49091-0015

$0.53

51048

CAP-ASSY-TANK,RESERVOIR

51048-0614

$11.94

55036

WINDSHIELD-ASSY,FR

55036-0063

$807.32

55047

BAR-COMP,A/B-PILLAR,LH,T.BLACK

55047-0419-388

$616.74

55047A

BAR-COMP,A/B-PILLAR,RH,T.BLACK

55047-0420-388

$616.74

55047B

BAR-COMP,C-PILLAR,T.BLACK

55047-0468-388

$590.35

56001

MIRROR-ASSY,REAR VIEW

56001-0447

$88.70

92026

SPACER,16.3X35X3.6

92026-0973

$12.66

92039

RIVET

92039-0776

$1.19

92062

NOZZLE,SPRAY

92062-0588

$7.99

92071

GROMMET

92071-1115

$5.46

92152

COLLAR,6.5X12X11

92152-0692

$5.65

92154

BOLT,FLANGED,12X50

92154-7768

$8.56

92161

DAMPER

92161-2500

$1.08

92161A

DAMPER,45X35X1.5

92161-2600

$4.46

92161B

DAMPER,20X56X1.5

92161-2639

$1.71

92161C

DAMPER,100X15X1

92161-2650

$2.48

92171

CLAMP

92171-0476

$3.90

92173

CLAMP,RESERVOIR TANK

92173-2872

$4.65

92192

TUBE,4X8X830

92192-2824

$12.09

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

92200A

WASHER,8.4X16X1.6

92200-2705

$1.49

92200B

WASHER,13.8X26X2.3

92200-2830

$6.36

92210

NUT,CAP,6MM

92210-0003

$0.64

92210A

NUT,12MM

92210-0603

$8.98

92210B

NUT,FLANGED,12MM

92210-1932

$3.48

92210C

NUT,HEX,16MM

92210-2208

$2.56

92210D

NUT,HEX,8MM

92210-2209

$1.09

92210E

NUT,FLANGED,8MM

92210-2215

$0.61

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X22

130BB0622

$3.67

130B

BOLT-FLANGED,10X14

130CA1014

$3.35

130C

BOLT-FLANGED,12X22

130CA1222

$3.73

130D

BOLT-FLANGED,12X20

130CB1220

$4.40

130E

BOLT-FLANGED,12X40

130CB1240

$3.29

130F

BOLT-FLANGED,12X50

130CB1250

$6.81

130G

BOLT-FLANGED,12X60

130CB1260

$7.61

411

WASHER-PLAIN,10MM

411AA1000

$0.96
