Guard(s)

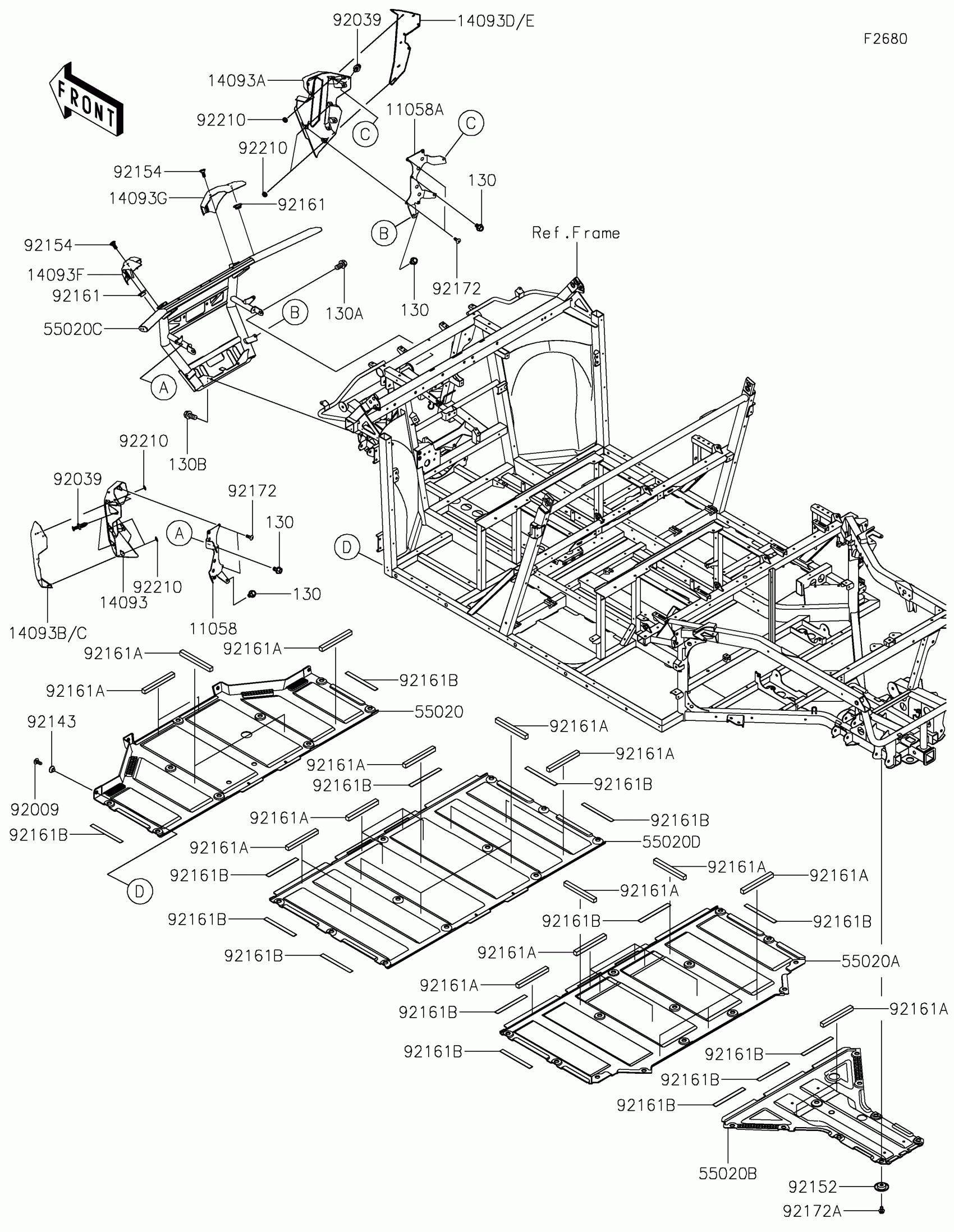

Kawasaki RIDGE XR CREW Guard(s) Diagram
#
Description
Price
11058
BRACKET,ACCENT LAMP,LH
11058-0443
$28.92
11058A
BRACKET,ACCENT LAMP,RH
11058-0444
$28.92
14093
COVER,ACCENT LAMP,LH,FR
14093-1414
$12.47
14093A
COVER,ACCENT LAMP,RH,FR
14093-1415
$12.47
14093B
COVER,ACCENT LAMP,LH,RR,GRAY
14093-1416-72U
$12.85
14093C
COVER,ACCENT LAMP,LH,RR,S.BLK
14093-1416-839
$12.85
14093D
COVER,ACCENT LAMP,RH,RR,GRAY
14093-1417-72U
$12.85
14093E
COVER,ACCENT LAMP,RH,RR,S.BLK
14093-1417-839
$12.85
14093F
COVER,FR GUARD,LH,BLACK
14093-1431-6Z
$5.56
14093G
COVER,FR GUARD,RH,BLACK
14093-1432-6Z
$5.56
55020
GUARD,SKID PLATE,FR
55020-2415
$111.33
55020A
GUARD,SKID PLATE,CNT
55020-2416
$122.33
55020B
GUARD,SKID PLATE,RR
55020-2417
$52.87
55020C
GUARD,FR BUMPER,T.BLACK
55020-2423-388
$450.46
55020D
GUARD,SKID PLATE,CNT,FR
55020-2481
$149.54
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92039
RIVET
92039-0776
$1.19
92143
COLLAR
92143-1057
$5.00
92152
COLLAR
92152-0784
$2.12
92154
BOLT
92154-2474
$1.59
92161
DAMPER
92161-1531
$3.02
92161A
DAMPER,20X200X20
92161-2633
$17.39
92161B
DAMPER,20X200X1.5
92161-2634
$2.20
92172
SCREW,TAPPING,5X14
92172-0265
$1.34
92172A
SCREW,6X10
92172-1549
$0.57
92210
NUT
92210-1796
$0.39
130
BOLT-FLANGED,8X12
130BA0812
$0.95
130A
BOLT-FLANGED,10X18
130BA1018
$2.49
130B
BOLT-FLANGED,10X22
130BB1022
$2.28
