2025 Kawasaki Ridge XR Crew Front Brake Diagram

← All diagrams

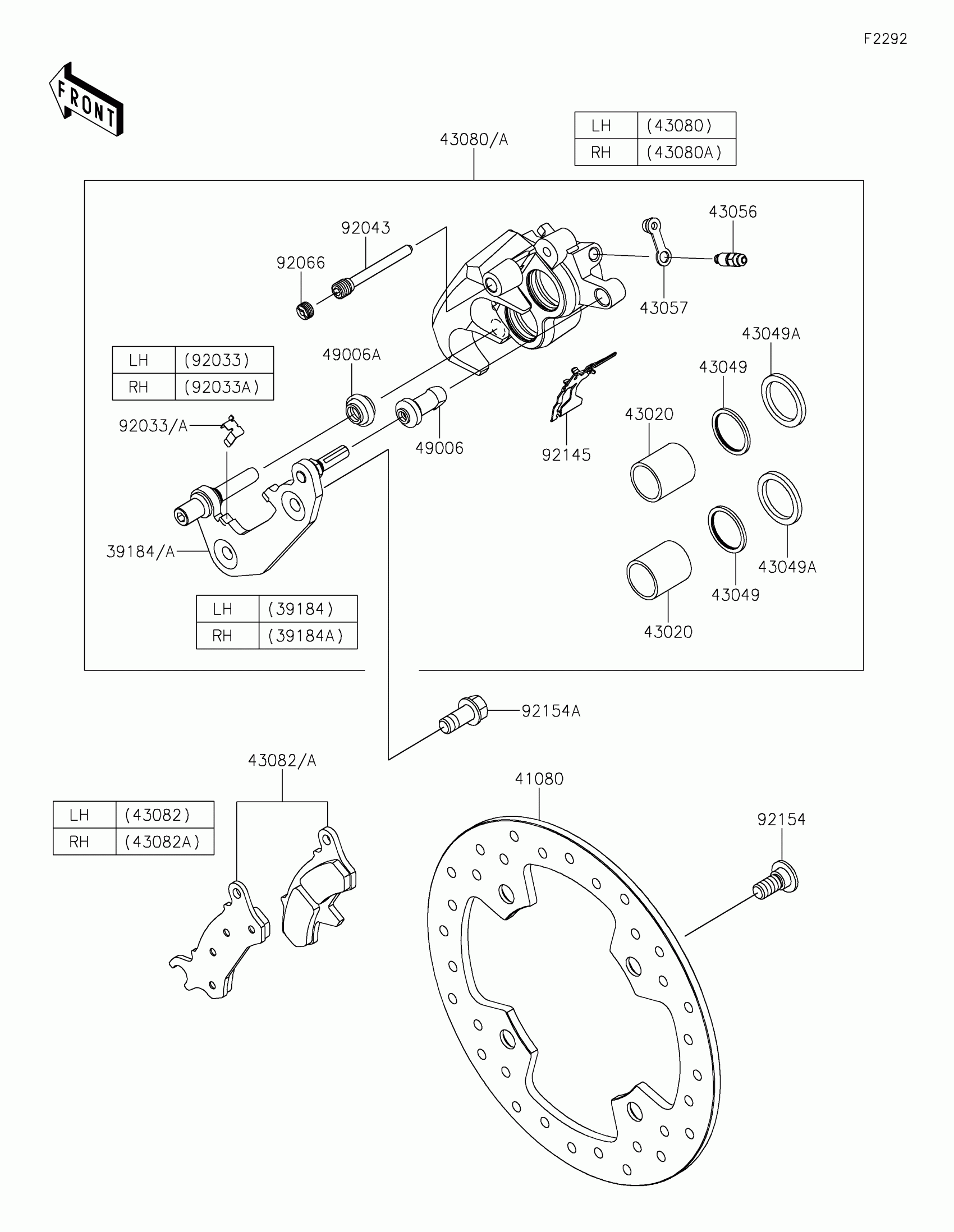

Find the part on the Front Brake diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge XR Crew Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39184

BRACKET-ASSY,FR,LH

39184-0751

1
Out of stock

39184A

BRACKET-ASSY,FR,RH

39184-0752

1
Out of stock

41080

DISC,BRAKE

41080-0746

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0039

1
Out of stock

43049

PACKING

43049-0577

1
Out of stock

43049A

PACKING

43049-0578

1
Out of stock

43056

BREATHER-BRAKE

43056-0055

1
Out of stock

43057

CAP-BREATHER

43057-0552

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH

43080-0254

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0255

1
Out of stock

43082

PAD-ASSY-BRAKE,FR,LH

43082-0207

1
Out of stock

43082A

PAD-ASSY-BRAKE,FR,RH

43082-0208

1
Out of stock

49006

BOOT

49006-0565

1
Out of stock

49006A

BOOT

49006-0566

1
Out of stock

92033

RING-SNAP

92033-0862

1
Out of stock

92033A

RING-SNAP

92033-0863

1
Out of stock

92043

PIN,PAD

92043-1834

1
Out of stock

92066

PLUG,PIN

92066-1614

1
Out of stock

92145

SPRING,PAD

92145-2363

1
Out of stock

92154

BOLT,SOCKET,10X23

92154-0713

1
Out of stock

92154A

BOLT,FLANGED,10X22

92154-1327

1
Out of stock
