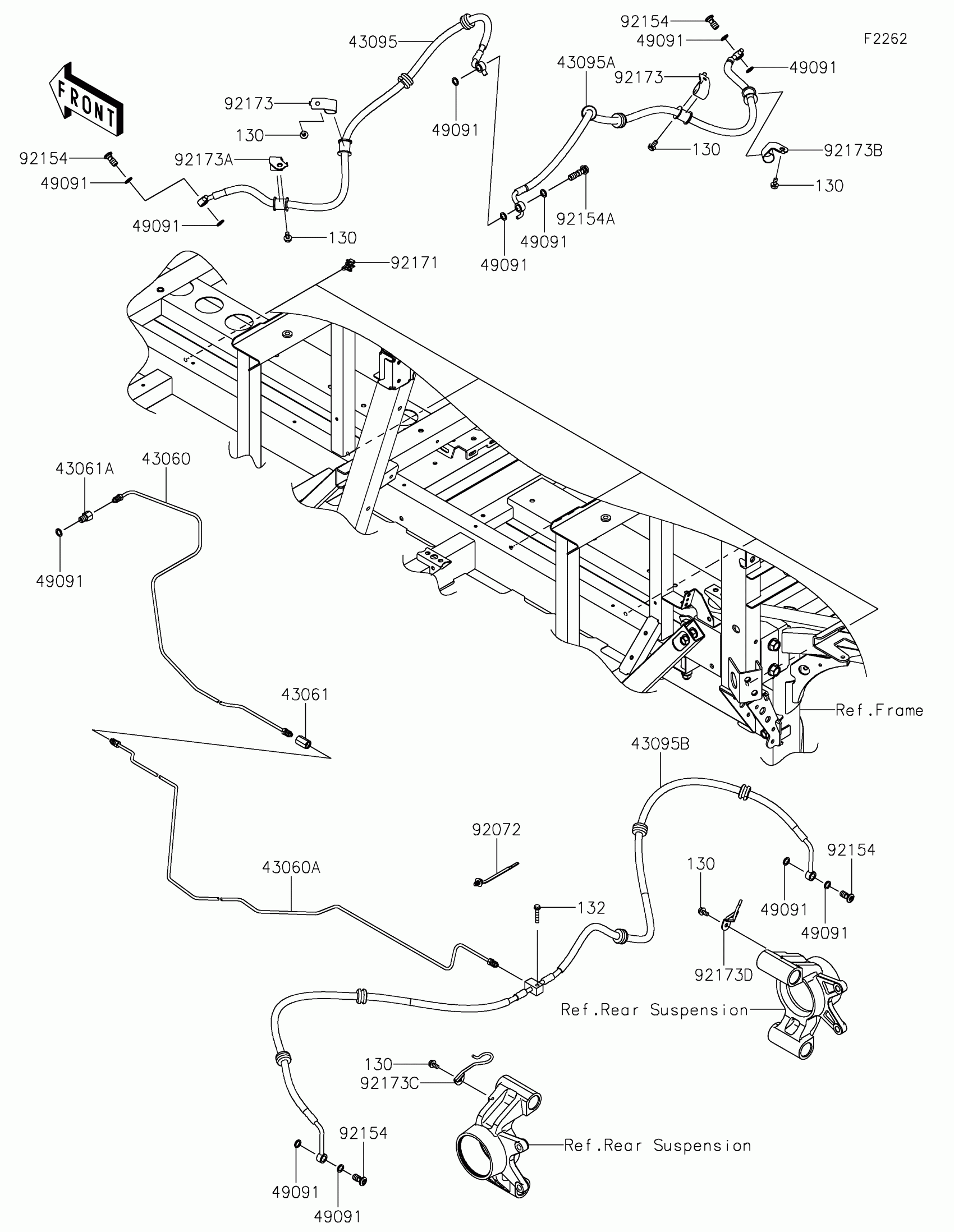

Kawasaki RIDGE XR CREW Brake Piping Diagram

Description

Price

43060

PIPE-BRAKE,FR

43060-0356

$28.54

43060A

PIPE-BRAKE,RR

43060-0357

$33.15

43061

JOINT-BRAKE

43061-0003

$47.25

43061A

JOINT-BRAKE,M/C

43061-0302

$33.87

43095

HOSE-BRAKE,921MM

43095-1875

$56.83

43095A

HOSE-BRAKE,1072.5MM

43095-1876

$60.53

43095B

HOSE-BRAKE

43095-1877

$100.94

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92154

BOLT,HEXALOBULAR,10X21

92154-1328

$6.17

92154A

BOLT,OIL,10X34.5

92154-1398

$7.47

92171

CLAMP

92171-0805

$3.51

92173

CLAMP

92173-1216

$3.14

92173A

CLAMP

92173-2539

$10.95

92173B

CLAMP

92173-2540

$10.95

92173C

CLAMP

92173-2541

$16.66

92173D

CLAMP

92173-2542

$16.66

130

BOLT-FLANGED,6X12

130BA0612

$1.25

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87
