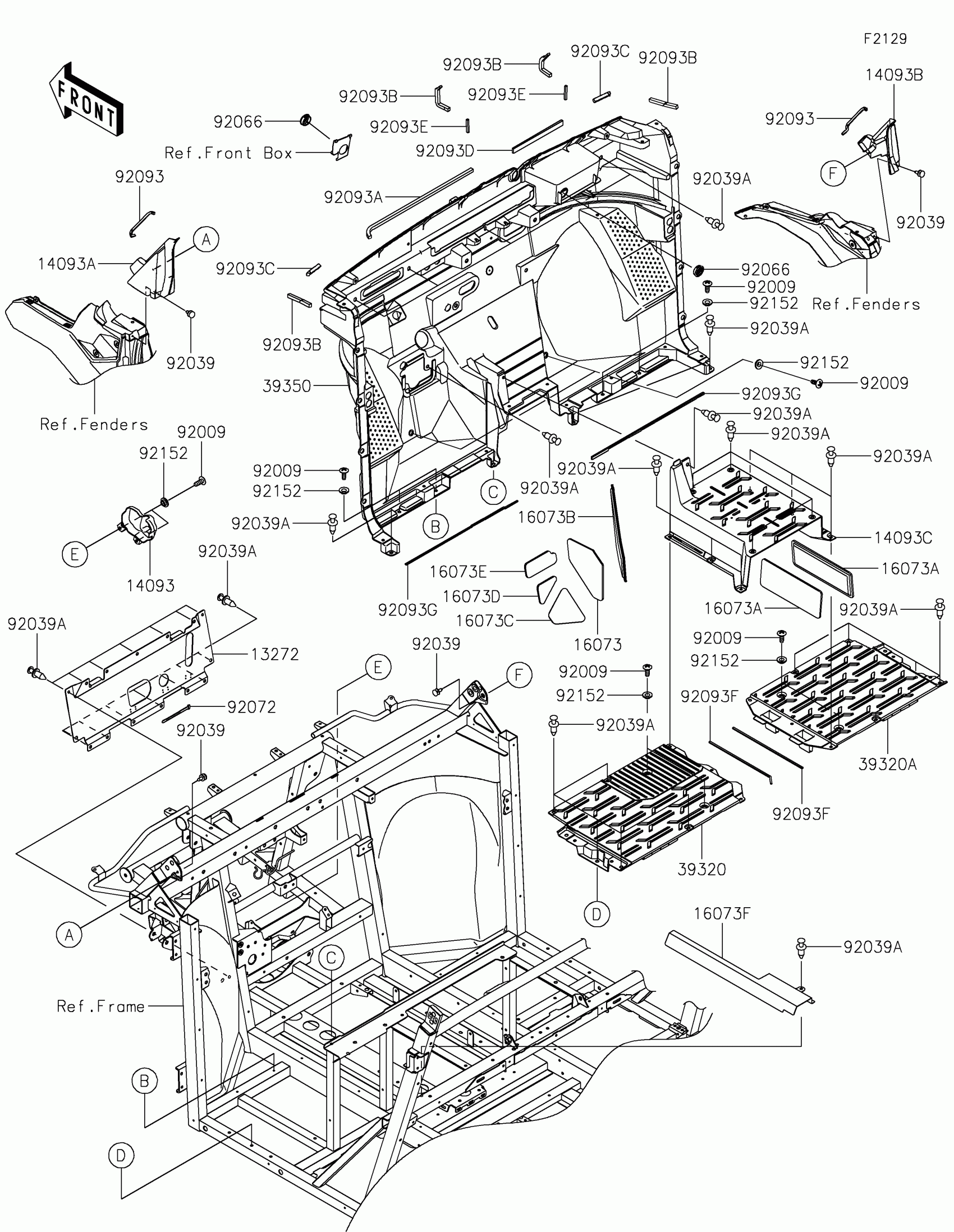

Kawasaki RIDGE XR CREW Frame Fittings(Front) Diagram

#

Description
Price

13272

PLATE,FR TUNNEL

13272-4215

$16.36

14093

COVER,FR GEAR,SIDE

14093-0839

$3.32

14093A

COVER,A PILLAR,LH

14093-1369

$11.39

14093B

COVER,A PILLAR,RH

14093-1370

$11.39

14093C

COVER,TUNNEL,CNT

14093-1479

$46.81

16073

INSULATOR,FR PANEL

16073-0946

$22.46

16073A

INSULATOR,FR TUNNEL&BACK PANEL

16073-0947

$20.24

16073B

INSULATOR,FR PANEL,RH

16073-0963

$30.07

16073C

INSULATOR,FR PANEL,LH,LWR

16073-0964

$14.24

16073D

INSULATOR,FR PANEL,LH,CNT

16073-0965

$11.44

16073E

INSULATOR,FR PANEL,LH,UPP

16073-0966

$12.92

16073F

INSULATOR

16073-0983

$55.04

39320

FLOOR,PANEL,LH

39320-0001

$45.49

39320A

FLOOR,PANEL,RH

39320-0002

$43.66

39350

PANEL,FR

39350-0006

$161.89

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92039

RIVET

92039-0046

$2.98

92039A

RIVET

92039-0776

$0.80

92066

PLUG,FR PANEL

92066-1598

$0.75

92072

BAND,L=123

92072-030

$3.81

92093

SEAL,6X6X195

92093-0781

$2.63

92093A

SEAL,10X10X500

92093-0784

$14.90

92093B

SEAL,10X10X110

92093-0785

$2.29

92093C

SEAL,10X10X60

92093-0786

$1.59

92093D

SEAL,6X17X220

92093-0813

$3.24

92093E

SEAL,6X6X50

92093-0817

$1.88

92093F

SEAL,3X5X310

92093-0818

$4.02

92093G

SEAL,3X5X500

92093-0819

$11.15

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53
