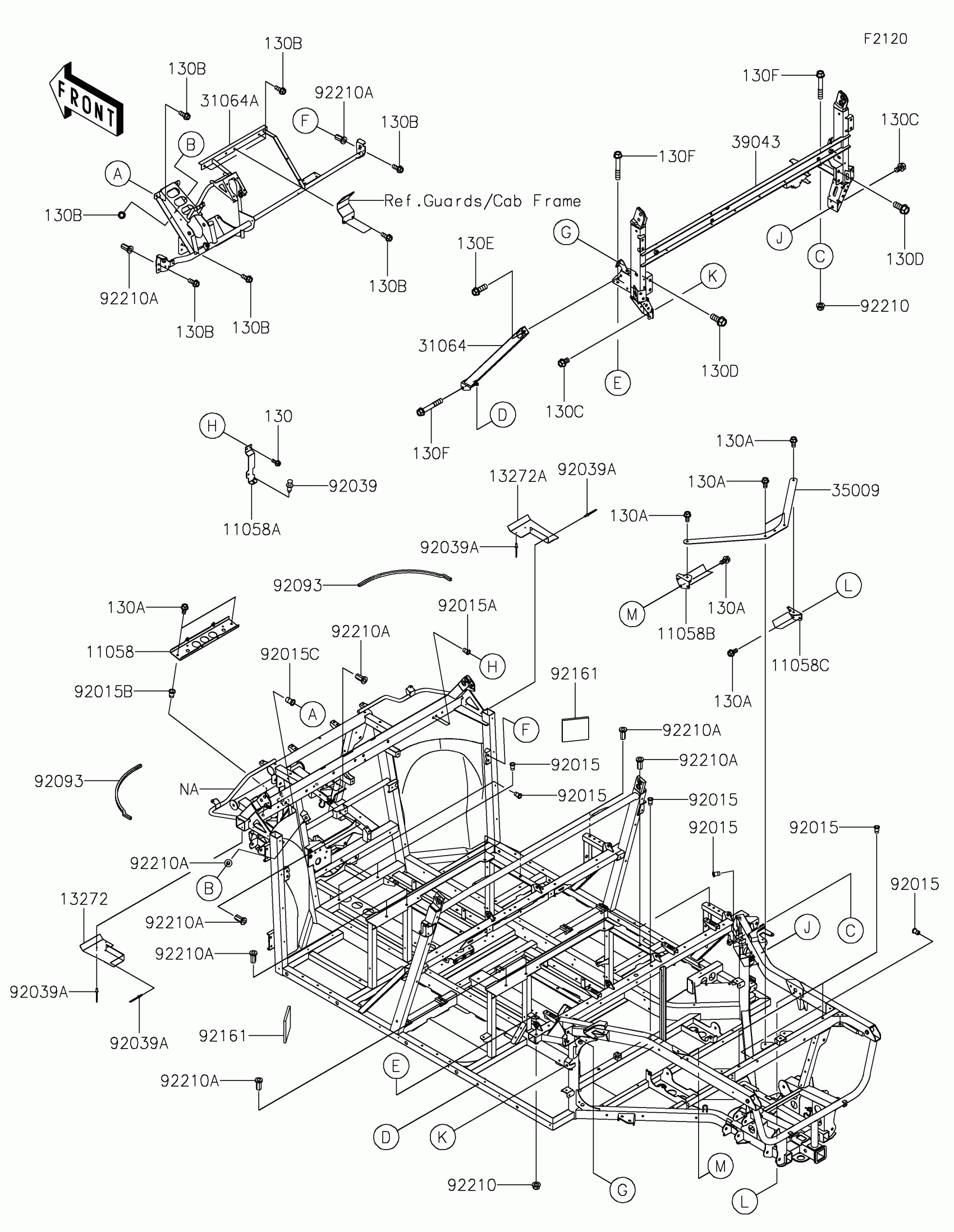

Kawasaki RIDGE XR CREW Frame Diagram
#
Description
Price
11058
BRACKET,RADIATOR
11058-0119
$14.30
11058A
BRACKET,HVAC,RH
11058-0278
$19.97
11058B
BRACKET,FRAME,RR UPPER,LH
11058-1488
$9.67
11058C
BRACKET,FRAME,RR UPPER,RH
11058-1489
$9.67
13272
PLATE,MUD GUARD,LH
13272-4466
$17.39
13272A
PLATE,MUD GUARD,RH
13272-4467
$17.39
31064
PIPE-COMP,TANK SIDE
31064-0748
$27.24
31064A
PIPE-COMP,DASHBOARD
31064-0750
$279.63
35009
BRACE
35009-0050
$28.94
39043
CROSSMEMBER-COMP,C-PILLAR,LWR
39043-0340
$525.47
92015
NUT,POP,6MM,L=15
92015-1791
$4.69
92015A
NUT,POP,6MM,L=16.5
92015-1792
$4.69
92015B
NUT,POP,8MM,L=16.5
92015-1793
$5.00
92015C
NUT,POP,8MM,L=18
92015-1794
$5.24
92039
RIVET
92039-0776
$1.19
92039A
RIVET,3.2X8
92039-3763
$1.81
92093
SEAL,10X10X500
92093-0784
$15.75
92161
DAMPER,125X125X10
92161-2574
$25.10
92210
NUT,LOCK,FLANGED,10MM
92210-0276
$2.61
92210A
NUT,RIVET
92210-2232
$1.13
130
BOLT-FLANGED,6X16
130BA0616
$1.20
130A
BOLT-FLANGED,8X16
130BA0816
$1.12
130B
BOLT-FLANGED,8X20
130BA0820
$4.14
130C
BOLT-FLANGED,10X16
130BA1016
$4.76
130D
BOLT-FLANGED,12X30
130BA1230
$1.98
130E
BOLT-FLANGED,10X30
130CA1030
$2.32
130F
BOLT-FLANGED,10X65
130CA1065
$2.39
