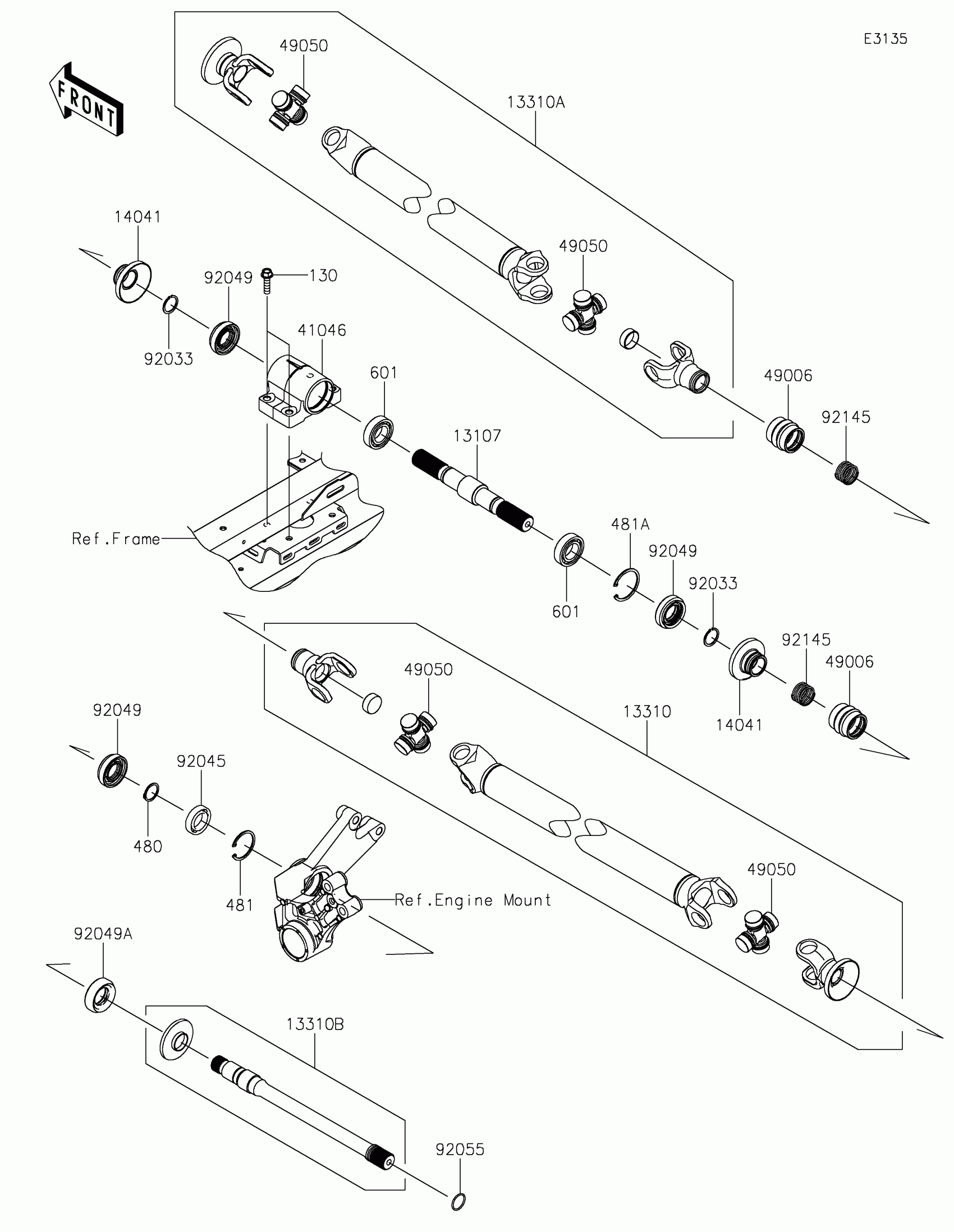

Kawasaki RIDGE XR CREW Drive Shaft-Propeller Diagram

Description

Price

13107

SHAFT

13107-1544

$135.55

13310

SHAFT-ASSY,PROPELLER,RR

13310-0587

$490.36

13310A

SHAFT-ASSY,PROPELLER,FR

13310-0588

$463.86

13310B

SHAFT-ASSY

13310-0589

$73.40

14041

COVER-COMP

14041-0631

$8.36

41046

HOUSING-BEARING

41046-0042

$101.08

49006

BOOT

49006-0646

$3.33

49050

SPIDER

49050-0034

$110.37

92033

RING-SNAP,25MM

92033-1172

$5.08

92045

BEARING-BALL,#6905

92045-036

$27.88

92049

SEAL-OIL,TC9Y 25X48X10X17.2

92049-0817

$12.51

92049A

SEAL-OIL,TC9Y 28X50X10X17.2

92049-0818

$12.51

92055

RING-O,22.1X1.9

92055-1617

$2.67

92145

SPRING

92145-1838

$4.33

130

BOLT-FLANGED,8X30

130BA0830

$1.98

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

481

CIRCLIP-TYPE-C,42MM

481J4200

$6.16

481A

CIRCLIP-TYPE-C,47MM

481J4700

$4.22

601

BEARING-BALL

601A6005

$13.82
