2025 Kawasaki Ridge XR Crew Door Diagram

← All diagrams

Find the part on the Door diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

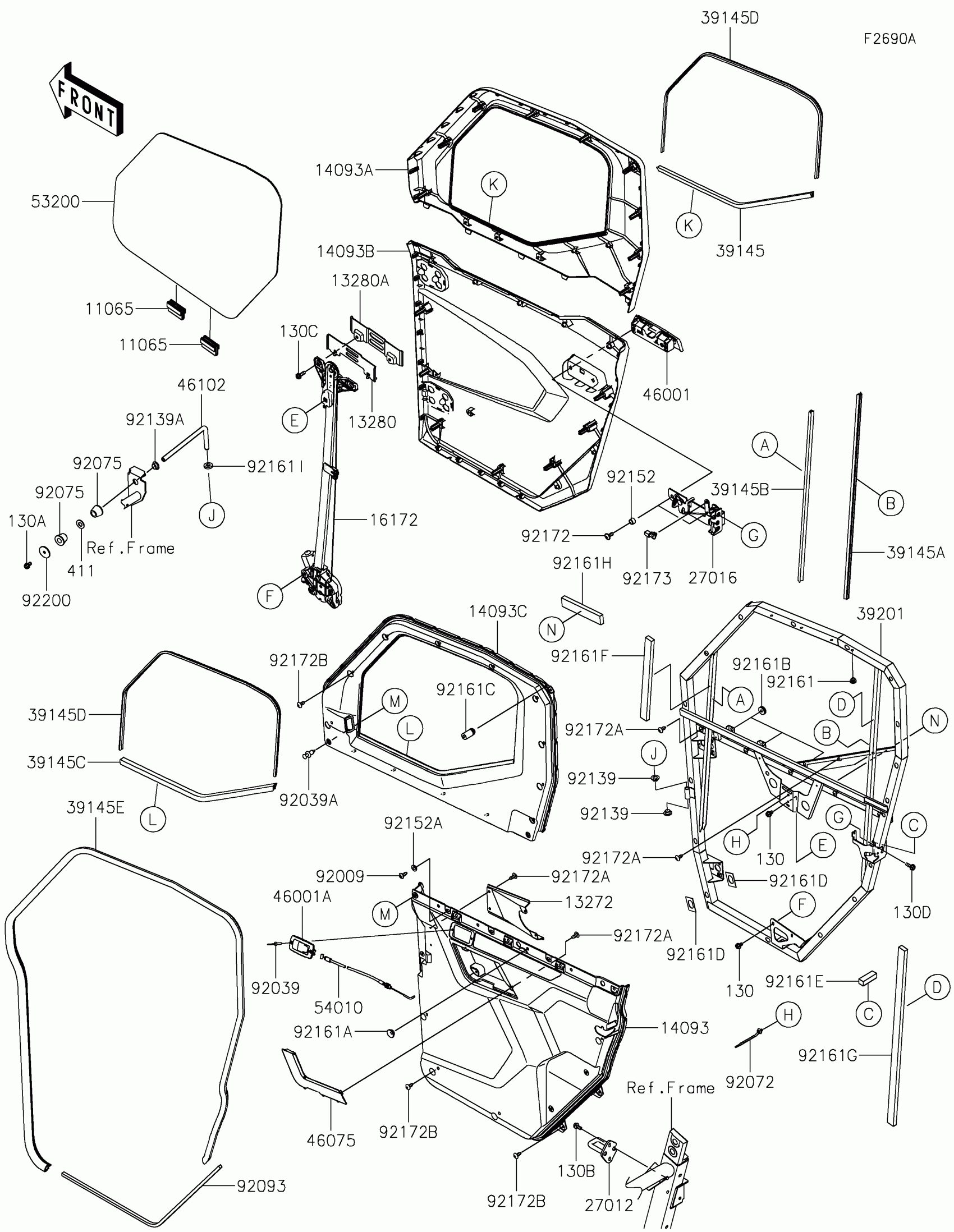

2025 Kawasaki Ridge XR Crew Door Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,WINDOW ACTUATOR

11065-1432

1
Out of stock

13272

PLATE,FULL DOOR,RH

13272-4429

1
Out of stock

13280

HOLDER,WINDOW,INNER

13280-1342

1
Out of stock

13280A

HOLDER,WINDOW,OUTER

13280-1343

1
Out of stock

14093

COVER,FULL DOOR,RH,INNER

14093-1317

1
Out of stock

14093A

COVER,FULL DOOR,RH,OUTER,UPP

14093-1368

1
Out of stock

14093B

COVER,FULL DOOR,RH,OUTER,EBONY

14093-1430-H8

1
Out of stock

14093C

COVER,FULL DOOR,RH,INNER,UPP

14093-1444

1
Out of stock

16172

ACTUATOR,WINDOW,RH

16172-0564

1
Out of stock

27012

HOOK,FULL DOOR

27012-0926

1
Out of stock

27016

LOCK-ASSY,FR DOOR,RH

27016-0115

1
Out of stock

39145

TRIM-SEAL,WINDOW,LWR

39145-0745

1
Out of stock

39145A

TRIM-SEAL,FULL DOOR,RAIL,FR

39145-0746

1
Out of stock

39145B

TRIM-SEAL,FULL DOOR,RAIL,RR

39145-0747

1
Out of stock

39145C

TRIM-SEAL,WINDOW,LWR

39145-0763

1
Out of stock

39145D

TRIM-SEAL,WINDOW,UPP

39145-0796

1
Out of stock

39145E

TRIM-SEAL,FULL DOOR

39145-0801

1
Out of stock

39201

FRAME-COMP-DOOR,FULL,RH

39201-0010

1
Out of stock

46001

HANDLE-ASSY,DOOR,OUTER

46001-0017

1
Out of stock

46001A

HANDLE-ASSY,DOOR,INNER

46001-0026

1
Out of stock

46075

GRIP,DOOR,INNNER,RH

46075-0666

1
Out of stock

46102

ROD,DOOR,RH

46102-0682

1
Out of stock

53200

WINDOW,GLASS

53200-0001

1
Out of stock

54010

CABLE,FR DOOR HANDLE

54010-0671

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92039

RIVET,4.0X17.5

92039-0703

1
Out of stock

92039A

RIVET

92039-0776

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92075

DAMPER,HANDLE HOLDER

92075-039

1
Out of stock

92093

SEAL

92093-0792

1
Out of stock

92139

BUSHING

92139-0230

1
Out of stock

92139A

BUSHING

92139-1241

1
Out of stock

92152

COLLAR,6.5X8.5X5.5

92152-0612

1
Out of stock

92152A

COLLAR,6.3X9.5X4.1

92152-1571

1
Out of stock

92161

DAMPER

92161-1084

1
Out of stock

92161A

DAMPER

92161-1531

1
Out of stock

92161B

DAMPER,6X19X5.6

92161-1911

1
Out of stock

92161C

DAMPER

92161-2612

1
Out of stock

92161D

DAMPER

92161-2613

1
Out of stock

92161E

DAMPER,15X45X13

92161-2638

1
Out of stock

92161F

DAMPER,20X250X10

92161-2648

1
Out of stock

92161G

DAMPER,20X550X10

92161-2649

1
Out of stock

92161H

DAMPER,25X130X10

92161-2714

1
Out of stock

92161I

DAMPER,10X20X6

92161-2745

1
Out of stock

92172

SCREW,6X16

92172-0236

1
Out of stock

92172A

SCREW,6X16

92172-0284

1
Out of stock

92172B

SCREW,TAPPING,6X16

92172-1470

1
Out of stock

92173

CLAMP

92173-2863

1
Out of stock

92200

WASHER

92200-2144

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

130B

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

130C

BOLT-FLANGED,6X18

130BA0618

1
Out of stock

130D

BOLT-FLANGED,6X22

130BA0622

1
Out of stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock
