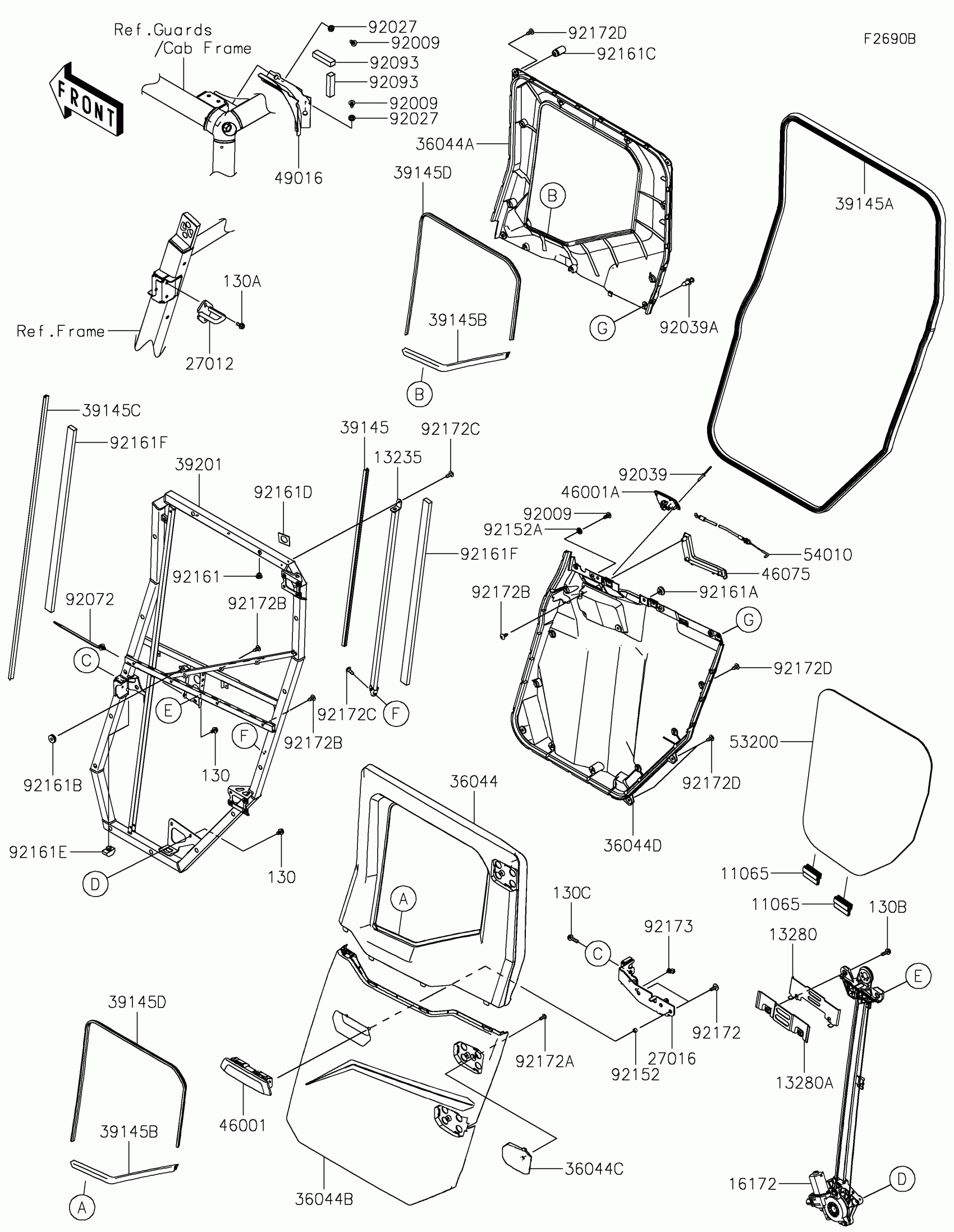

Kawasaki RIDGE XR CREW Door(RR/LH) Diagram

#

Description
Price

11065

CAP,WINDOW ACTUATOR

11065-1432

$1.39

13235

GUIDE-COMP,WINDOW RAIL,LH

13235-0016

$99.85

13280

HOLDER,WINDOW,INNER

13280-1342

$8.68

13280A

HOLDER,WINDOW,OUTER

13280-1343

$9.75

16172

ACTUATOR,WINDOW,LH

16172-0563

$425.31

27012

HOOK,FULL DOOR

27012-0926

$12.20

27016

LOCK-ASSY,RR DOOR,LH

27016-0111

$210.55

36044

PANEL-DOOR,RR,LH,UPP,OUTER

36044-0017

$55.54

36044A

PANEL-DOOR,RR,LH,UPP,INNER

36044-0023

$65.59

36044B

PANEL-DOOR,RR,LH,LWR,OUTER,EBY

36044-0025-H8

$300.22

36044C

PANEL-DOOR,RR,HINGE,LH,EBONY

36044-0027-H8

$85.97

36044D

PANEL-DOOR,RR,LH,LWR,INNER

36044-0029

$78.85

39145

TRIM-SEAL,FULL DOOR,RAIL,RR

39145-0747

$15.44

39145A

TRIM-SEAL,RR FULL DOOR

39145-0784

$45.86

39145B

TRIM-SEAL,RR WINDOW,LWR

39145-0786

$14.95

39145C

TRIM-SEAL,RR FULL DOOR,RAIL,FR

39145-0787

$23.80

39145D

TRIM-SEAL,RR WINDOW,UPP

39145-0818

$5.69

39201

FRAME-COMP-DOOR,RR,LH

39201-0013

$472.02

46001

HANDLE-ASSY,DOOR,OUTER

46001-0017

$24.91

46001A

HANDLE-ASSY,DOOR,INNER

46001-0026

$24.03

46075

GRIP,RR DOOR,INNNER,LH

46075-0694

$15.39

49016

COVER-SEAL,RR DOOR,LH

49016-0716

$8.22

53200

WINDOW,RR,GLASS

53200-0002

$90.32

54010

CABLE,RR DOOR HANDLE

54010-0675

$15.34

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92027

COLLAR,L=4.6

92027-1168

$3.81

92039

RIVET,4.0X17.5

92039-0703

$0.84

92039A

RIVET

92039-0776

$0.80

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92093

SEAL,WINDOW,CORNER

92093-0811

$1.64

92152

COLLAR,6.5X8.5X5.5

92152-0612

$2.98

92152A

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92161

DAMPER

92161-1084

$1.89

92161A

DAMPER

92161-1531

$2.11

92161B

DAMPER,6X19X5.6

92161-1911

$0.76

92161C

DAMPER

92161-2612

$0.93

92161D

DAMPER

92161-2613

$2.03

92161E

DAMPER

92161-2618

$0.97

92161F

DAMPER,20X550X10

92161-2649

$20.49

92172

SCREW,6X16

92172-0236

$0.73

92172A

SCREW,TAPPING,5X14

92172-0265

$1.04

92172B

SCREW,6X16

92172-0284

$0.90

92172C

SCREW,TAPPING,6X16

92172-0739

$0.73

92172D

SCREW,TAPPING,6X16

92172-1470

$0.74

92173

CLAMP

92173-2863

$2.25

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X14

130BA0614

$0.97

130B

BOLT-FLANGED,6X18

130BA0618

$1.17

130C

BOLT-FLANGED,6X22

130BA0622

$1.00
