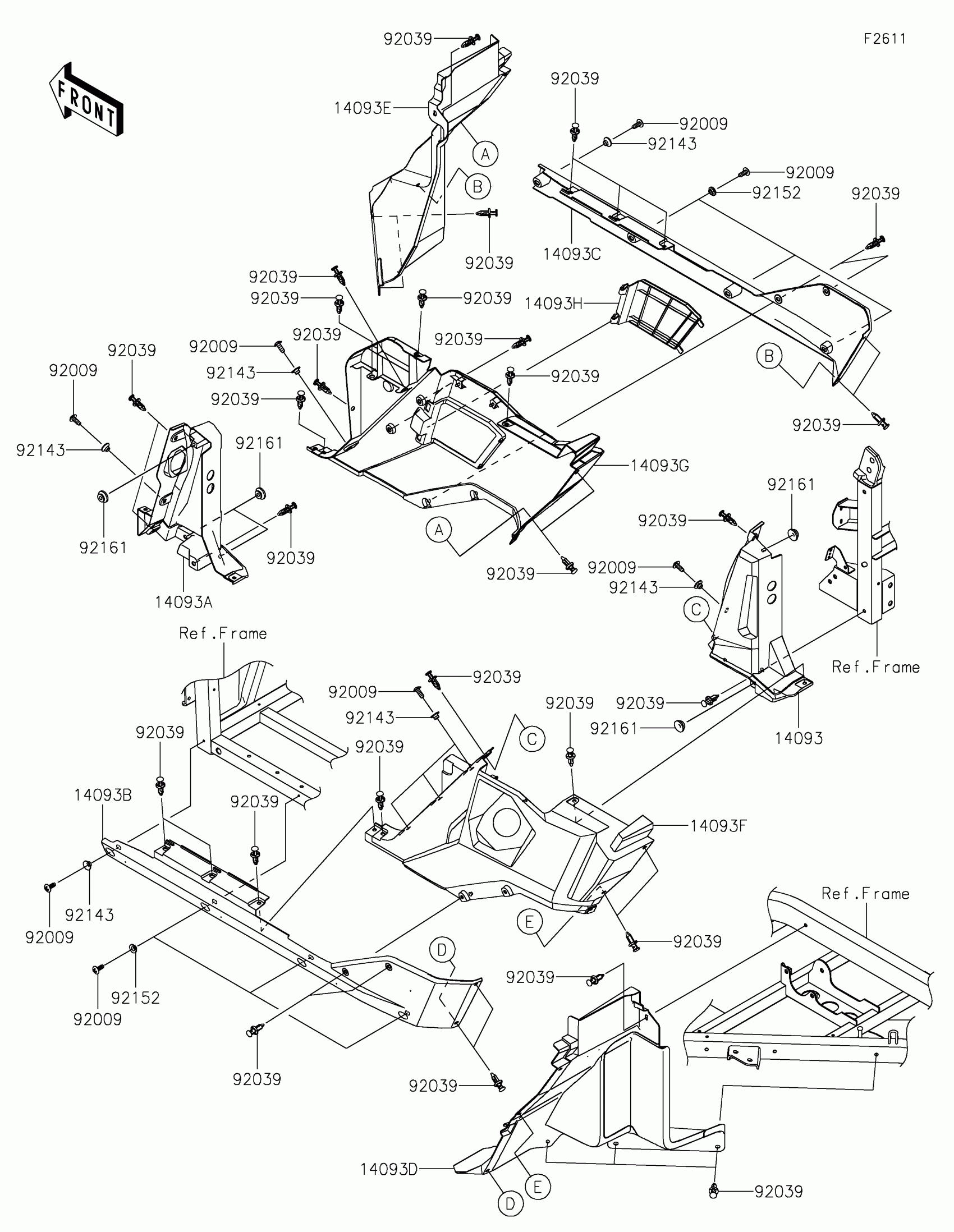

Kawasaki RIDGE® RANCH EDITION Side Covers Diagram

Description

Price

14093

COVER,SIDE,LH,UPP

14093-1327

$14.21

14093A

COVER,SIDE,RH,UPP

14093-1328

$14.54

14093B

COVER,SIDE GUARD,LH,LWR,BLACK

14093-1331-6Z

$25.21

14093C

COVER,SIDE GUARD,RH,LWR,BLACK

14093-1332-6Z

$25.21

14093D

COVER,RR MUDGUARD,LH

14093-1335

$23.77

14093E

COVER,RR MUDGUARD,RH

14093-1336

$23.22

14093F

COVER,SIDE,LH,LWR

14093-1343

$35.04

14093G

COVER,SIDE,RH,LWR

14093-1344

$35.04

14093H

COVER,BATTERY

14093-1345

$9.89

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92039

RIVET

92039-0776

$1.19

92143

COLLAR

92143-1057

$5.00

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92161

DAMPER

92161-1531

$3.02
