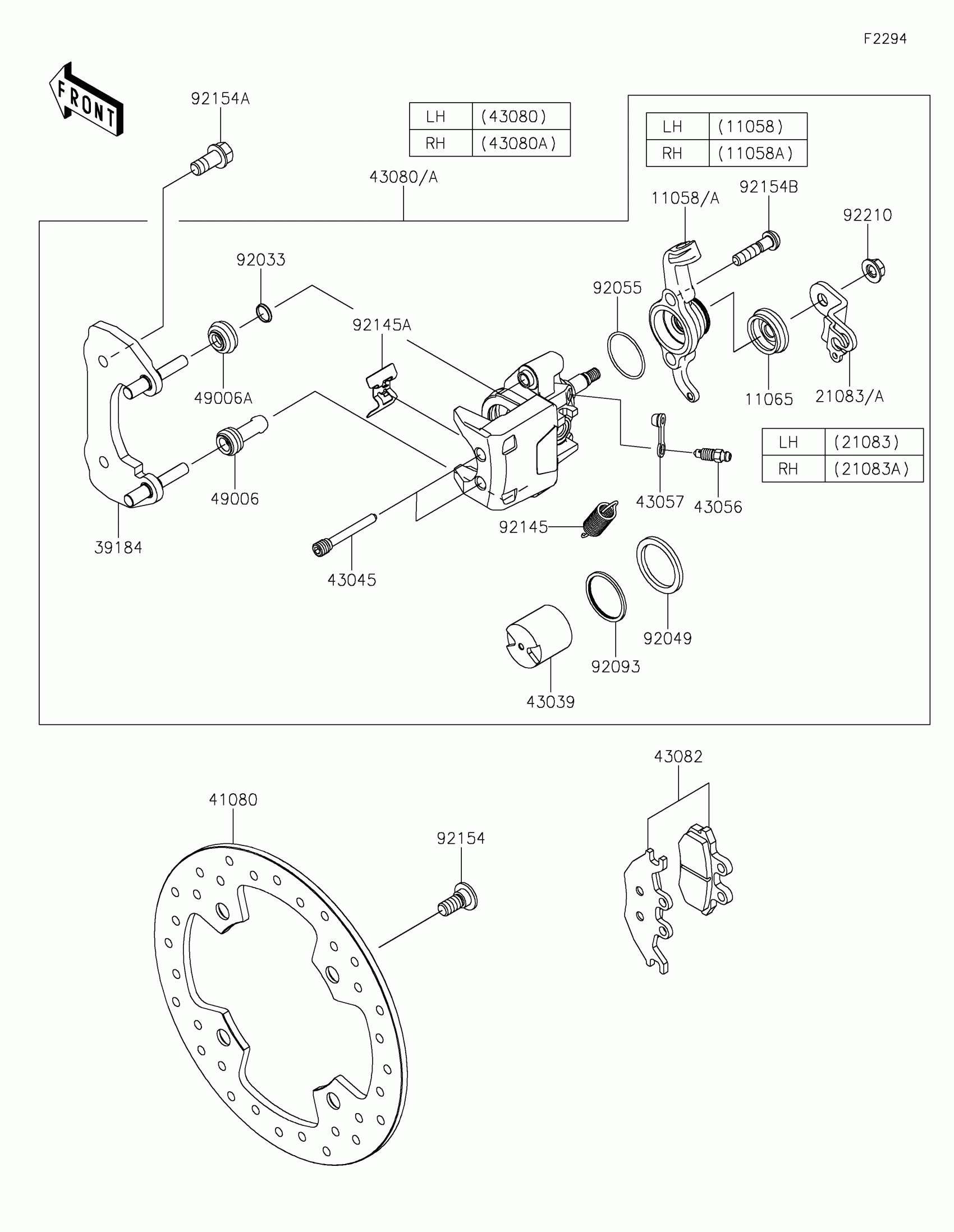

Kawasaki RIDGE® RANCH EDITION Rear Brake Diagram

Description

Price

11058

BRACKET,CALIPER,RR,LH

11058-2318

$93.58

11058A

BRACKET,CALIPER,RR,RH

11058-2319

$93.58

11065

CAP

11065-0870

$2.82

21083

ARM,BRAKE,RR,LH

21083-0771

$22.47

21083A

ARM,BRAKE,RR,RH

21083-0772

$22.47

39184

BRACKET-ASSY,RR

39184-0753

$95.10

41080

DISC,BRAKE

41080-0746

$91.47

43039

PISTON-BRAKE

43039-0027

$98.45

43045

SHAFT-CALIPER

43045-Y002

$12.80

43056

BREATHER-BRAKE

43056-0055

$12.15

43057

CAP-BREATHER

43057-0552

$3.82

43080

CALIPER-SUB-ASSY,RR,LH

43080-0252

$505.76

43080A

CALIPER-SUB-ASSY,RR,RH

43080-0253

$505.76

43082

PAD-ASSY-BRAKE,RR

43082-0209

$108.38

49006

BOOT

49006-0591

Unavailable

49006A

BOOT

49006-0592

Unavailable

92033

RING-SNAP

92033-0864

$4.31

92049

SEAL-OIL

92049-0765

Unavailable

92055

RING-O

92055-0795

$2.20

92093

SEAL

92093-0613

$3.62

92145

SPRING,RETURN,47MM

92145-1690

$3.98

92145A

SPRING,PAD

92145-2364

$7.14

92154

BOLT,SOCKET,10X23

92154-0713

$3.13

92154A

BOLT,FLANGED,10X22

92154-1327

$1.95

92154B

BOLT,FLANGE,6X40

92154-Y228

$4.34

92210

NUT

92210-2216

$8.22
