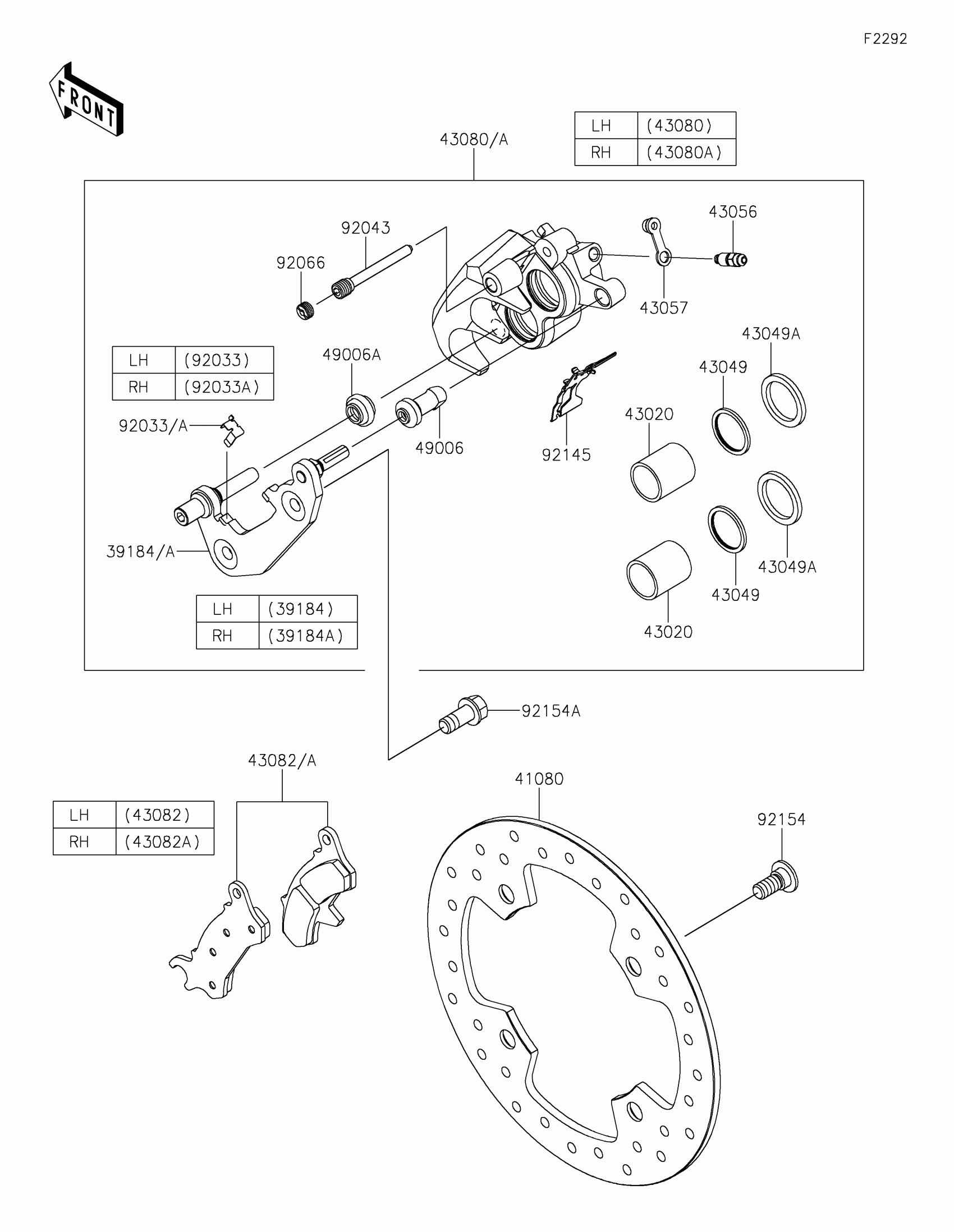

Kawasaki RIDGE® RANCH EDITION Front Brake Diagram

Description

Price

39184

BRACKET-ASSY,FR,LH

39184-0751

$60.18

39184A

BRACKET-ASSY,FR,RH

39184-0752

$60.18

41080

DISC,BRAKE

41080-0746

$91.47

43020

PISTON-COMP-BRAKE

43020-0054

$38.33

43049

PACKING

43049-0556

$13.25

43049A

PACKING

43049-0557

$7.59

43056

BREATHER-BRAKE

43056-0055

$12.15

43057

CAP-BREATHER

43057-0552

$3.82

43080

CALIPER-SUB-ASSY,FR,LH

43080-0250

$382.39

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0251

$382.39

43082

PAD-ASSY-BRAKE,FR,LH

43082-0207

$82.11

43082A

PAD-ASSY-BRAKE,FR,RH

43082-0208

$82.11

49006

BOOT

49006-0565

$10.39

49006A

BOOT

49006-0566

$3.98

92033

RING-SNAP

92033-0862

$5.61

92033A

RING-SNAP

92033-0863

$5.61

92043

PIN,PAD

92043-1834

$16.66

92066

PLUG,PIN

92066-1614

$2.27

92145

SPRING,PAD

92145-2363

$27.31

92154

BOLT,SOCKET,10X23

92154-0713

$3.13

92154A

BOLT,FLANGED,10X22

92154-1327

$1.95
