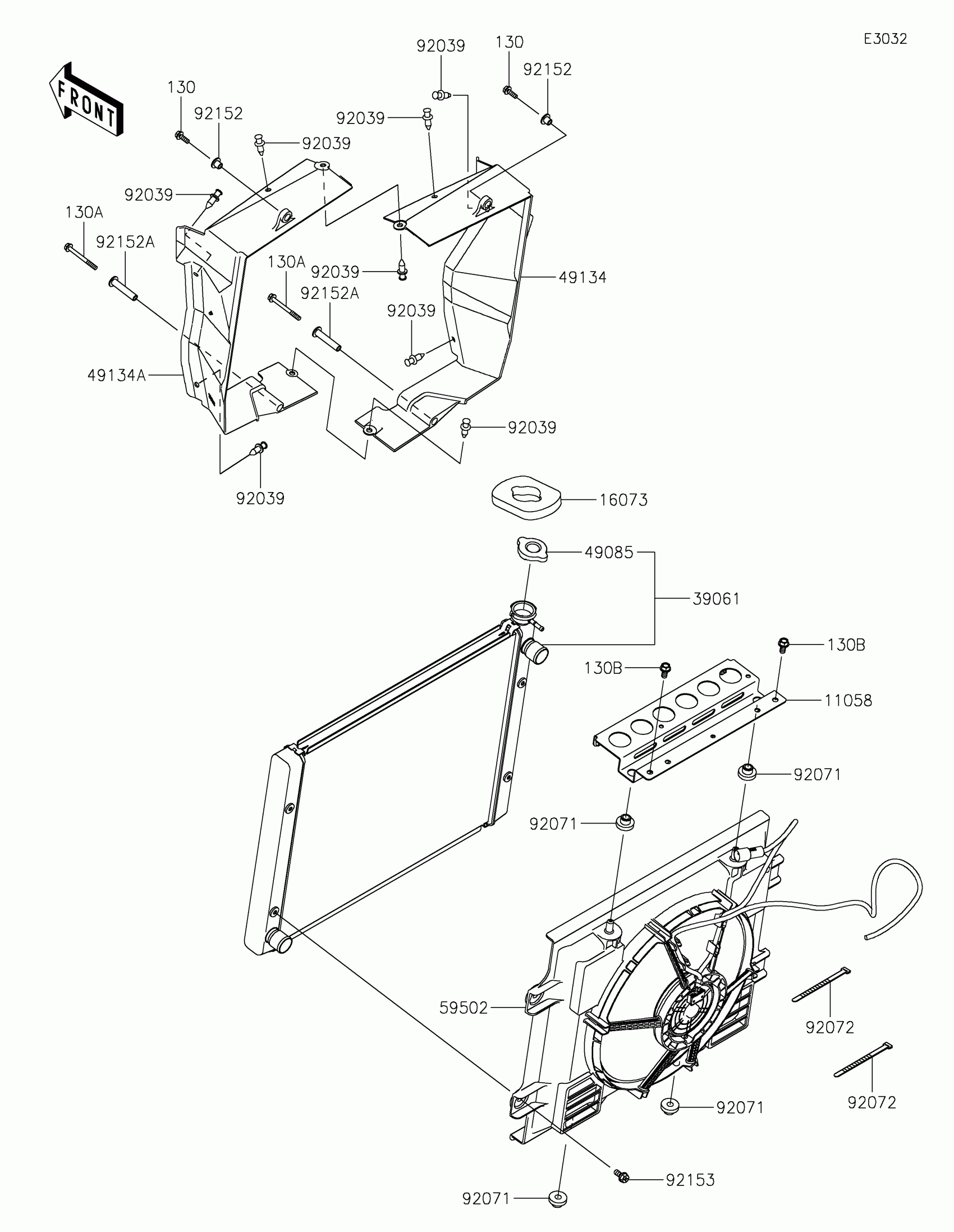

Kawasaki RIDGE® RANCH EDITION Radiator Diagram

Description

Price

11058

BRACKET,RADIATOR

11058-1410

$176.55

16073

INSULATOR,RADIATOR CAP

16073-0961

$22.25

39061

RADIATOR-ASSY

39061-0860

$248.08

49085

CAP-ASSY-PRESSURE

49085-0005

$45.60

49134

SHROUD,RH

49134-0018

$14.02

49134A

SHROUD,LH

49134-0019

$14.02

59502

FAN-ASSY

59502-0643

$112.87

92039

RIVET

92039-0776

$1.19

92071

GROMMET

92071-0827

$3.45

92072

BAND,L=123

92072-030

$5.00

92152

COLLAR

92152-2922

$8.50

92152A

COLLAR

92152-2923

$11.84

92153

BOLT

92153-1806

$3.95

130

BOLT-FLANGED,6X18

130BA0618

$1.54

130A

BOLT-FLANGED,6X60

130BA0660

$4.25

130B

BOLT-FLANGED,8X16

130BA0816

$1.12
