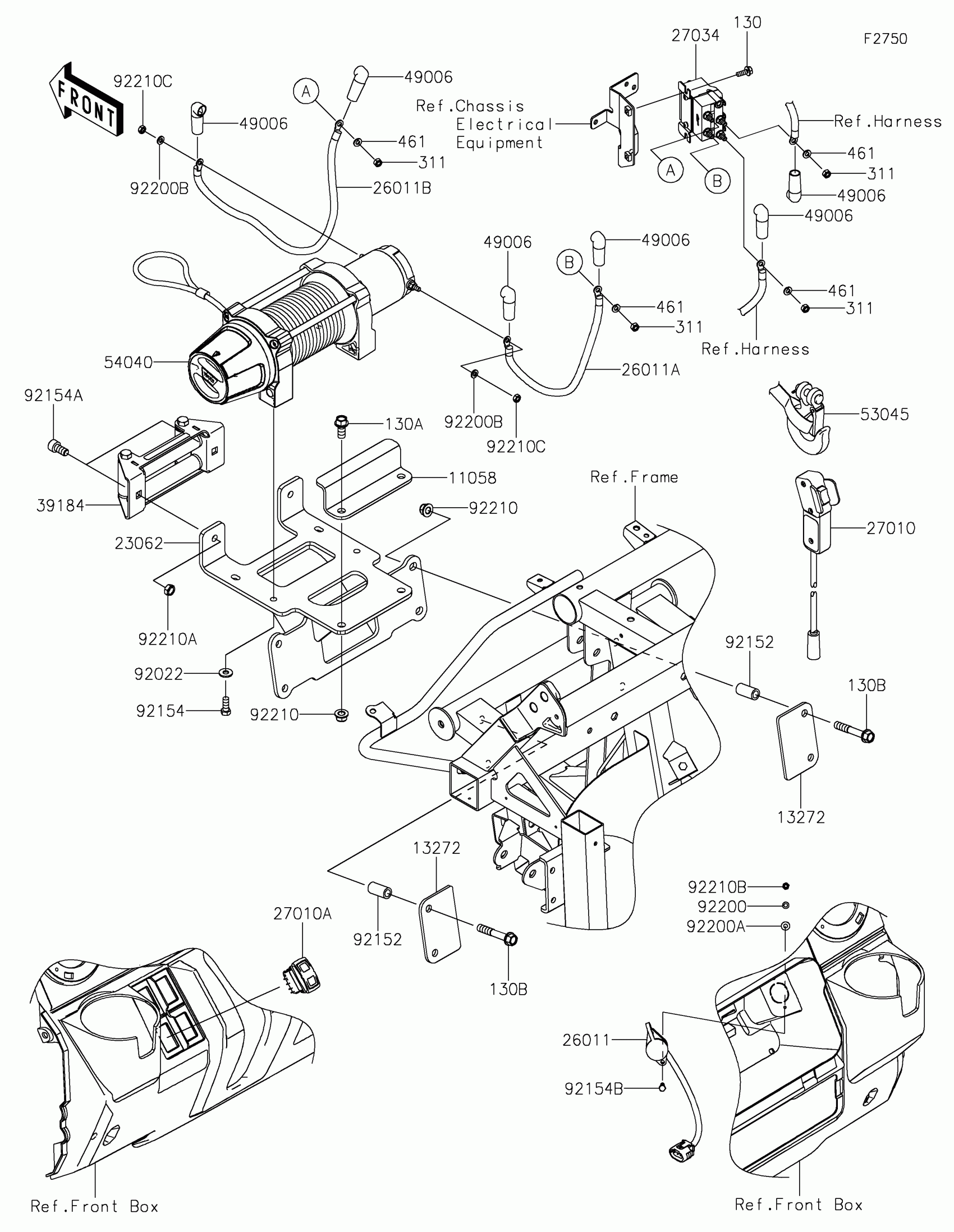

Kawasaki RIDGE® RANCH EDITION Other Diagram
#
Description
Price
11058
BRACKET,WINCH
11058-0260
$13.03
13272
PLATE,WINCH
13272-4293
$10.05
23062
BRACKET-COMP,WINCH
23062-1390
$99.77
26011
WIRE-LEAD,REMOTE SWITCH
26011-0935
$117.17
26011A
WIRE-LEAD,BLUE
26011-2430
$11.40
26011B
WIRE-LEAD,YELLOW
26011-2431
$13.59
27010
SWITCH,REMOTE
27010-0820
$127.23
27010A
SWITCH
27010-0985
$37.96
27034
RELAY,CONTROLLER
27034-0018
$194.41
39184
BRACKET-ASSY
39184-0742
$60.76
49006
BOOT
49006-0601
$2.64
53045
HOOK-ASSY
53045-0028
$24.79
54040
WINCH
54040-0008
$367.17
92022
WASHER,8.2X19X2
92022-1533
$5.52
92152
COLLAR,10.4X15.9X31.7
92152-3803
$5.65
92154
BOLT,8X20
92154-1876
$2.66
92154A
BOLT,SOCKET,10X20
92154-1877
$3.54
92154B
BOLT,5X20
92154-1879
$2.90
92200
WASHER,5 LOCK
92200-1777
$0.99
92200A
WASHER
92200-1778
$0.90
92200B
WASHER,6.4X12X1.8
92200-2358
$0.49
92210
NUT,LOCK,FLANGED,10MM
92210-0276
$2.61
92210A
NUT,LOCK,M10
92210-1432
$1.52
92210B
NUT,M5X0.80
92210-1435
$1.13
92210C
NUT,6MM
92210-1792
$2.97
130
BOLT-FLANGED,6X16
130BA0616
$1.20
130A
BOLT-FLANGED,10X22
130BA1022
$1.94
130B
BOLT-FLANGED,10X60
130BA1060
$3.63
311
NUT-HEX,6MM
311BA0600
$2.23
461
WASHER-SPRING,6MM
461DA0600
$0.71
