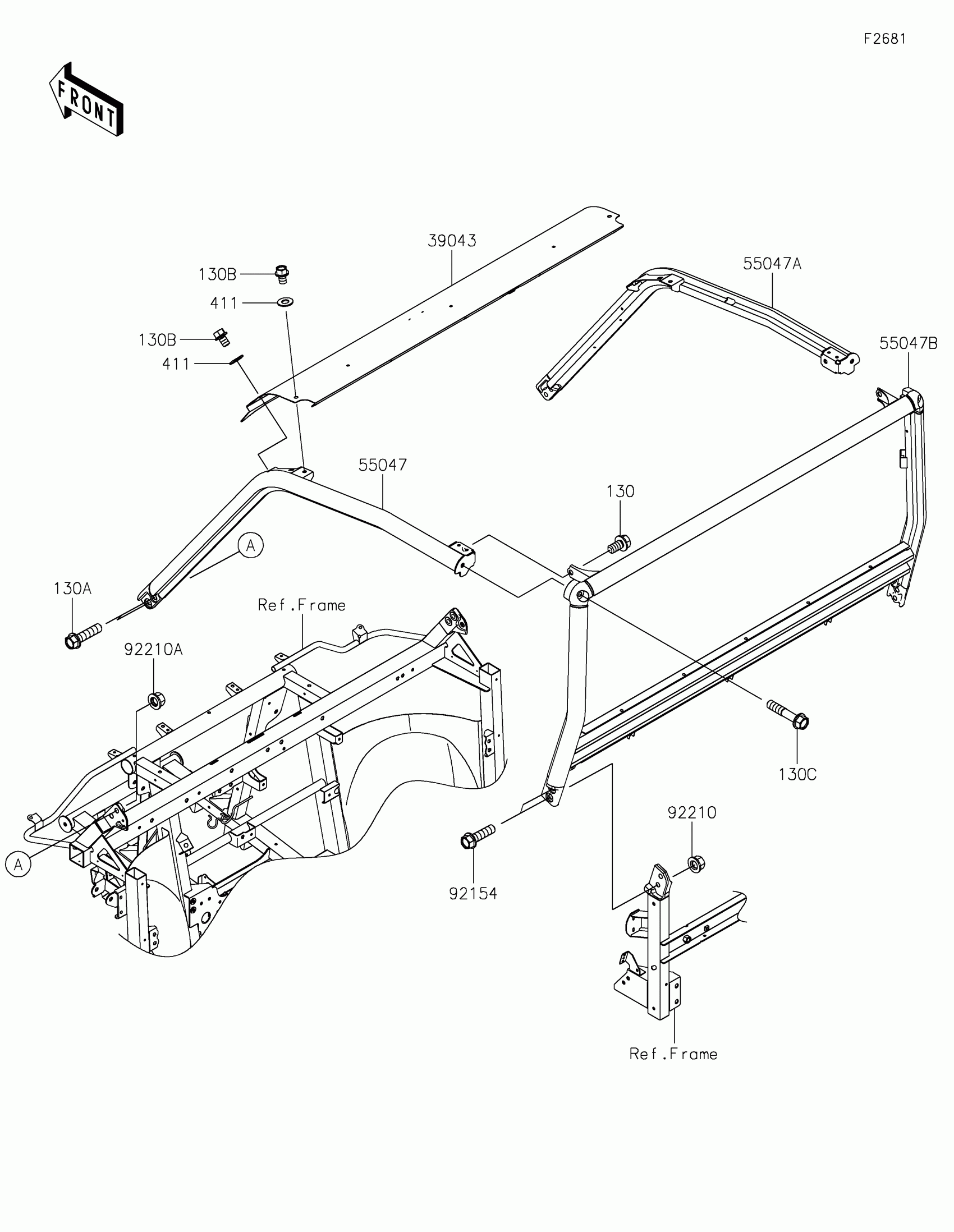

Kawasaki RIDGE® RANCH EDITION Guards/Cab Frame Diagram

Description

Price

39043

CROSSMEMBER-COMP,UPP,FR,T.BLK

39043-0037-388

$130.59

55047

BAR-COMP,LH,FR,T.BLACK

55047-0412-388

$386.00

55047A

BAR-COMP,RH,FR,T.BLACK

55047-0413-388

$386.75

55047B

BAR-COMP,RR,T.BLACK

55047-0414-388

$610.73

92154

BOLT,FLANGED,12X45

92154-1420

$3.56

92210

NUT,12MM

92210-0603

$8.98

92210A

NUT,FLANGED,12MM

92210-1932

$3.48

130

BOLT-FLANGED,12X22

130BA1222

$3.04

130A

BOLT-FLANGED,12X50

130BB1250

$5.02

130B

BOLT-FLANGED,10X14

130CA1014

$3.35

130C

BOLT-FLANGED,12X60

130CB1260

$7.61

411

WASHER-PLAIN,10MM

411AA1000

$0.96
