2025 Kawasaki Ridge® Ranch Edition Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2025 Kawasaki Ridge® Ranch Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

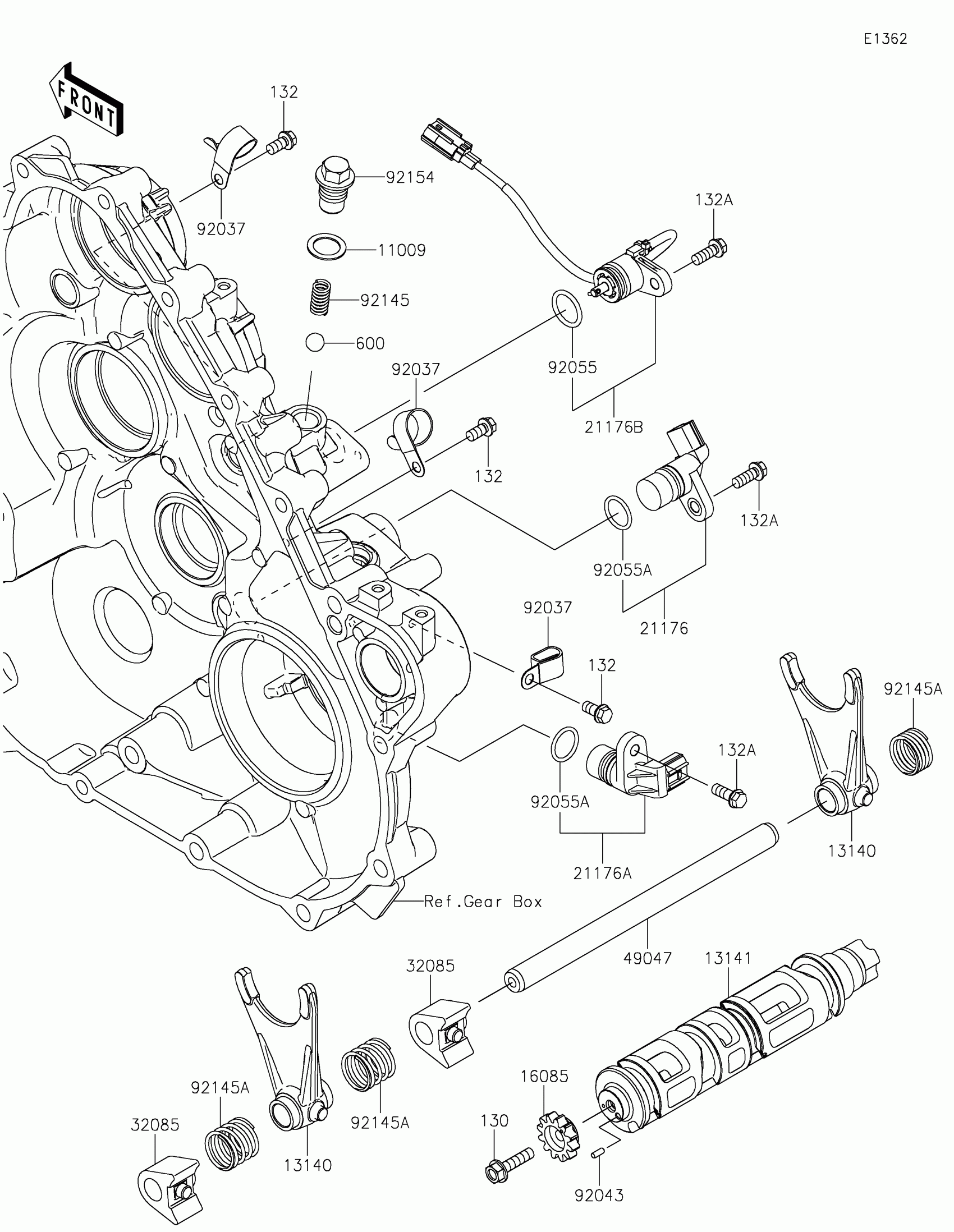

2025 Kawasaki Ridge® Ranch Edition Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,15.5X22X1

11009-1008

1

$2.92

In stock

13140

FORK-SHIFT

13140-0693

1

$58.07

In stock

13141

DRUM-CHANGE

13141-0618

1

$265.88

In stock

16085

GEAR,12T

16085-0738

1

$95.93

In stock

21176

SENSOR,ROTATION

21176-0767

1

$66.76

In stock

21176A

SENSOR,SPEED

21176-0891

1

$84.34

In stock

21176B

1

$171.47

In stock

32085

STOPPER

32085-0901

1

$84.40

In stock

49047

ROD-SHIFT

49047-0641

1

$74.55

In stock

92037

CLAMP

92037-1993

1

$4.37

In stock

92043

PIN,3X8

92043-1716

1

$0.69

In stock

92055

RING-O

92055-0917

1

$3.27

In stock

92055A

RING-O

92055-1639

1

$2.49

In stock

92145

SPRING

92145-1590

1

$2.92

In stock

92145A

SPRING

92145-2315

1

$2.75

In stock

92154

1

$15.36

In stock

130

BOLT-FLANGED,6X25

130CA0625

1

$3.53

In stock

132

1

$1.12

In stock

132A

1

$1.21

In stock

600

1

$0.90

In stock
