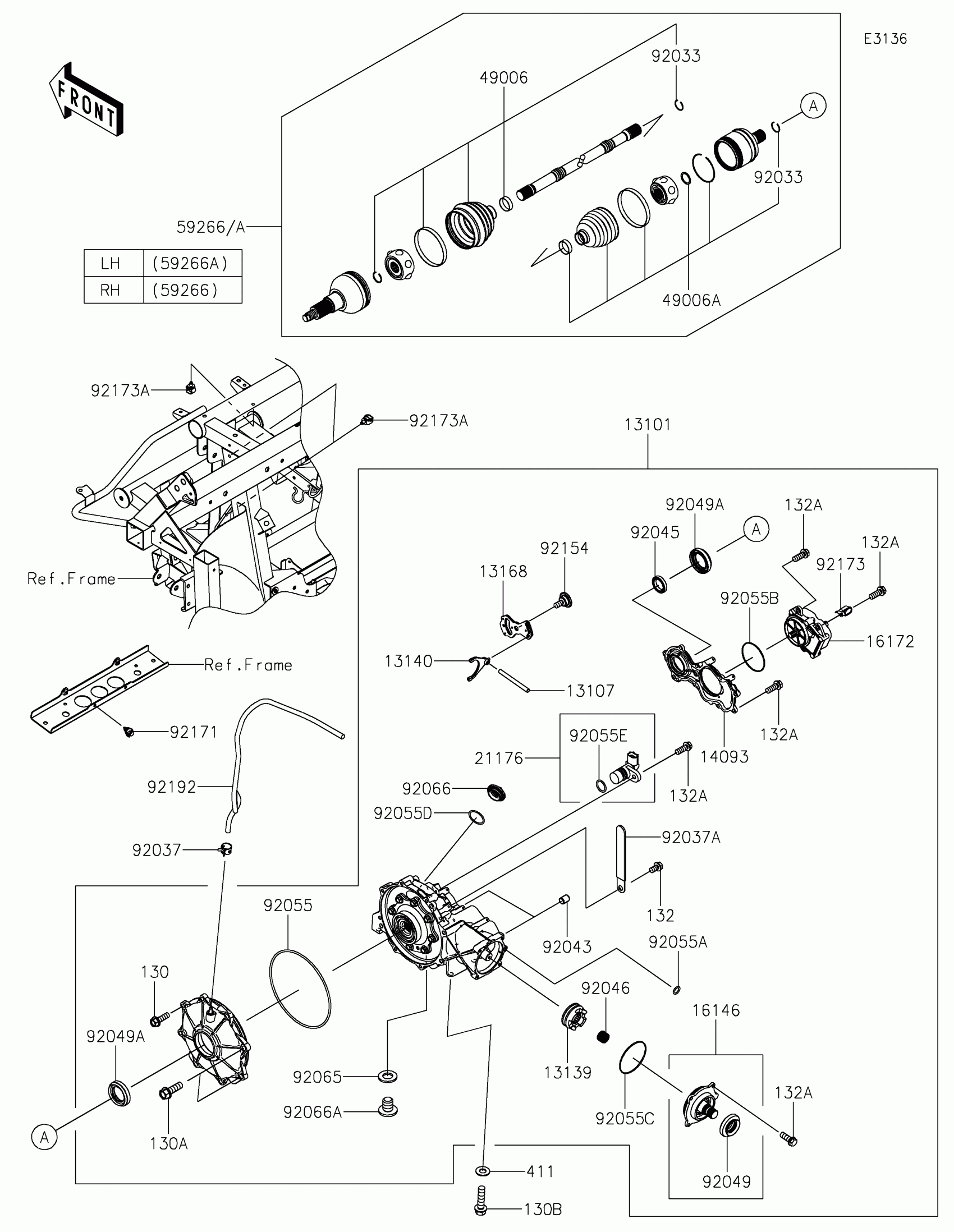

Kawasaki RIDGE® RANCH EDITION Drive Shaft-Front Diagram

#

Description
Price

13101

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0727

$1,846.72

13107

SHAFT

13107-0887

$4.47

13139

SHIFTER

13139-0039

$105.23

13140

FORK-SHIFT

13140-0675

$24.32

13168

LEVER

13168-0920

$50.14

14093

COVER,RH

14093-0707

$141.74

16146

COVER-ASSY,INPUT SHAFT

16146-0740

$113.39

16172

ACTUATOR

16172-0030

$652.25

21176

SENSOR,SPEED

21176-0891

$82.37

49006

BOOT,OUTSIDE

49006-0655

$110.46

49006A

BOOT,INSIDE

49006-0656

$110.46

59266

JOINT-BALL,RH

59266-0777

$607.00

59266A

JOINT-BALL,LH

59266-0778

$607.00

92033

RING-SNAP

92033-0837

$4.67

92037

CLAMP,TUBE

92037-1505

$3.63

92037A

CLAMP

92037-1993

$4.18

92043

PIN,DOWEL,8X10

92043-1302

$0.84

92045

BEARING-BALL,6806

92045-0826

$46.71

92046

BEARING-NEEDLE

92046-1234

$18.66

92049

SEAL-OIL

92049-0160

$9.82

92049A

SEAL-OIL,TC9Y 40X62X10X17.2

92049-0815

$10.31

92055

RING-O,190.2X4.2

92055-0121

$19.14

92055A

RING-O,7.5X1.5

92055-0756

$1.03

92055B

RING-O,1.9X71.8

92055-0781

$2.30

92055C

"O" RING

92055-081

$13.51

92055D

RING-O,35.8MM

92055-1281

$5.61

92055E

RING-O

92055-1639

$2.15

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,36X7.5

92066-0744

$6.28

92066A

PLUG,12X15

92066-0943

$13.75

92154

BOLT

92154-4462

$14.08

92171

CLAMP,13MM DIA.

92171-1415

$1.69

92173

CLAMP

92173-0059

$7.47

92173A

CLAMP,12MM DIA.

92173-0736

$3.85

92192

TUBE,5.8X10.8X940

92192-2805

$17.63

130

BOLT-FLANGED,8X25

130CA0825

$1.13

130A

BOLT-FLANGED,10X30

130CA1030

$1.93

130B

BOLT-FLANGED,10X40

130CA1040

$2.29

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

411

WASHER-PLAIN,10MM

411AA1000

$0.81
