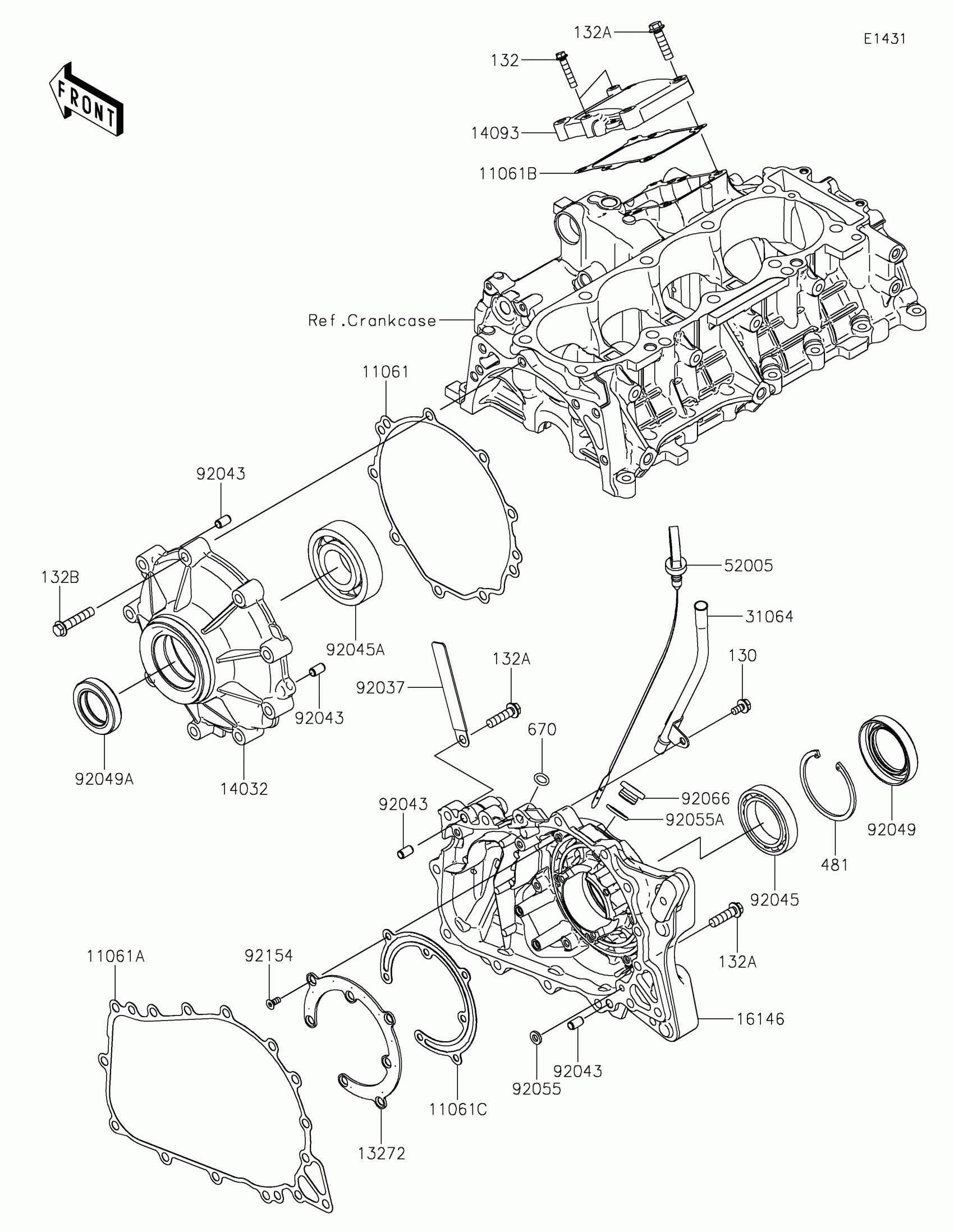

Kawasaki RIDGE® RANCH EDITION Engine Cover(s) Diagram

Description

Price

11061

GASKET,CLUTCH COVER

11061-1451

$35.78

11061A

GASKET,CRANKCASE COVER

11061-1454

$37.68

11061B

GASKET

11061-1456

$11.60

11061C

GASKET,GENERATOR COVER

11061-1483

$22.35

13272

PLATE,GENERATOR

13272-4093

$73.57

14032

COVER-CLUTCH

14032-0699

$126.88

14093

COVER

14093-1359

$70.30

16146

COVER-ASSY,GENERATOR

16146-0900

$250.38

31064

PIPE-COMP

31064-0799

$25.22

52005

GAUGE,OIL

52005-0785

$24.78

92037

CLAMP,HARNESS,L=100

92037-1636

$7.68

92043

PIN,6.2X8X14

92043-1263

$0.43

92045

BEARING-BALL,6909C3

92045-0968

$33.69

92045A

BEARING-BALL,2TS2-6307UC3

92045-0969

$47.50

92049

SEAL-OIL

92049-0867

$13.52

92049A

SEAL-OIL

92049-0868

$11.43

92055

RING-O,OD=13

92055-074

$8.58

92055A

RING-O,20X2

92055-1146

$8.58

92066

PLUG,COVER

92066-0011

$15.94

92154

BOLT,5X12

92154-4490

$1.69

130

BOLT-FLANGED,6X12

130BA0612

$1.72

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

132A

BOLT-FLANGED-SMALL,8X30

132BA0830

$4.45

132B

BOLT-FLANGED-SMALL,8X40

132BA0840

$5.05

481

CIRCRIP-TYPE-C,68MM

481J6800

$7.74

670

O RING,10MM

670D2010

$1.94
