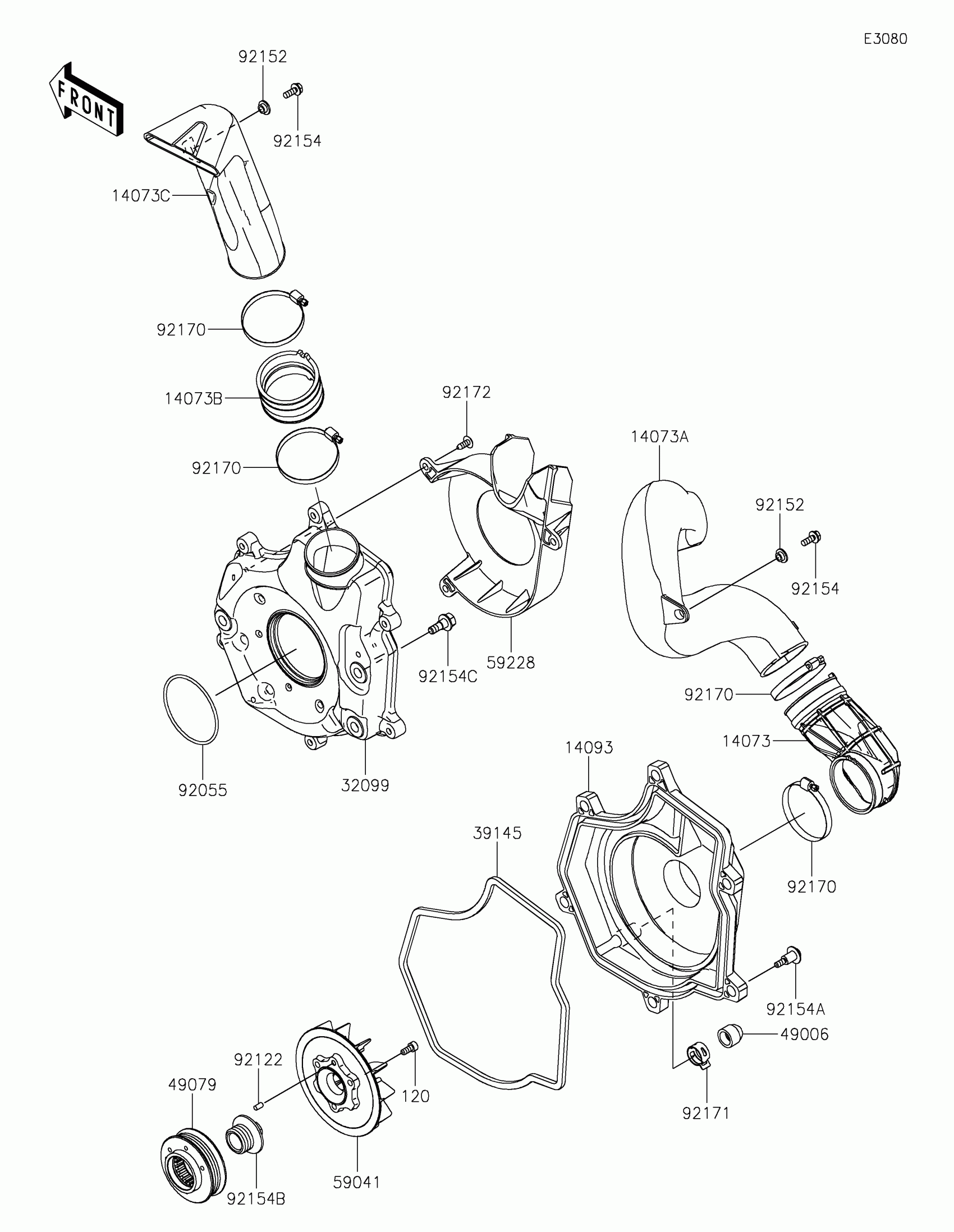

Kawasaki RIDGE® RANCH EDITION Compressor Diagram

Description

Price

14073

DUCT,JOINT INTAKE

14073-1896

$11.40

14073A

DUCT,INTAKE

14073-1897

$36.38

14073B

DUCT,JOINT EXHAUST

14073-1898

$4.35

14073C

DUCT,EXHAUST

14073-1899

$58.70

14093

COVER,FAN

14093-1389

$85.18

32099

CASE,FAN

32099-0827

$162.85

39145

TRIM-SEAL

39145-0754

$40.11

49006

BOOT,DRAIN

49006-0560

$6.57

49079

PULLEY-BELT

49079-0030

$153.66

59041

FAN

59041-0036

$105.82

59228

LOUVER

59228-0004

$52.56

92055

RING-O,77.1X3.1

92055-1740

$6.21

92122

ROLLER

92122-0569

$0.74

92152

COLLAR,6.5X10X5.6

92152-0445

$4.92

92154

BOLT,FLANGED,6X16

92154-0887

$1.63

92154A

BOLT,CVT COVER

92154-1522

$3.26

92154B

BOLT,PULLEY

92154-7011

$95.72

92154C

BOLT,FAN CASE

92154-7013

$3.76

92170

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-0329

$8.89

92172

SCREW,6X16

92172-0284

$1.34

120

BOLT-SOCKET,6X14

120CA0614

$4.10
