Description

Price

13107

SHAFT,WATER PUMP BODY

13107-0894

$19.31

16142

COVER-PUMP

16142-0772

$161.42

16160

BODY,WATER PUMP

16160-0858

$98.88

39062

HOSE-COOLING,7.5X10.5X280

39062-1949

$9.54

49063

SEAL-MECHANICAL

49063-1055

$18.61

59256

IMPELLER

59256-0017

$43.15

92005

FITTING

92005-1482

$21.85

92022

WASHER OIL PUMP BANJO

92022-077

$3.13

92022A

WASHER,6.2X11X1

92022-304

$2.92

92026

SPACER

92026-0952

$10.42

92037

CLAMP

92037-2113

$0.97

92045

BEARING-BALL,6901

92045-1246

$26.96

92049

SEAL-OIL

92049-0798

$26.48

92055

RING-O,28.7X2.4

92055-0922

$3.70

92055A

RING-O,WATER PUMP COVER

92055-1736

$7.61

92154

BOLT,6X22

92154-2832

$2.46

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.12

132A

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.29

132B

BOLT-FLANGED-SMALL,6X45

132BA0645

$3.53

132C

BOLT-FLANGED-SMALL,6X75

132BB0675

$4.63

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.67

551

PIN-DOWEL,4X8

551A0408

$0.80

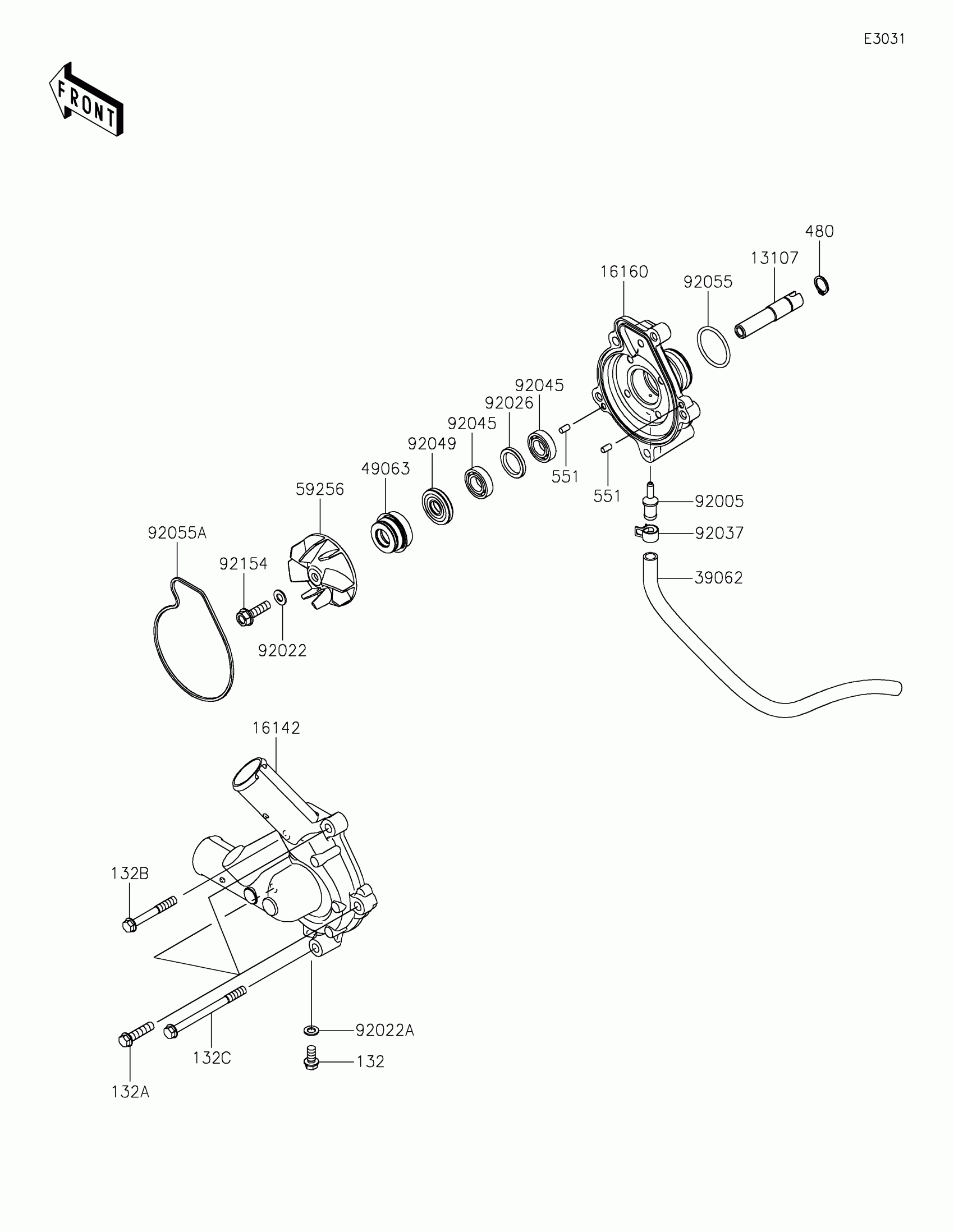

Kawasaki Ridge Limited Water Pump Diagram
