2025 Kawasaki Ridge Limited Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2025 Kawasaki Ridge Limited, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

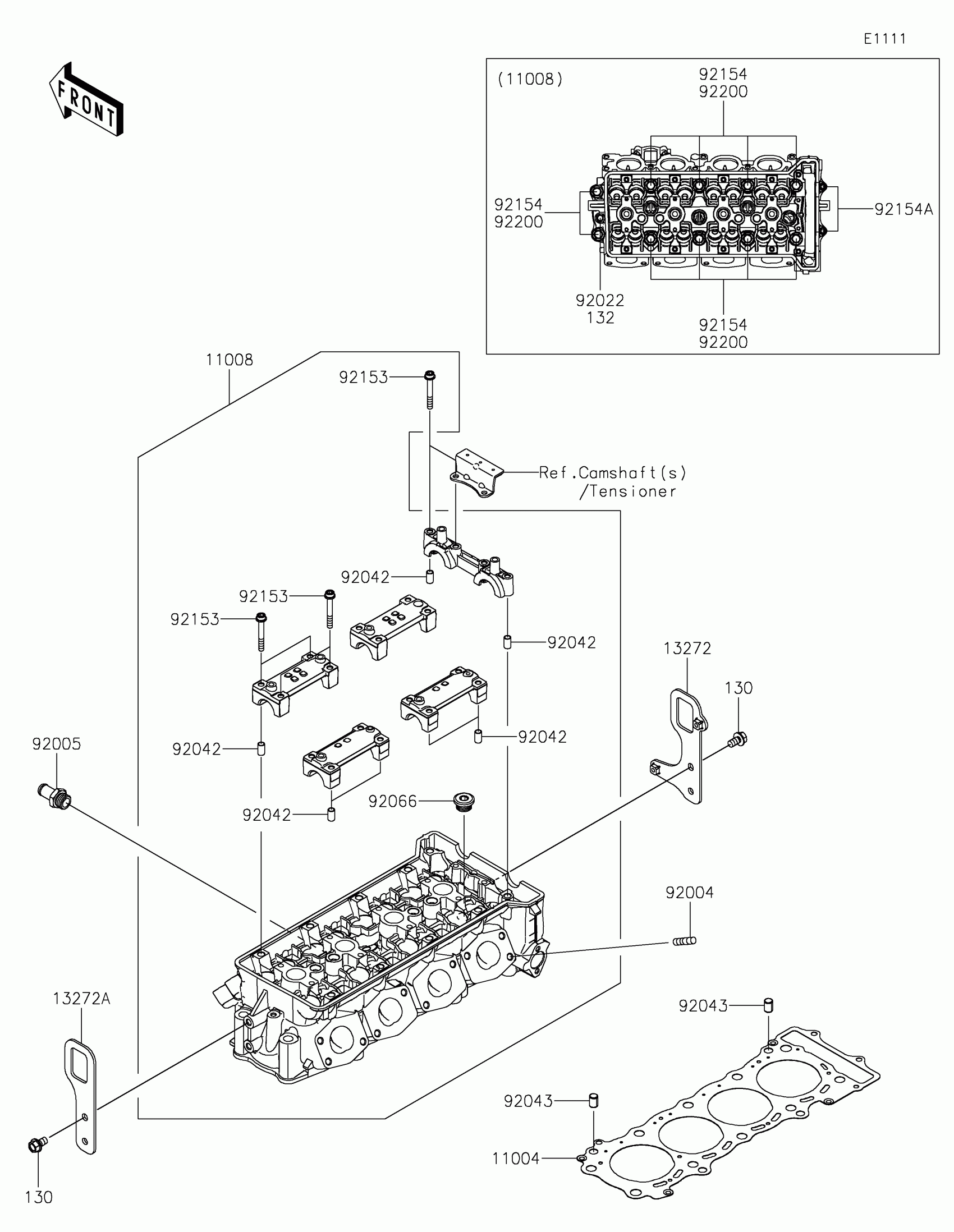

2025 Kawasaki Ridge Limited Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0814

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1556

1
Out of stock

13272

PLATE,ENG HANGING RH

13272-4176

1
Out of stock

13272A

PLATE,ENG HANGING LH

13272-4177

1
Out of stock

92004

STUD,8X22

92004-0025

1
Out of stock

92005

FITTING

92005-1446

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92066

PLUG,18X10

92066-0832

1
Out of stock

92153

BOLT,SOCKET,6X45

92153-0656

1
Out of stock

92154

BOLT,11X157

92154-3931

1
Out of stock

92154A

BOLT,6X87

92154-7025

1
Out of stock

92200

WASHER,11.2X18.2X1.8

92200-0940

1
Out of stock

130

BOLT-FLANGED,8X14

130CA0814

1

$1.32

In stock

132

1

$1.47

In stock
