Rear Brake

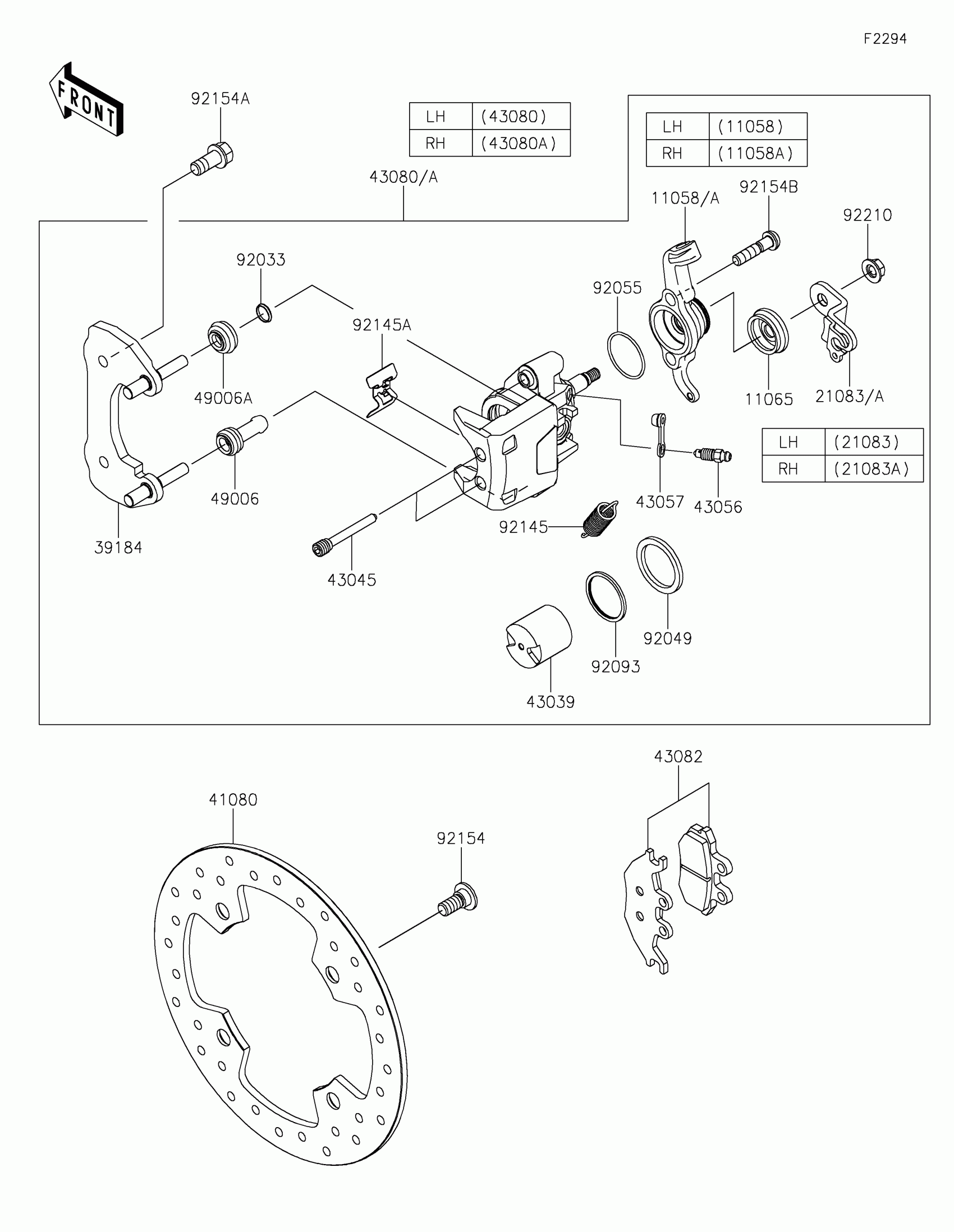

Kawasaki Ridge Limited Rear Brake Diagram
#
Description
Price
11058
BRACKET,CALIPER,RR,LH
11058-2318
$91.81
11058A
BRACKET,CALIPER,RR,RH
11058-2319
$91.81
11065
CAP
11065-0870
$3.71
21083
ARM,BRAKE,RR,LH
21083-0771
$23.87
21083A
ARM,BRAKE,RR,RH
21083-0772
$23.87
39184
BRACKET-ASSY,RR
39184-0753
$93.30
41080
DISC,BRAKE
41080-0746
$89.73
43039
PISTON-BRAKE
43039-0027
$96.58
43045
SHAFT-CALIPER
43045-Y002
$13.45
43056
BREATHER-BRAKE
43056-0055
$12.73
43057
CAP-BREATHER
43057-0552
$5.01
43080
CALIPER-SUB-ASSY,RR,LH
43080-0252
$495.24
43080A
CALIPER-SUB-ASSY,RR,RH
43080-0253
$495.24
43082
PAD-ASSY-BRAKE,RR
43082-0209
$106.14
49006
BOOT
49006-0591
Unavailable
49006A
BOOT
49006-0592
Unavailable
92033
RING-SNAP
92033-0864
$4.86
92049
SEAL-OIL
92049-0765
Unavailable
92055
RING-O
92055-0795
$3.20
92093
SEAL
92093-0613
$5.28
92145
SPRING,RETURN,47MM
92145-1690
$5.24
92145A
SPRING,PAD
92145-2364
$7.23
92154
BOLT,SOCKET,10X23
92154-0713
$4.10
92154A
BOLT,FLANGED,10X22
92154-1327
$2.75
92154B
BOLT,FLANGE,6X40
92154-Y228
$4.92
92210
NUT
92210-2216
$8.40
