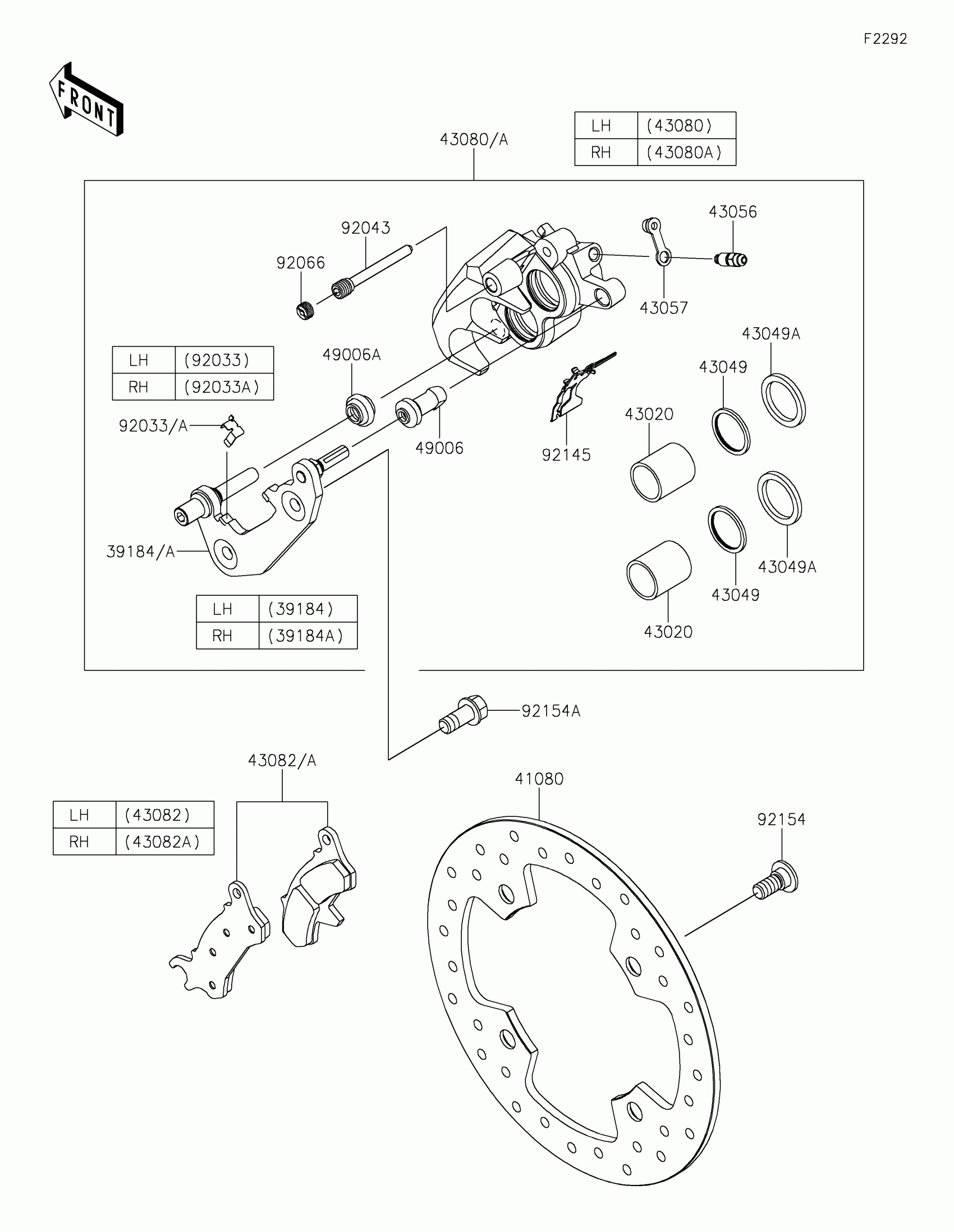

Kawasaki Ridge Limited Front Brake Diagram

Description

Price

39184

BRACKET-ASSY,FR,LH

39184-0751

$59.03

39184A

BRACKET-ASSY,FR,RH

39184-0752

$59.03

41080

DISC,BRAKE

41080-0746

$89.73

43020

PISTON-COMP-BRAKE

43020-0054

$43.17

43049

PACKING

43049-0556

$17.57

43049A

PACKING

43049-0557

$9.97

43056

BREATHER-BRAKE

43056-0055

$12.73

43057

CAP-BREATHER

43057-0552

$5.01

43080

CALIPER-SUB-ASSY,FR,LH

43080-0250

$374.52

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0251

$374.52

43082

PAD-ASSY-BRAKE,FR,LH

43082-0207

$80.56

43082A

PAD-ASSY-BRAKE,FR,RH

43082-0208

$80.56

49006

BOOT

49006-0565

$10.79

49006A

BOOT

49006-0566

$5.24

92033

RING-SNAP

92033-0862

$6.45

92033A

RING-SNAP

92033-0863

$6.45

92043

PIN,PAD

92043-1834

$17.85

92066

PLUG,PIN

92066-1614

$2.78

92145

SPRING,PAD

92145-2363

$29.15

92154

BOLT,SOCKET,10X23

92154-0713

$4.10

92154A

BOLT,FLANGED,10X22

92154-1327

$2.75
