Description

Price

13272

PLATE,FR TUNNEL

13272-4215

$17.43

14093

COVER,FR GEAR,SIDE

14093-0839

$3.79

14093A

COVER,TUNNEL,CNT

14093-1330

$38.73

14093B

COVER,A PILLAR,LH

14093-1369

$11.93

14093C

COVER,A PILLAR,RH

14093-1370

$11.93

16073

INSULATOR,FR PANEL

16073-0946

$23.84

16073A

INSULATOR,FR TUNNEL&BACK PANEL

16073-0947

$21.59

16073B

INSULATOR,FR PANEL,RH

16073-0963

$29.49

16073C

INSULATOR,FR PANEL,LH,LWR

16073-0964

$15.03

16073D

INSULATOR,FR PANEL,LH,CNT

16073-0965

$11.96

16073E

INSULATOR,FR PANEL,LH,UPP

16073-0966

$13.57

39320

FLOOR,PANEL,LH

39320-0001

$44.68

39320A

FLOOR,PANEL,RH

39320-0002

$42.88

39350

PANEL,FR

39350-0006

$158.72

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92039

RIVET

92039-0046

$3.90

92039A

RIVET

92039-0776

$1.19

92066

PLUG,FR PANEL

92066-1599

$3.26

92072

BAND,L=123

92072-030

$5.00

92093

SEAL,6X6X195

92093-0781

$3.26

92093A

SEAL,10X10X500

92093-0784

$15.75

92093B

SEAL,10X10X110

92093-0785

$2.80

92093C

SEAL,10X10X60

92093-0786

$1.86

92093D

SEAL,6X17X220

92093-0813

$3.68

92093E

SEAL,6X6X50

92093-0817

$2.25

92093F

SEAL,3X5X310

92093-0818

$4.52

92093G

SEAL,3X5X500

92093-0819

$11.62

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

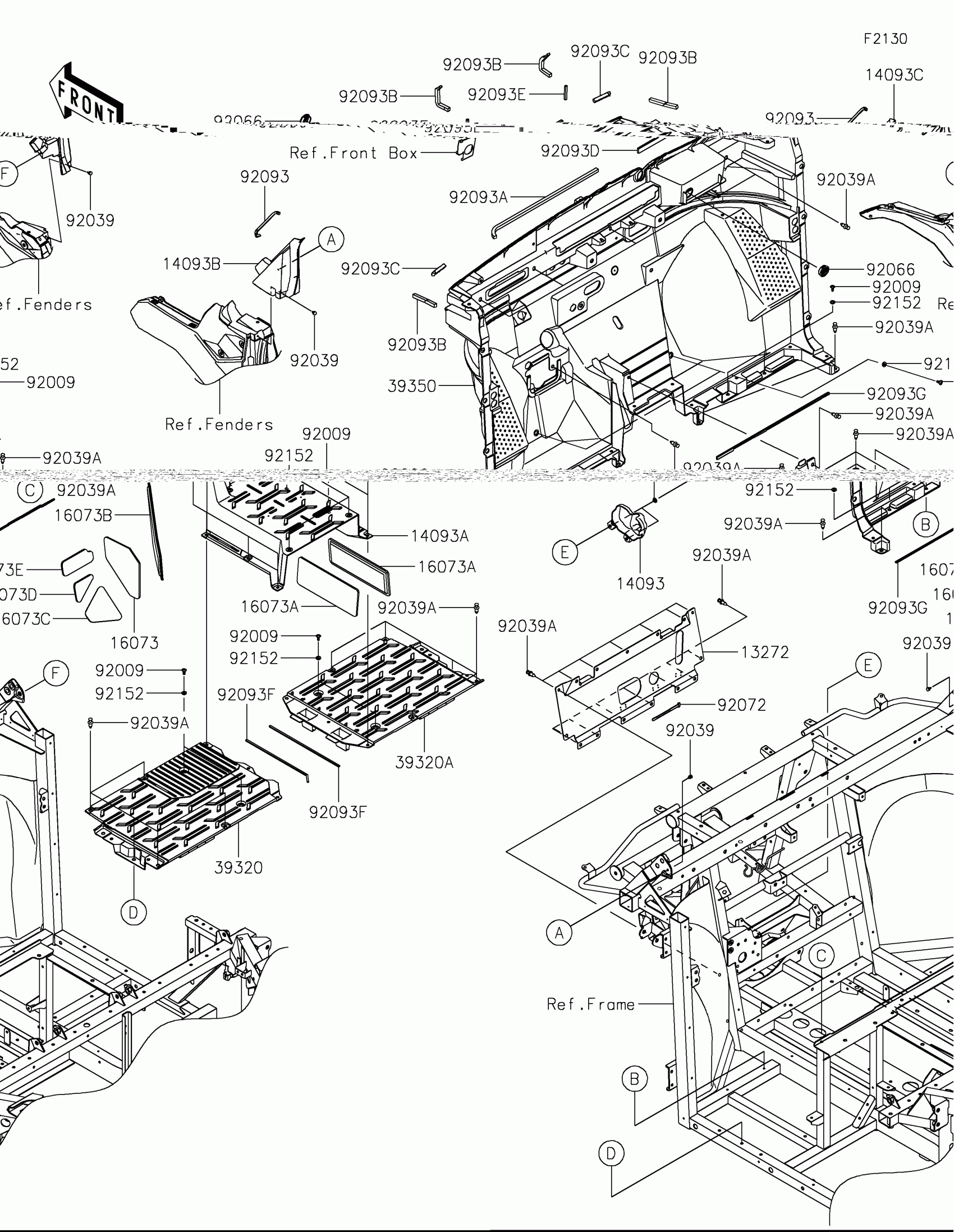

Kawasaki Ridge Limited Frame Fittings(Front) Diagram

PLATE,FR TUNNEL

COVER,FR GEAR,SIDE

COVER,TUNNEL,CNT

COVER,A PILLAR,LH

COVER,A PILLAR,RH

INSULATOR,FR PANEL

INSULATOR,FR TUNNEL&BACK PANEL

INSULATOR,FR PANEL,RH

INSULATOR,FR PANEL,LH,LWR

INSULATOR,FR PANEL,LH,CNT

INSULATOR,FR PANEL,LH,UPP

FLOOR,PANEL,LH

FLOOR,PANEL,RH

PANEL,FR

SCREW,TAPPING,6X16

RIVET

RIVET

PLUG,FR PANEL

BAND,L=123

SEAL,6X6X195

SEAL,10X10X500

SEAL,10X10X110

SEAL,10X10X60

SEAL,6X17X220

SEAL,6X6X50

SEAL,3X5X310

SEAL,3X5X500

COLLAR,6.3X9.5X4.1
