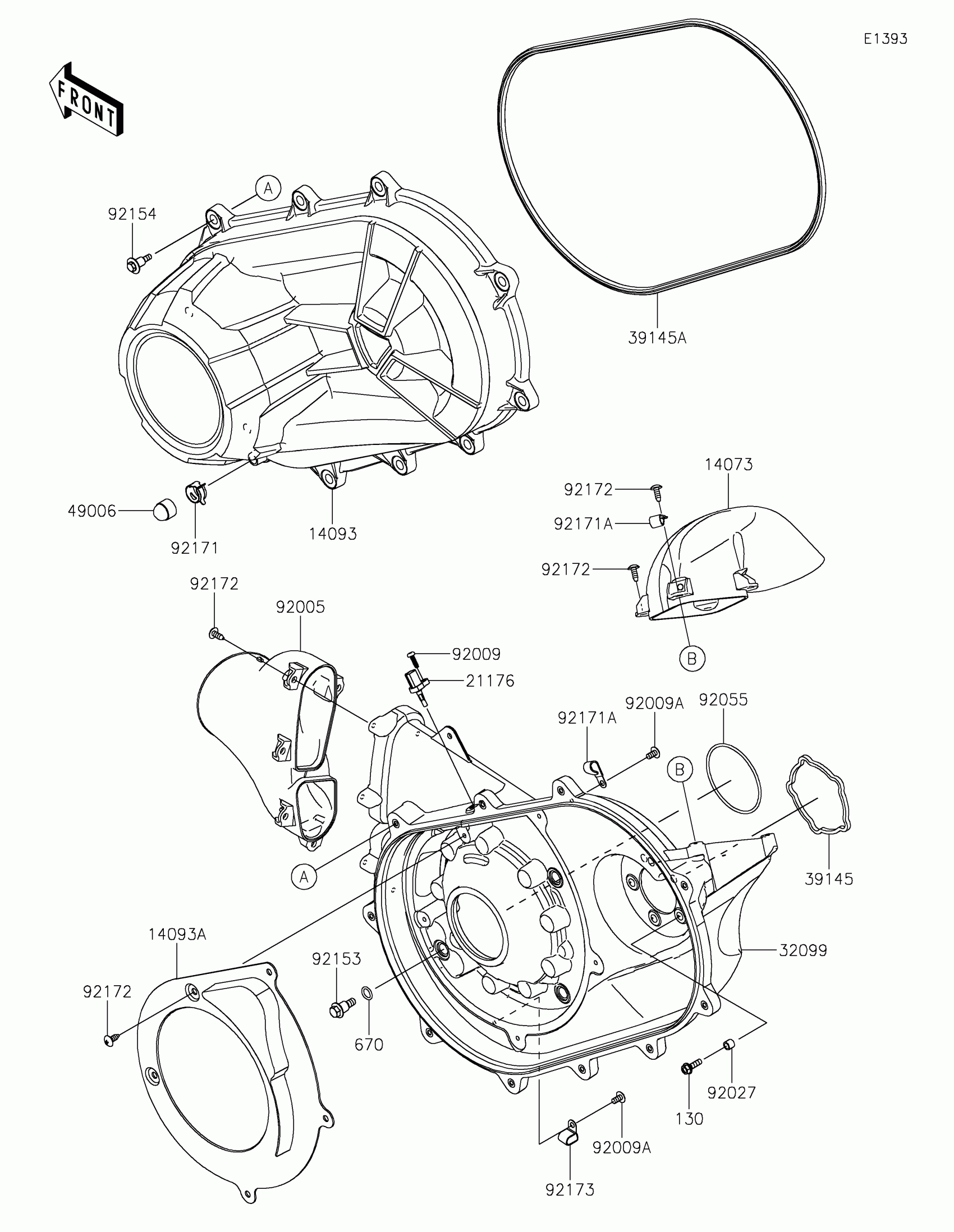

Kawasaki Ridge Limited Converter Cover Diagram

Description

Price

14073

DUCT,EXHAUST

14073-1915

$176.37

14093

COVER,CVT

14093-1453

$142.58

14093A

COVER,AIR GUIDE

14093-1454

$53.29

21176

SENSOR,AIR TEMPERATURE

21176-0048

$24.07

32099

CASE,CVT

32099-0829

$239.22

39145

TRIM-SEAL

39145-0714

$6.33

39145A

TRIM-SEAL,CVT COVER

39145-0760

$56.32

49006

BOOT,DRAIN

49006-3718

$5.24

92005

FITTING,INTAKE

92005-1450

$128.29

92009

SCREW,TAPPING,5X16

92009-1264

$2.51

92009A

SCREW,6X12

92009-1480

$2.59

92027

COLLAR,6.8X10X8.5

92027-129

$3.97

92055

RING-O,84.4X3.1

92055-0916

$3.70

92153

BOLT,8X26.5

92153-0594

$4.08

92154

BOLT,CVT COVER

92154-1522

$2.63

92171

CLAMP

92171-0329

$7.06

92171A

CLAMP

92171-0739

$4.95

92172

SCREW,6X16

92172-0284

$0.94

92173

CLAMP

92173-2439

$5.27

130

BOLT-FLANGED,6X20

130BA0620

$1.49

670

O RING,12MM

670D2012

$2.19
