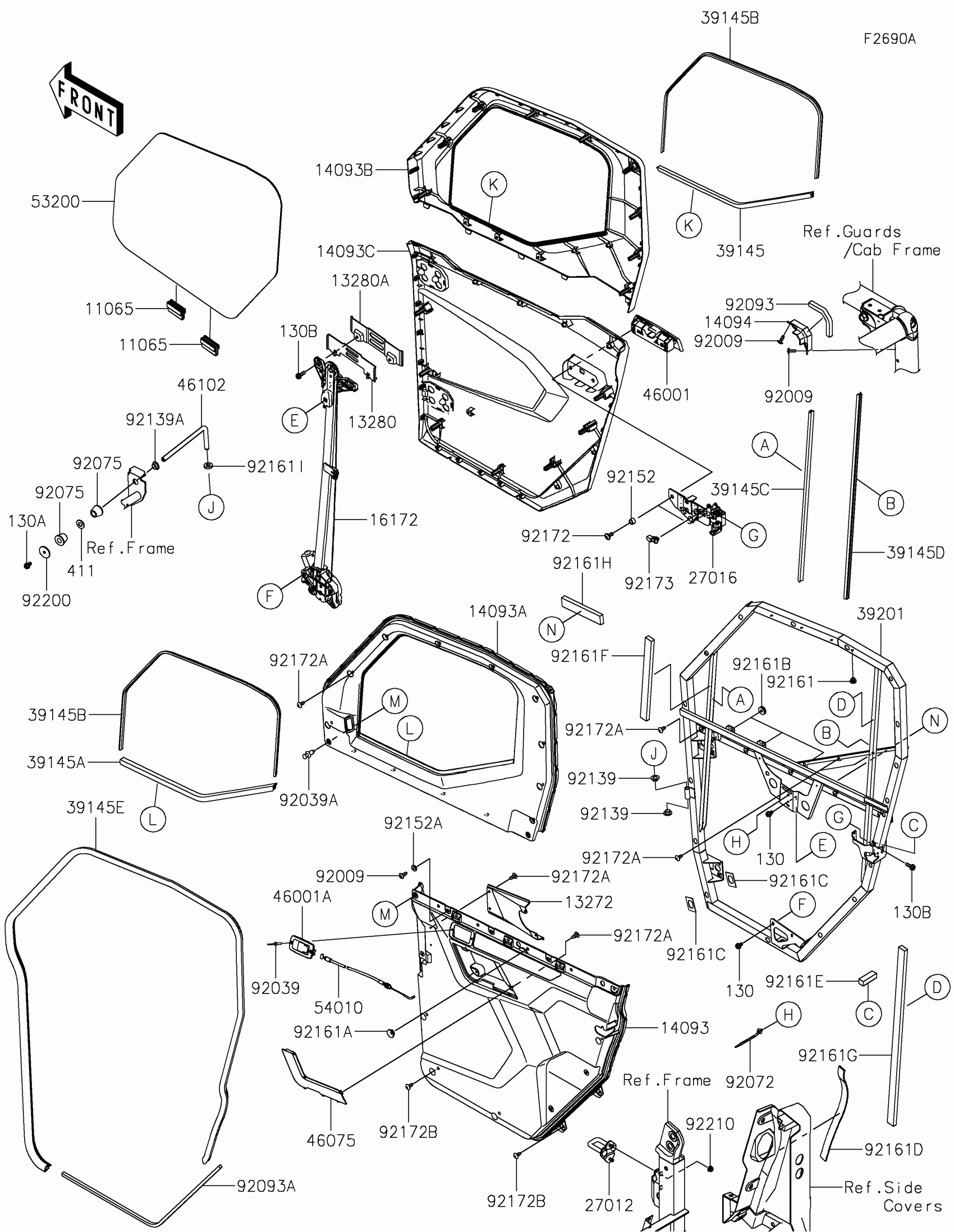

Kawasaki Ridge Limited Door(RH) Diagram

#

Description
Price

11065

CAP,WINDOW ACTUATOR

11065-1432

$1.39

13272

PLATE,FULL DOOR,RH

13272-4429

$17.25

13280

HOLDER,WINDOW,INNER

13280-1342

$8.68

13280A

HOLDER,WINDOW,OUTER

13280-1343

$9.75

14093

COVER,FULL DOOR,RH,INNER

14093-1317

$95.97

14093A

COVER,FULL DOOR,RH,INNER,UPP

14093-1367

$73.88

14093B

COVER,FULL DOOR,RH,OUTER,UPP

14093-1368

$62.10

14093C

COVER,FULL DOOR,RH,OUTER,EBONY

14093-1430-H8

$474.34

14094

COVER,DOOR,CORNER

14094-0146

$9.19

16172

ACTUATOR,WINDOW,RH

16172-0564

$425.31

27012

HOOK,DOOR

27012-0860

$6.51

27016

LOCK-ASSY,FR DOOR,RH

27016-0115

$210.55

27016A

LOCK-ASSY,DOOR,RH

27016-0122

$183.42

39145

TRIM-SEAL,WINDOW,LWR

39145-0745

$17.66

39145A

TRIM-SEAL,WINDOW,LWR

39145-0763

$17.66

39145B

TRIM-SEAL,WINDOW,UPP

39145-0796

$6.59

39145C

TRIM-SEAL,FULL DOOR,RAIL,FR

39145-0799

$18.81

39145D

TRIM-SEAL,FULL DOOR,RAIL,RR

39145-0800

$16.12

39145E

TRIM-SEAL,FULL DOOR

39145-0801

$40.26

39201

FRAME-COMP-DOOR,FULL,RH

39201-0010

$416.87

46001

HANDLE-ASSY,DOOR,OUTER

46001-0017

$24.91

46001A

HANDLE-ASSY,DOOR,INNER

46001-0026

$24.03

46075

GRIP,DOOR,INNNER,RH

46075-0666

$4.32

46102

ROD,DOOR,RH

46102-0682

$41.53

53200

WINDOW,GLASS

53200-0001

Unavailable

54010

CABLE,DOOR HANDLE

54010-0653

$16.61

54010A

CABLE,FR DOOR HANDLE

54010-0671

$16.54

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92039

RIVET,4.0X17.5

92039-0703

$0.84

92039A

RIVET

92039-0776

$0.80

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92075

DAMPER,HANDLE HOLDER

92075-039

$3.57

92093

SEAL,10X10X110

92093-0785

$2.29

92093A

SEAL

92093-0792

$17.03

92139

BUSHING

92139-0230

$4.10

92139A

BUSHING

92139-1241

$1.88

92152

COLLAR,6.5X8.5X5.5

92152-0612

$2.98

92152A

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92161

DAMPER

92161-1084

$1.89

92161A

DAMPER

92161-1531

$2.11

92161B

DAMPER,6X19X5.6

92161-1911

$0.76

92161C

DAMPER

92161-2612

$0.93

92161D

DAMPER

92161-2613

$2.03

92161E

DAMPER,18X345X3

92161-2637

$2.73

92161F

DAMPER,15X45X13

92161-2638

$3.85

92161G

DAMPER,20X250X10

92161-2648

$8.36

92161H

DAMPER,20X550X10

92161-2649

$20.49

92161I

DAMPER,25X130X10

92161-2714

$15.63

92161J

DAMPER,10X20X6

92161-2745

$2.49

92172

SCREW,6X16

92172-0236

$0.73

92172A

SCREW,6X16

92172-0284

$0.90

92172B

SCREW,TAPPING,6X16

92172-1470

$0.74

92173

CLAMP

92173-2863

$2.25

92200

WASHER

92200-2144

$1.22

92210

NUT,LOCK,FLANGED,6MM

92210-0303

$1.04

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X12

130BA0612

$1.25

130B

BOLT-FLANGED,6X18

130BA0618

$1.17

411

WASHER-PLAIN,10MM

411AA1000

$0.81
