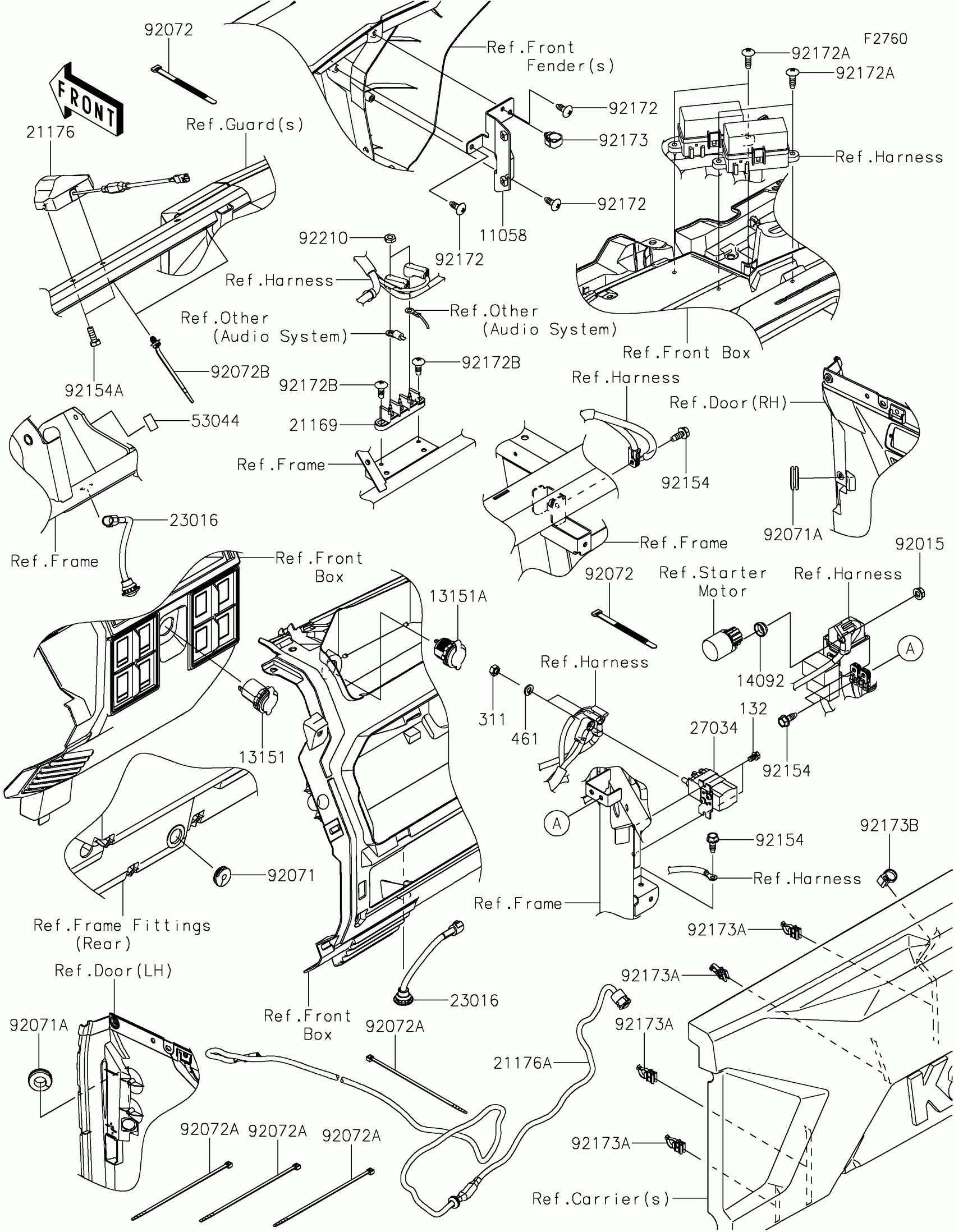

Kawasaki Ridge Limited Chassis Electrical Equipment Diagram

Description

Price

11058

BRACKET,TERMINAL

11058-1926

$14.90

13151

SWITCH-COMP,OUTLET,12V

13151-0556

$12.14

13151A

SWITCH-COMP,USB-SOCKET

13151-0601

$21.53

14092

COVER,MAGNETIC SW.

14092-0851

$1.93

21169

TERMINAL

21169-0571

$12.95

21176

SENSOR,FR CAMERA

21176-1196

$154.63

21176A

SENSOR,RR CAMERA

21176-1197

$137.21

23016

LAMP-ASSY,FLOOR

23016-0671

$20.10

27034

RELAY

27034-0020

$80.30

53044

TRIM,L=22

53044-7503

$7.83

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92071

GROMMET,8X22X8

92071-0753

$5.45

92071A

GROMMET

92071-0847

$2.50

92072

BAND,L=123

92072-030

$5.00

92072A

BAND

92072-0821

$7.90

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92154A

BOLT,FLANGED,6X14

92154-7323

$3.48

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,TAPPING,6X20

92172-0488

$3.02

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85

92173

CLAMP,HOLDER CLIP

92173-0868

$3.02

92173A

CLAMP

92173-2664

$5.13

92173B

CLAMP

92173-2665

$4.66

92210

NUT

92210-1680

$0.22

132

BOLT-FLANGED-SMALL,5X8

132BA0508

$1.71

311

NUT-HEX,6MM

311BA0600

$2.23

461

WASHER-SPRING,6MM

461DA0600

$0.71
