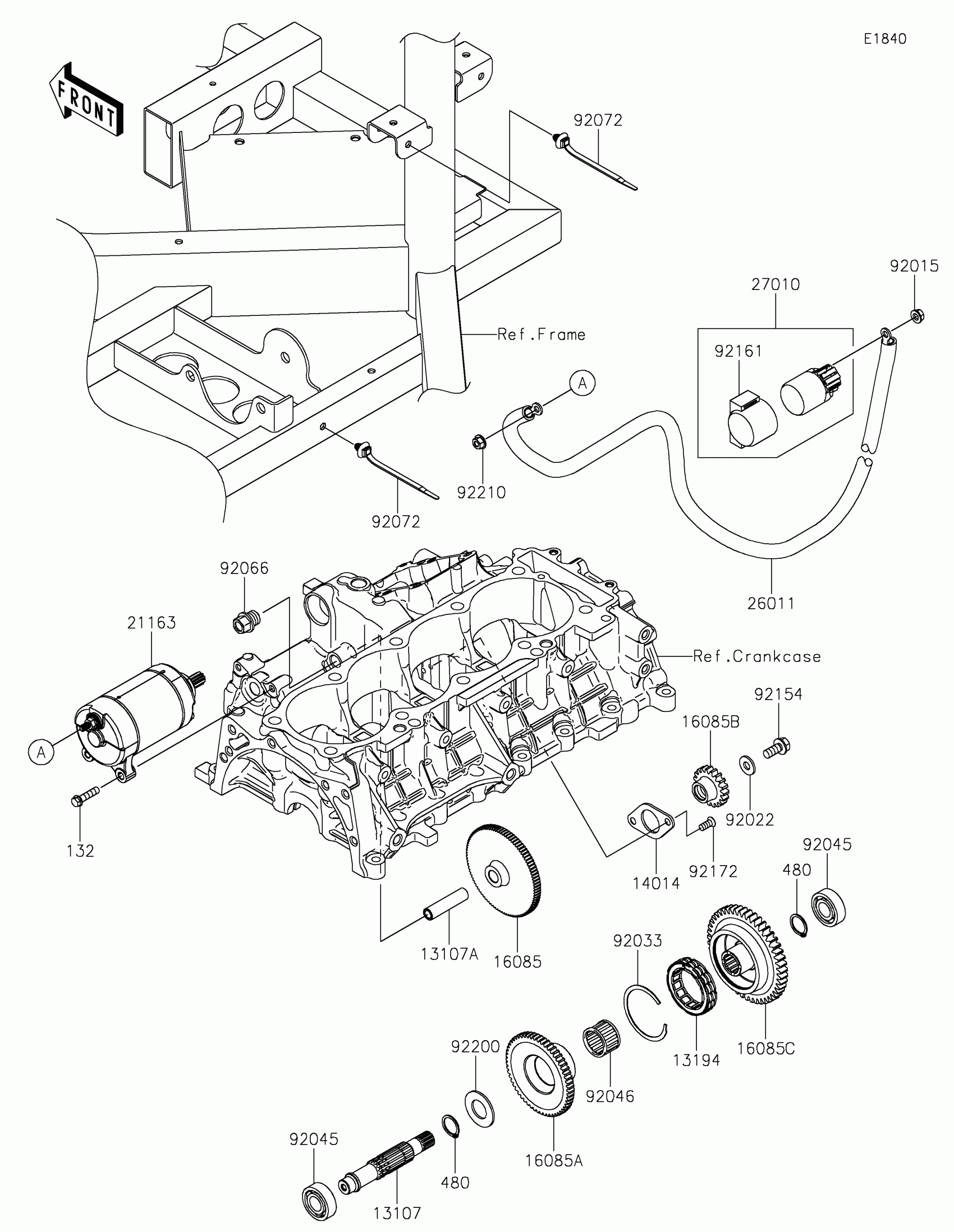

Kawasaki RIDGE® HVAC Starter Motor Diagram

#

Description
Price

13107

SHAFT

13107-0972

$140.74

13107A

SHAFT,LIMITER GEAR

13107-0973

$13.43

13194

CLUTCH-ONEWAY

13194-0027

$100.39

14014

PLATE-POSITION,COUNTER SHAFT

14014-0572

$19.45

16085

GEAR,LIMITER

16085-0731

$189.56

16085A

GEAR,LIMITER

16085-0733

$145.12

16085B

GEAR,PUMP-OIL

16085-0734

$152.45

16085C

GEAR,CRANKSHAFT

16085-0752

$190.09

21163

STARTER-ELECTRIC

21163-0806

$313.12

26011

WIRE-LEAD,STARTER-ELECTRIC

26011-2418

$142.85

27010

SWITCH,MAGNETIC

27010-0766

$127.72

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,8.2X19X2

92022-1533

$5.52

92033

RING-SNAP

92033-3731

$6.16

92045

BEARING-BALL,6202ZC3

92045-0785

$11.58

92046

BEARING-NEEDLE,RS263020

92046-0004

$24.31

92066

PLUG

92066-0998

$3.94

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92154

BOLT-FLANGED,8X16

92154-2670

$2.23

92161

DAMPER,MAGNETIC SWITCH

92161-1722

$19.64

92172

SCREW,TORX,6X14

92172-0961

$2.55

92200

WASHER,19.6X37.0X2.0

92200-2556

$8.58

92210

NUT,6MM

92210-0188

$2.15

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

480

CIRCLIP-TYPE-C,19MM

480J1900

$1.28
