2025 Kawasaki Ridge® Hvac Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2025 Kawasaki Ridge® Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

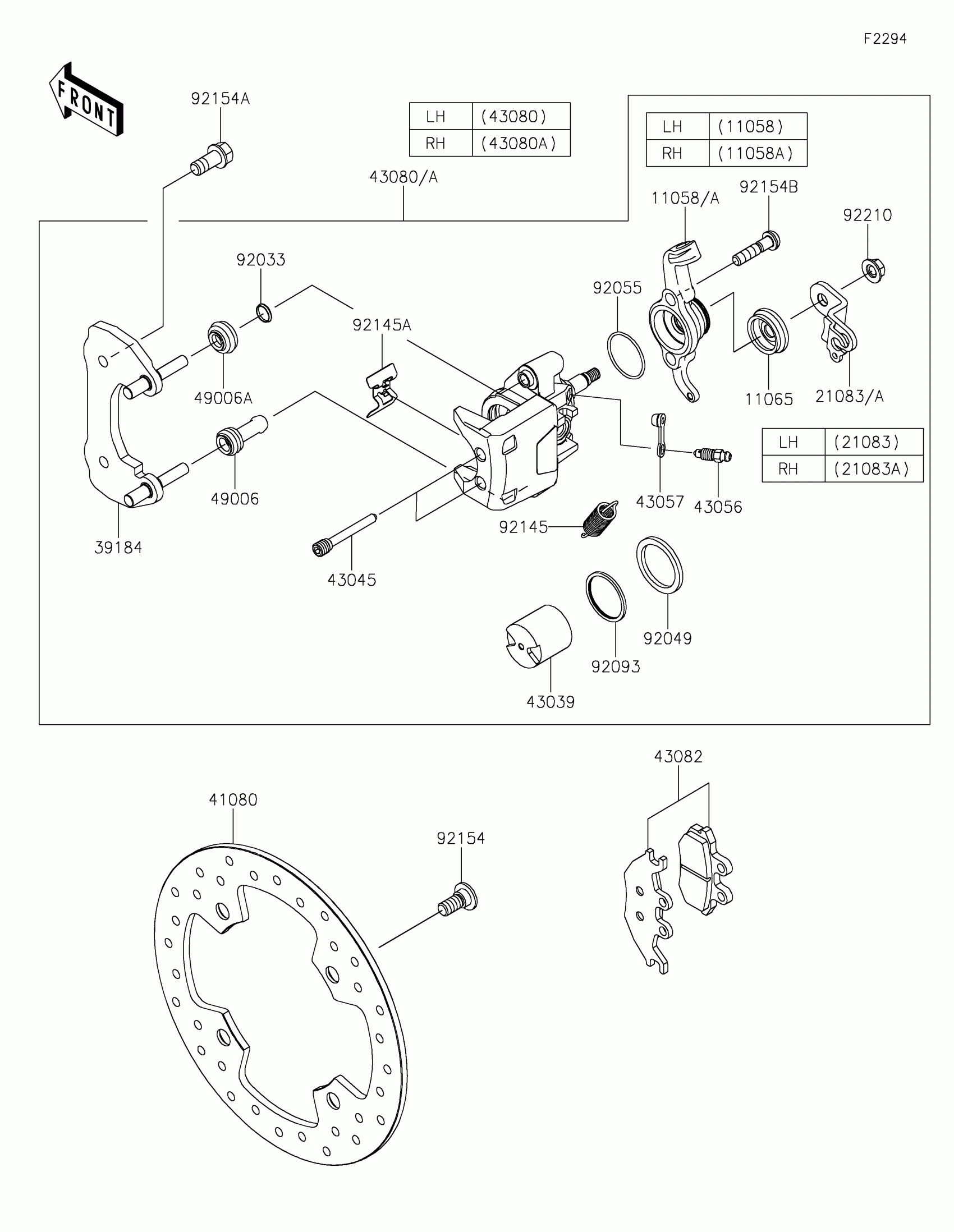

2025 Kawasaki Ridge® Hvac Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,CALIPER,RR,LH

11058-2318

1
Out of stock

11058A

BRACKET,CALIPER,RR,RH

11058-2319

1
Out of stock

11065

CAP

11065-0870

1
Out of stock

21083

ARM,BRAKE,RR,LH

21083-0771

1
Out of stock

21083A

ARM,BRAKE,RR,RH

21083-0772

1
Out of stock

39184

BRACKET-ASSY,RR

39184-0753

1
Out of stock

41080

DISC,BRAKE

41080-0746

1
Out of stock

43039

PISTON-BRAKE

43039-0027

1
Out of stock

43045

SHAFT-CALIPER

43045-Y002

1
Out of stock

43056

BREATHER-BRAKE

43056-0055

1
Out of stock

43057

CAP-BREATHER

43057-0552

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,LH

43080-0252

1
Out of stock

43080A

CALIPER-SUB-ASSY,RR,RH

43080-0253

1
Out of stock

43082

PAD-ASSY-BRAKE,RR

43082-0209

1
Out of stock

49006

BOOT

49006-0591

1
Out of stock

49006A

BOOT

49006-0592

1
Out of stock

92033

RING-SNAP

92033-0864

1
Out of stock

92049

SEAL-OIL

92049-0765

1
Out of stock

92055

RING-O

92055-0795

1
Out of stock

92093

SEAL

92093-0613

1
Out of stock

92145

SPRING,RETURN,47MM

92145-1690

1
Out of stock

92145A

SPRING,PAD

92145-2364

1
Out of stock

92154

BOLT,SOCKET,10X23

92154-0713

1
Out of stock

92154A

BOLT,FLANGED,10X22

92154-1327

1
Out of stock

92154B

BOLT,FLANGE,6X40

92154-Y228

1
Out of stock

92210

NUT

92210-2216

1
Out of stock
