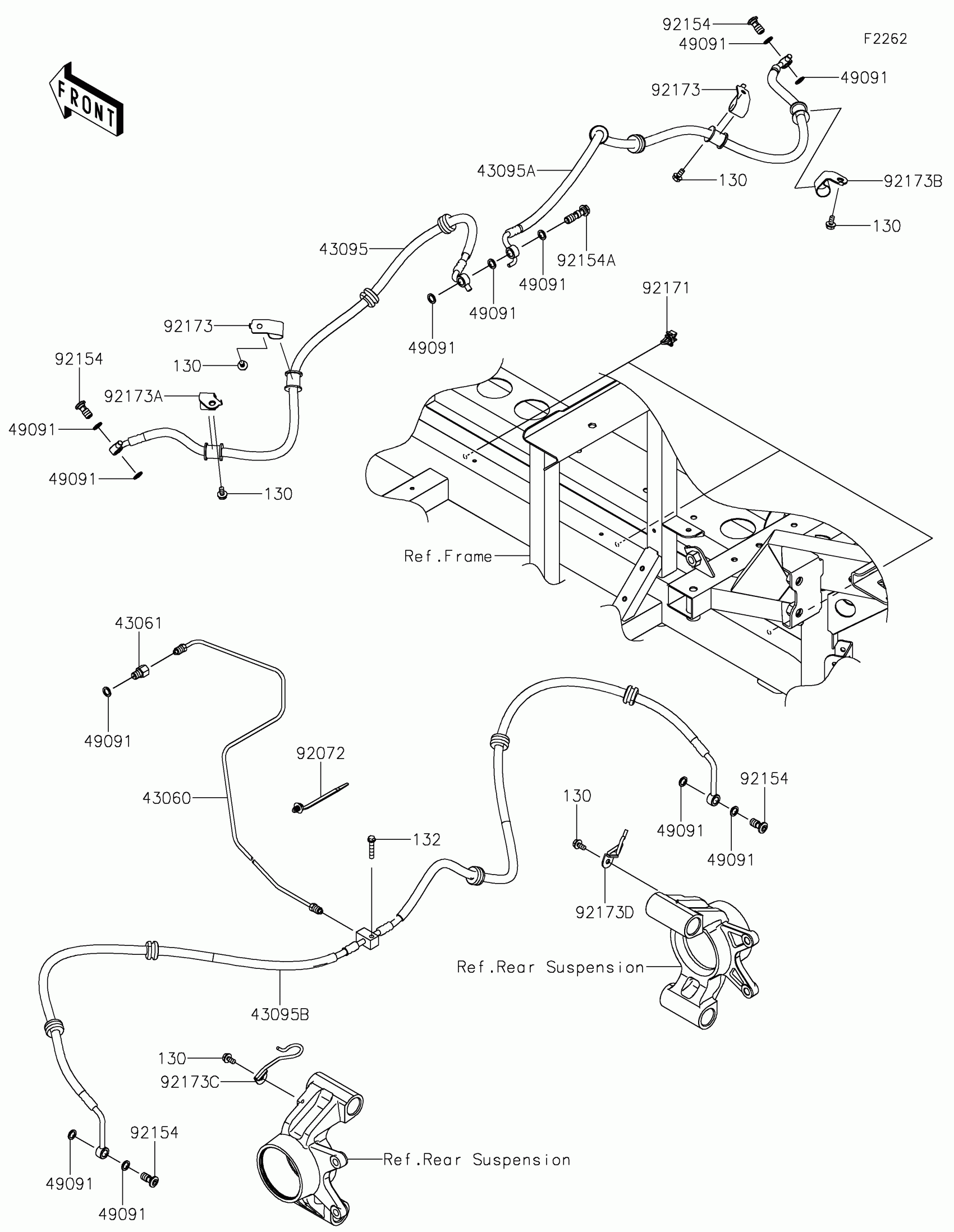

Find the part on the Brake Piping diagram for your 2025 Kawasaki Ridge® Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge® Hvac Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43060

PIPE-BRAKE,LH

43060-0366

1
Out of stock

43061

JOINT-BRAKE,M/C

43061-0302

1
Out of stock

43095

HOSE-BRAKE,921MM

43095-1875

1
Out of stock

43095A

HOSE-BRAKE,1072.5MM

43095-1876

1
Out of stock

43095B

HOSE-BRAKE

43095-1877

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92154

BOLT,HEXALOBULAR,10X21

92154-1328

1
Out of stock

92154A

BOLT,OIL,10X34.5

92154-1398

1
Out of stock

92171

CLAMP

92171-0805

1
Out of stock

92173

CLAMP

92173-1216

1
Out of stock

92173A

CLAMP

92173-2539

1
Out of stock

92173B

CLAMP

92173-2540

1
Out of stock

92173C

CLAMP

92173-2541

1
Out of stock

92173D

CLAMP

92173-2542

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$2.17

In stock
