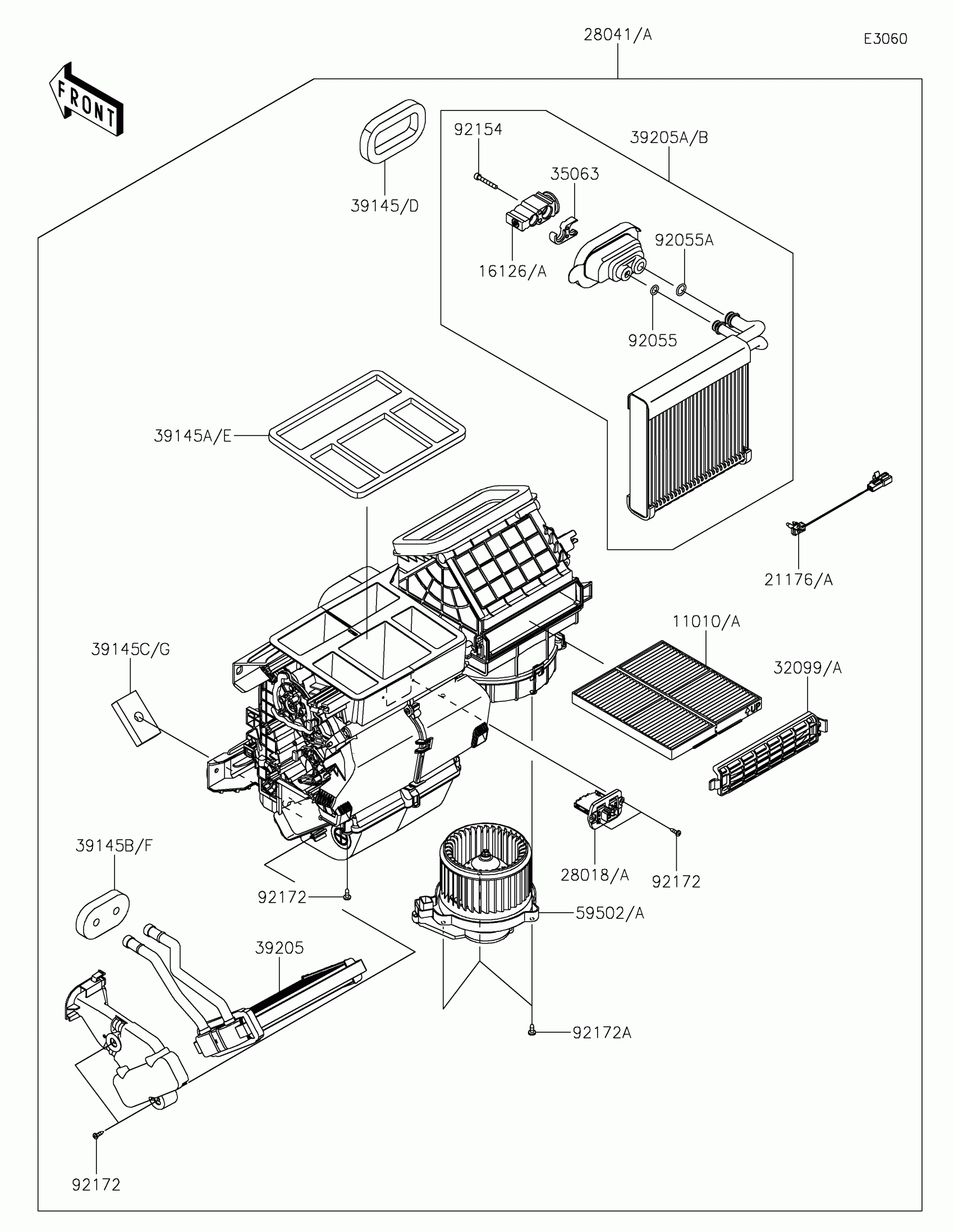

Kawasaki RIDGE® HVAC HVAC Unit Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1854

$45.45

11010A

FILTER-ASSY-AIR,HVAC

11010-1872

$45.45

16126

VALVE

16126-0778

$334.94

16126A

VALVE

16126-0780

$334.94

21176

SENSOR

21176-1233

$109.90

21176A

SENSOR,THERMISTOR

21176-1284

$109.90

28018

RESISTOR

28018-0008

$84.77

28018A

RESISTOR

28018-0015

$84.77

28041

AC-UNIT-ASSY

28041-0001

$2,491.38

28041A

AC-UNIT-ASSY

28041-0004

$2,491.38

32099

CASE

32099-0840

$33.67

32099A

CASE,AIR FILTER

32099-0851

$33.67

35063

STAY

35063-1649

$22.54

39145

TRIM-SEAL

39145-0792

$76.72

39145A

TRIM-SEAL

39145-0793

$47.83

39145B

TRIM-SEAL

39145-0794

$9.81

39145C

TRIM-SEAL

39145-0795

$37.42

39145D

TRIM-SEAL

39145-0814

$9.73

39145E

TRIM-SEAL

39145-0815

$47.83

39145F

TRIM-SEAL

39145-0816

$9.81

39145G

TRIM-SEAL

39145-0817

$5.13

39205

HEAT EXCHANGER

39205-0004

$393.72

39205A

HEAT EXCHANGER

39205-0005

$803.24

39205B

HEAT EXCHANGER

39205-0006

$803.24

59502

FAN-ASSY

59502-0653

$1,204.92

59502A

FAN-ASSY

59502-0654

$1,204.92

92055

RING-O

92055-1773

$4.29

92055A

RING-O

92055-1774

$5.80

92154

BOLT

92154-7701

$3.06

92172

SCREW

92172-1677

$1.60

92172A

SCREW

92172-1678

$1.60
