2025 Kawasaki Ridge® Hvac Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2025 Kawasaki Ridge® Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

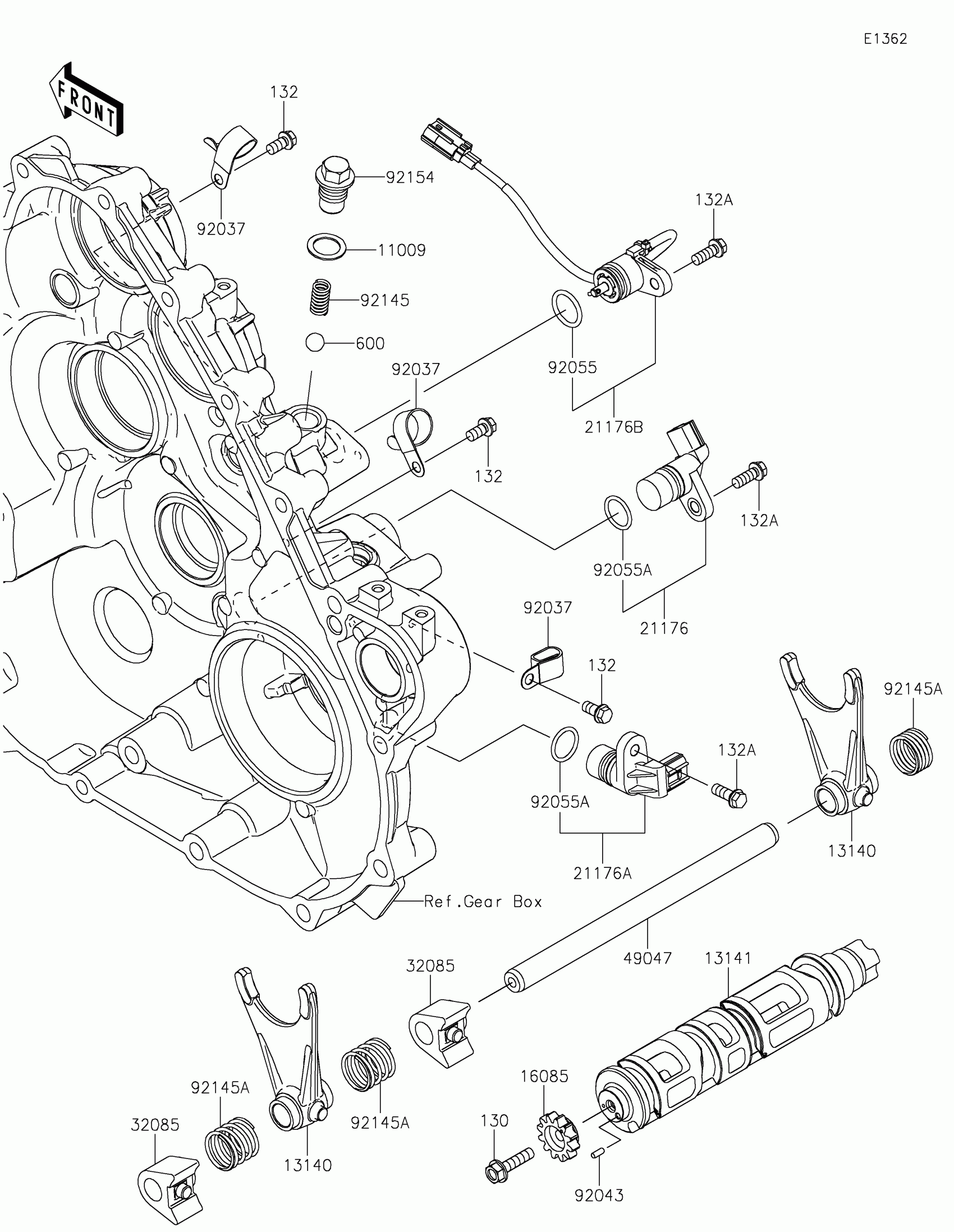

2025 Kawasaki Ridge® Hvac Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,15.5X22X1

11009-1008

1
Out of stock

13140

FORK-SHIFT

13140-0693

1
Out of stock

13141

DRUM-CHANGE

13141-0618

1
Out of stock

16085

GEAR,12T

16085-0738

1
Out of stock

21176

SENSOR,ROTATION

21176-0767

1
Out of stock

21176A

SENSOR,SPEED

21176-0891

1
Out of stock

21176B

SENSOR,GEAR POSITION

21176-1183

1
Out of stock

32085

STOPPER

32085-0901

1
Out of stock

49047

ROD-SHIFT

49047-0641

1
Out of stock

92037

CLAMP

92037-1993

1
Out of stock

92043

PIN,3X8

92043-1716

1
Out of stock

92055

RING-O

92055-0917

1
Out of stock

92055A

RING-O

92055-1639

1
Out of stock

92145

SPRING

92145-1590

1
Out of stock

92145A

SPRING

92145-2315

1
Out of stock

92154

BOLT,CHANGE POSITION

92154-1366

1
Out of stock

130

BOLT-FLANGED,6X25

130CA0625

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BA0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

1
Out of stock

600

BALL-STEEL,13/32"

600A1300

1
Out of stock
