2025 Kawasaki Ridge® Hvac Drive Shaft-Front Diagram

← All diagrams

Find the part on the Drive Shaft-Front diagram for your 2025 Kawasaki Ridge® Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

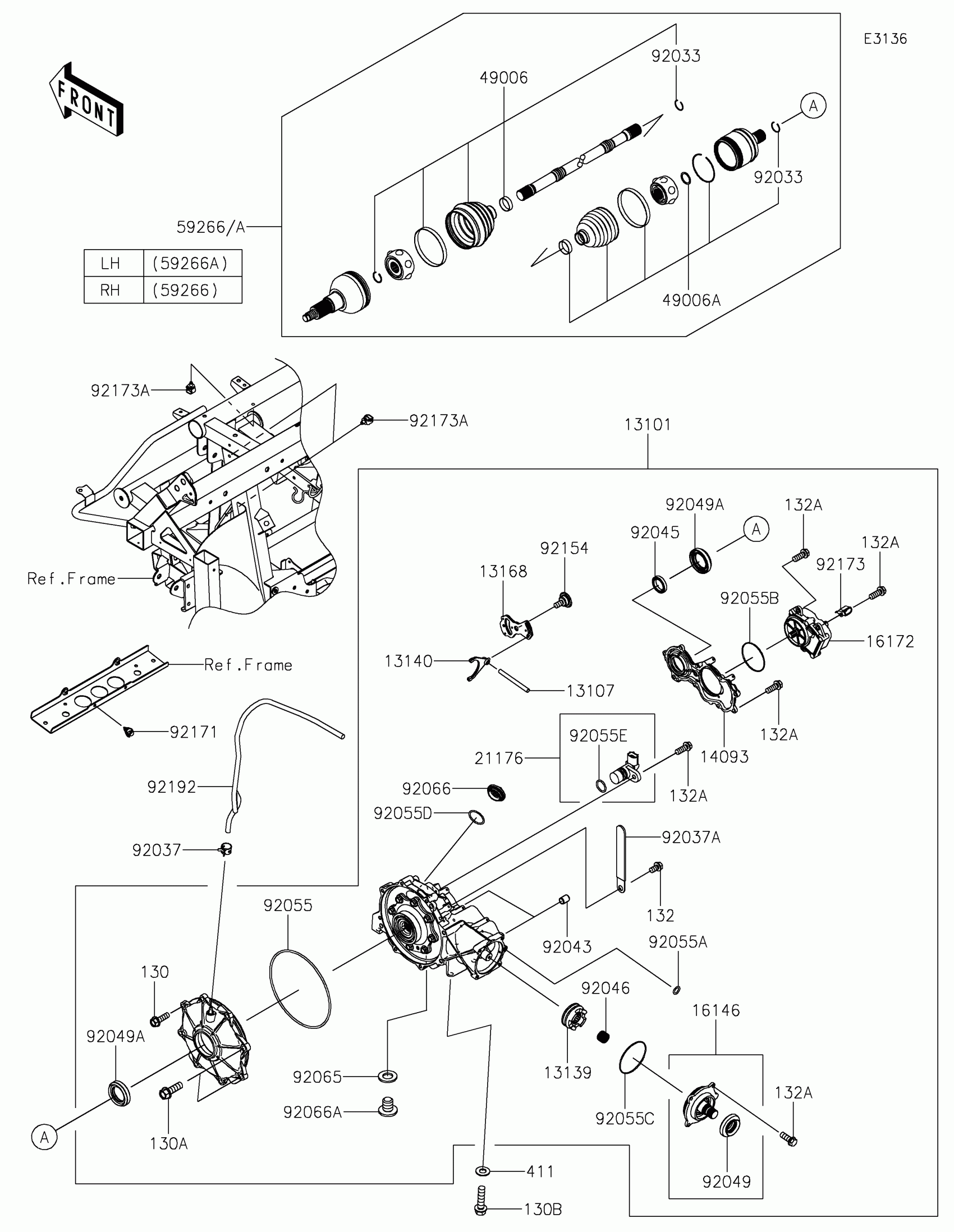

2025 Kawasaki Ridge® Hvac Drive Shaft-Front Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13101

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0727

1
Out of stock

13107

SHAFT

13107-0887

1
Out of stock

13139

SHIFTER

13139-0039

1
Out of stock

13140

FORK-SHIFT

13140-0675

1
Out of stock

13168

LEVER

13168-0920

1
Out of stock

14093

COVER,RH

14093-0707

1
Out of stock

16146

COVER-ASSY,INPUT SHAFT

16146-0740

1
Out of stock

16172

ACTUATOR

16172-0030

1
Out of stock

21176

SENSOR,SPEED

21176-0891

1
Out of stock

49006

BOOT,OUTSIDE

49006-0655

1
Out of stock

49006A

BOOT,INSIDE

49006-0656

1
Out of stock

59266

JOINT-BALL,RH

59266-0777

1
Out of stock

59266A

JOINT-BALL,LH

59266-0778

1
Out of stock

92033

RING-SNAP

92033-0837

1
Out of stock

92037

CLAMP,TUBE

92037-1505

1
Out of stock

92037A

CLAMP

92037-1993

1
Out of stock

92043

PIN,DOWEL,8X10

92043-1302

1
Out of stock

92045

BEARING-BALL,6806

92045-0826

1
Out of stock

92046

BEARING-NEEDLE

92046-1234

1
Out of stock

92049

SEAL-OIL

92049-0160

1
Out of stock

92049A

SEAL-OIL,TC9Y 40X62X10X17.2

92049-0815

1
Out of stock

92055

RING-O,190.2X4.2

92055-0121

1
Out of stock

92055A

RING-O,7.5X1.5

92055-0756

1
Out of stock

92055B

RING-O,1.9X71.8

92055-0781

1
Out of stock

92055C

"O" RING

92055-081

1
Out of stock

92055D

RING-O,35.8MM

92055-1281

1
Out of stock

92055E

RING-O

92055-1639

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,36X7.5

92066-0744

1
Out of stock

92066A

PLUG,12X15

92066-0943

1
Out of stock

92154

BOLT

92154-4462

1
Out of stock

92171

CLAMP,13MM DIA.

92171-1415

1
Out of stock

92173

CLAMP

92173-0059

1
Out of stock

92173A

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92192

TUBE,5.8X10.8X940

92192-2805

1
Out of stock

130

BOLT-FLANGED,8X25

130CA0825

1

$1.31

In stock

130A

BOLT-FLANGED,10X30

130CA1030

1

$1.93

In stock

130B

BOLT-FLANGED,10X40

130CA1040

1

$2.29

In stock

132

1

$1.47

In stock

132A

1

$1.21

In stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock
