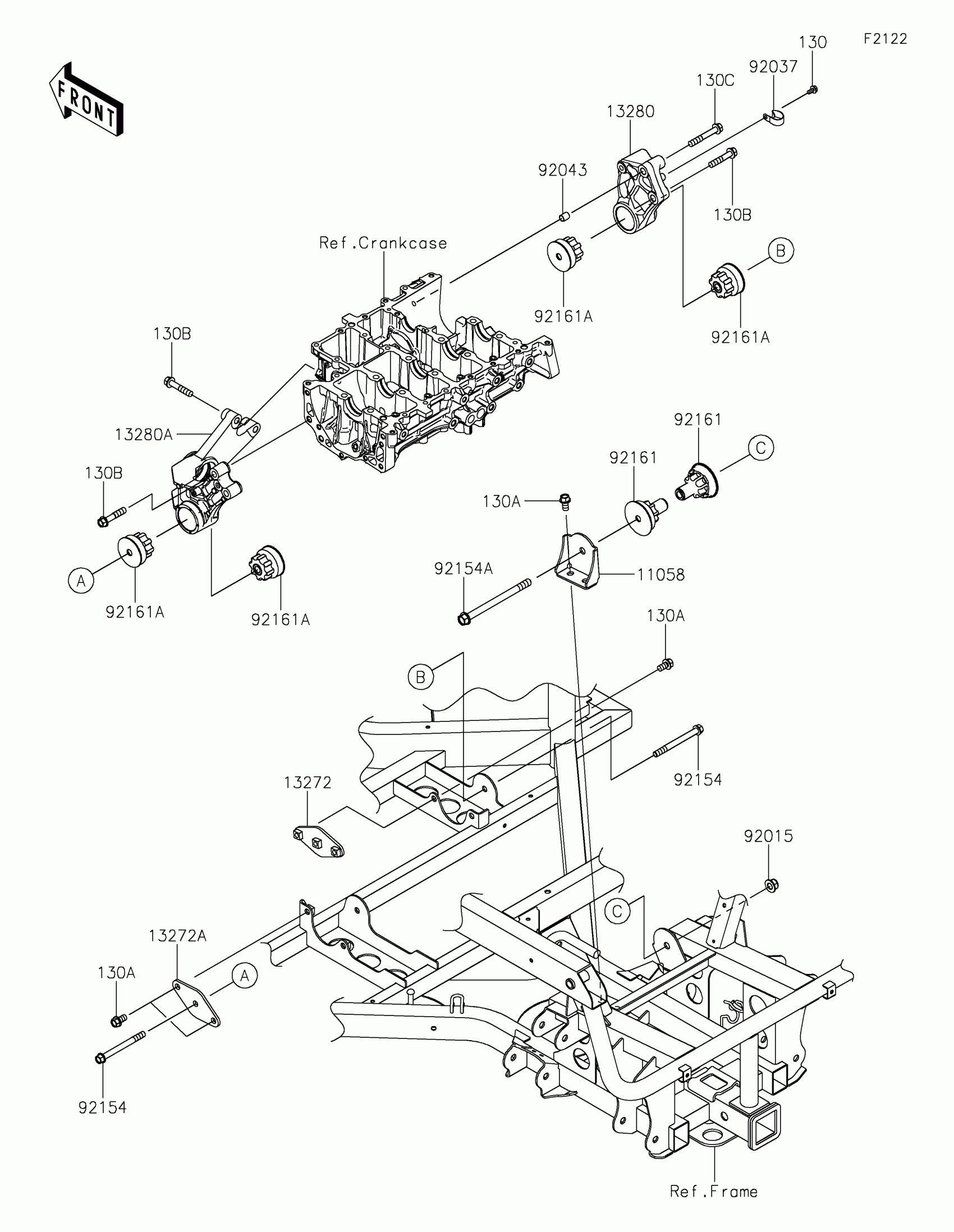

Kawasaki RIDGE® HVAC Engine Mount Diagram

Description

Price

11058

BRACKET,MOUNT ENGINE,RR

11058-0118

$27.01

13272

PLATE,MOUNT ENGINE,RH

13272-4071

$17.53

13272A

PLATE,MOUNT ENGINE,LH

13272-4202

$6.48

13280

HOLDER,RH

13280-1350

$121.63

13280A

HOLDER,LH

13280-1407

$230.60

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92037

CLAMP

92037-1993

$5.52

92043

PIN,10.1X12X14

92043-4009

$6.22

92154

BOLT,FLANGED,10X105

92154-1132

$7.60

92154A

BOLT,FLANGED,12X160

92154-3916

$19.50

92161

DAMPER

92161-2171

$38.97

92161A

DAMPER

92161-2485

$46.00

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,10X18

130CA1018

$2.49

130B

BOLT-FLANGED,10X50

130CA1050

$3.71

130C

BOLT-FLANGED,10X65

130CA1065

$2.39
