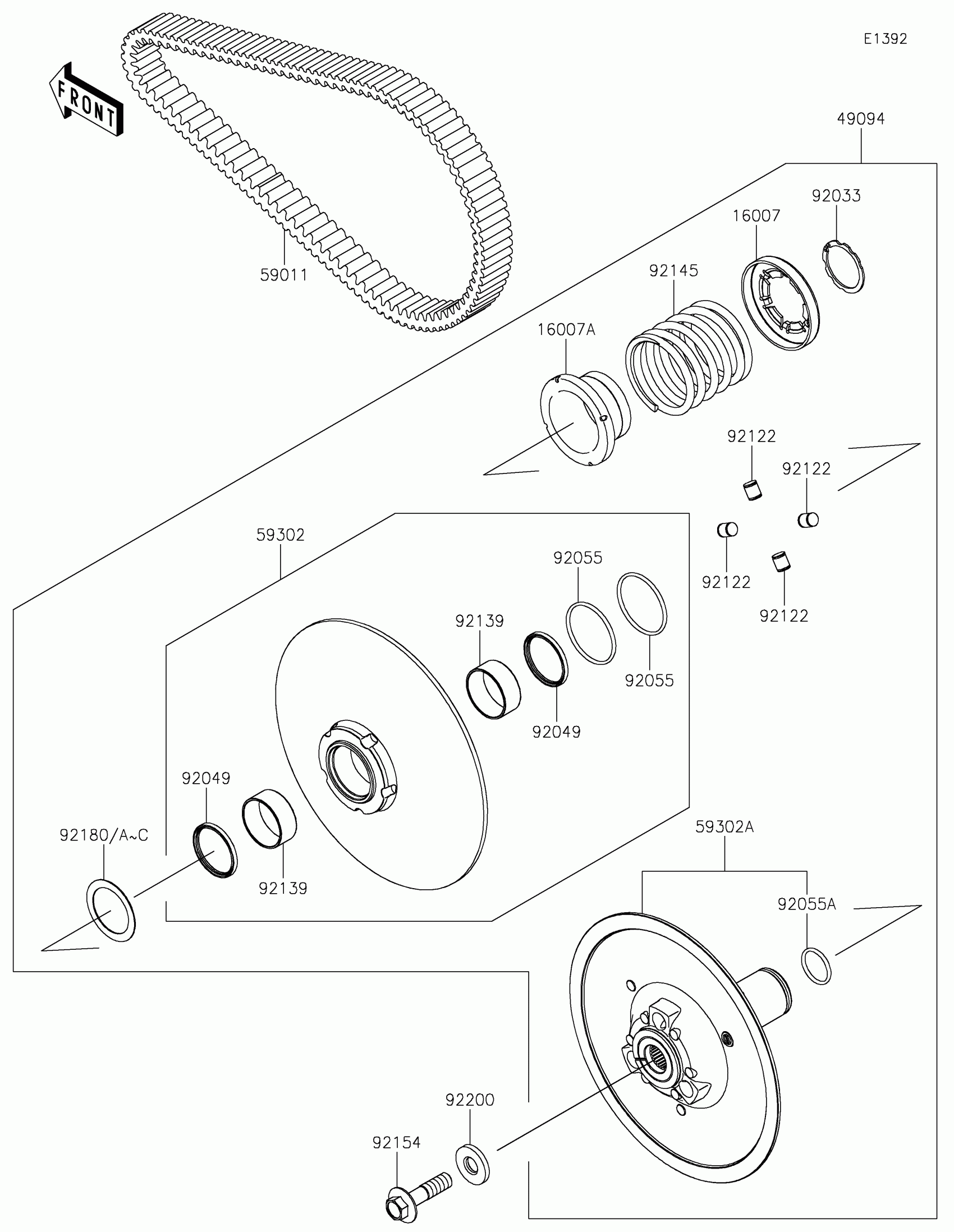

Kawasaki RIDGE® HVAC Driven Converter/Drive Belt Diagram

Description

Price

16007

SEAT-SPRING,FIXED

16007-0755

$19.32

16007A

SEAT-SPRING,MOVABLE

16007-0786

$35.23

49094

CONVERTER-ASSY-DRIVEN

49094-0114

$818.46

59011

BELT,CVT

59011-0065

$228.98

59302

SHEAVE-COMP,DRIVEN MOVABLE

59302-0116

$321.29

59302A

SHEAVE-COMP,DRIVEN FIXED

59302-0121

$512.05

92033

RING-SNAP,41.5MM

92033-0801

$2.55

92049

SEAL-OIL,GD45X52X4 V1

92049-0821

$13.30

92055

RING-O,54.4X3.1

92055-0924

$4.39

92055A

RING-O,29X3.1

92055-0926

$4.08

92122

ROLLER

92122-0571

$27.12

92139

BUSHING

92139-0936

$28.67

92145

SPRING

92145-2282

$81.53

92154

BOLT,14X55

92154-3920

$20.86

92180

SHIM,T=1.0

92180-1661

Unavailable

92180A

SHIM,T=1.2

92180-1662

Unavailable

92180B

SHIM,T=1.6

92180-1663

Unavailable

92180C

SHIM,T=0.3

92180-1667

Unavailable

92200

WASHER

92200-2389

$9.47
