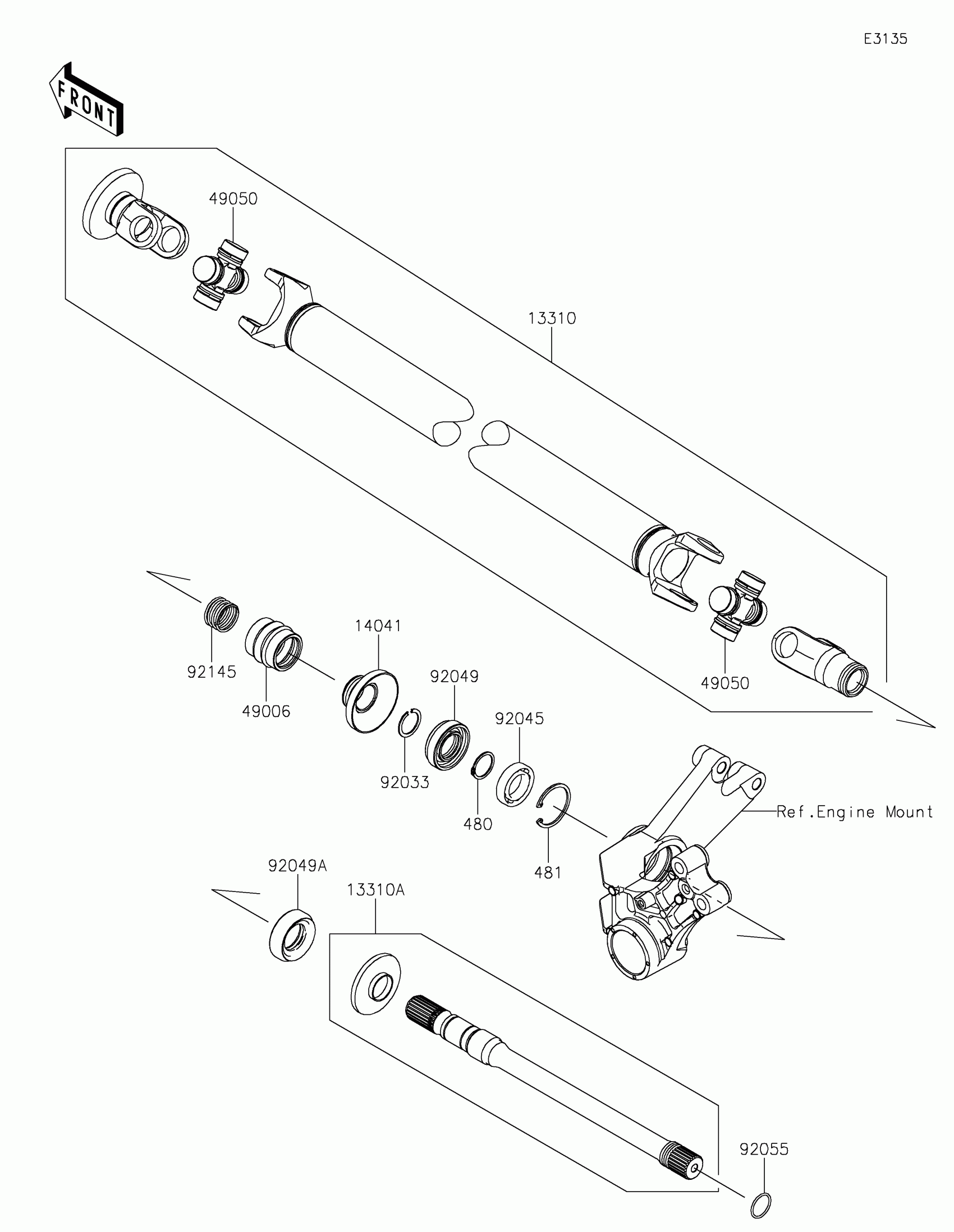

Kawasaki RIDGE® HVAC Drive Shaft-Propeller Diagram

Description

Price

13310

SHAFT-ASSY

13310-0579

$509.32

13310A

SHAFT-ASSY

13310-0580

$78.11

14041

COVER-COMP

14041-0631

$8.36

49006

BOOT

49006-0646

$3.33

49050

SPIDER

49050-0034

$110.37

92033

RING-SNAP,24MM

92033-026

$8.79

92045

BEARING-BALL,#6905

92045-036

$27.88

92049

SEAL-OIL,TC9Y 25X48X10X17.2

92049-0817

$12.51

92049A

SEAL-OIL,TC9Y 28X50X10X17.2

92049-0818

$12.51

92055

RING-O,22.1X1.9

92055-1617

$2.67

92145

SPRING

92145-1838

$4.33

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

481

CIRCLIP-TYPE-C,42MM

481J4200

$6.16
